2.0 Mega Pixel 30x Zoom IP Camea Speed Dome PTZ Camera

FOB Price

US$ 10 - 200 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

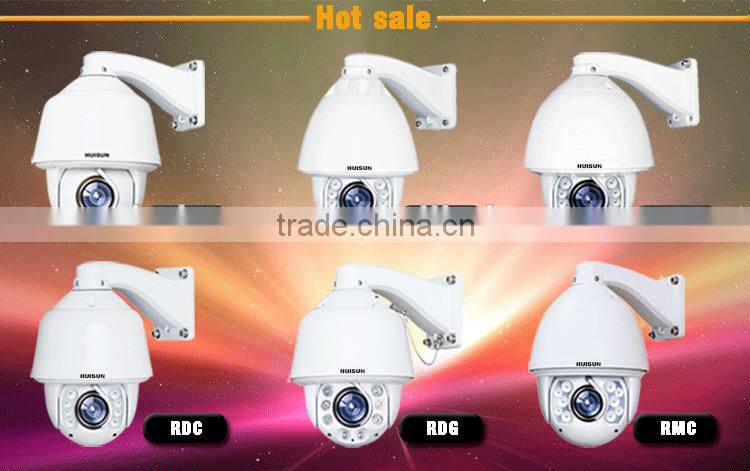

Hot-sale Products:

Main Features:

u First Patent of Out Cool Air Circulation to Sink the Heat Technology.(Patent No.ZL201220269676.7)

u First Patent of Video Analysis Light-adjustment Technology.(Patent No.201110089768.7)

u The Highly power array LEDs with IR range up to 180 meters.

u Unique composite lens design, to enhance the effect of night vision.

u Patent external wiper design, to make sure the HD image is clearer all day.(Optional configuration).

u Built in power with wall mounted bracket design, making it more convenient for maintenance on site.

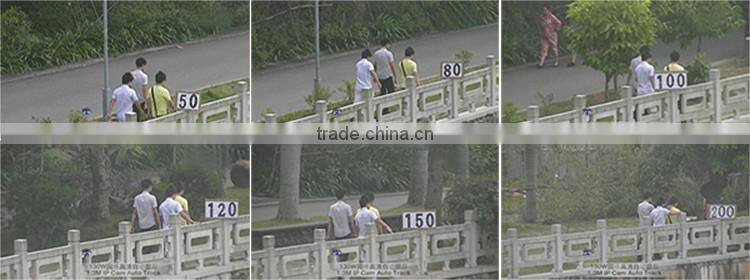

u Auto tracking function for unman surveillance.

Apperance Design Details:

Internal Details:

Technical parameters
Model	RMC228FIT-G-S30IA-W1
Sensor	1/3”
Effective pixels	2.0 mega Pixels
Focus length	Optical 30x Zoom
communication protocol	PAL/NTSC
Day/night mode	Automatic/multicolour/monochroma
Focus mode	Automatic/manual
S/N	> 50dB
BLC	0 ~ 20
White banlance	Automatic/manual
Electronic shutter	Off / On (Max 42dB)
AGC	Auto / Shutter PRI / Iris PRI / Manual
Min illumination	N/O
Video input	Connector
Infrared lamp
IR distance		180 meters
IR lamp		The high power Arrany LEDs with IR
IR power		16 w
IR Lens		Combination lens
Dome
Pan speed		Pan speed 0.01°/s~360°/s
Tilt speed		Tilt speed 0.01°/s~120°/s
Rotation		Pan :0~90° continuous rotation tilt:-10~90° auto flip
Preset		256 preset (chinese tilt)
Auto scan		8 groups, settable boundaries and scan speed
Auto cruise		8 groups each with 32 presets with settable time interval
Pattern tour		4 groups each with 500 instructions
Video analysis		support
Auto track		yes
Packaged structure with		no
Timing Action		RTC clock design for timing events during the whole week
Wiper		yes
Power box		optional
Heat dispersion		Out Cool Air Circulation to Sink the Heat Technology
Supply voltage		9V to 15V DC
Levels of protection		IP66/Level2 lightness protection,4000w prvent thunderbolt surges design
Working temperature		-20 ~ +60 (Humidity : 20%RH ~ 95%RH)
Working humidity		<90% No condensation
Consumption		Max 35W
Weight		6.5kg
Accessory		Wall -mount bracket DC 12 Power

Installation Method:

Core Technology

Visual Effects
