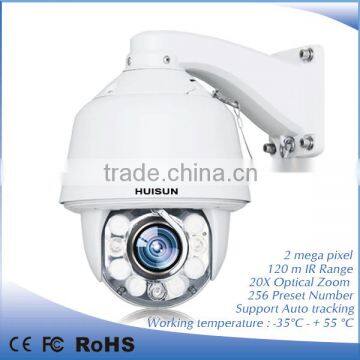

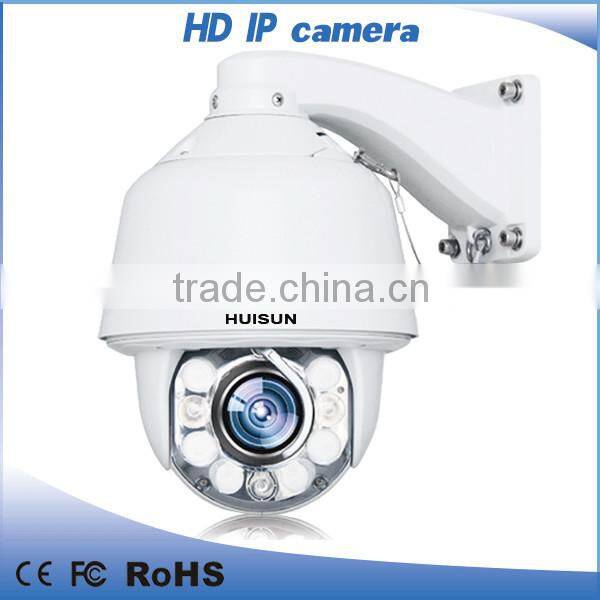

2.0 Megapixel Outdoor IP PTZ Camera IP66 1080P High Speed Dome Camera

Model

RDA216FIPT-G-WN20IB-W1

Camera

Image Sensor

1/3" Panasonic New Generation CMOS

Resolution

Digital:1920x1080(1080p/30fps)

Active Pixels

1944x1092

Lens

F/1.6~3.5      f=4.7-94mm

Zoom

Optical Zoom:20x      Digital Zoom:32x

Minimum Illumination

Color:0.5lux                B/W:0.1lux

White Balance

Auto/Manual

Focus

Auto/Manual

Day/Night

ICR (Auto/Day/Night)

Signal/Noise Ratio

>50dB

Dome

Pan Range

0~360° continuous

Pan Speed

0.01~360º/s

Tilt Speed

0.01~120º/s

Tilt Range

-10~90º

Preset Number

256

Auto Cruise

8 Routes

Pattern

4 Routes

Auto Track

YES

Auto Scan

8 Routes Settable Boundaries and Speed

Video Analysis

YES

OSD Menu

PTZ, Temp and Status Information Display

Privacy Zone

On / Off  Selectable (Up to 8 areas setting)

Aluminum alloy Wiper

YES

Protocol

Pelco-P, Pelco-D

Network

Max Image Resolution

1920×1080

Image Compression

H.264 encoding with Baseline/Main/High profile

Audio Compression

G.711/G.726

Security Measures

User authentication

Network Protocol

TCP/IP, HTTP, DHCP, DNS, DDNS,SNMP, FTP, UPNP

IR LED

IR Distance

120M

IR LED

3rd Generation IR LED

General

Power Consumption

<38W

Power Supply

DC 12V

Ingress Protection

IP66

Working Temperature

Outdoor:-35º~ +55º

Operation Humidity

<95% Non Condensing

Weight

5.8kg

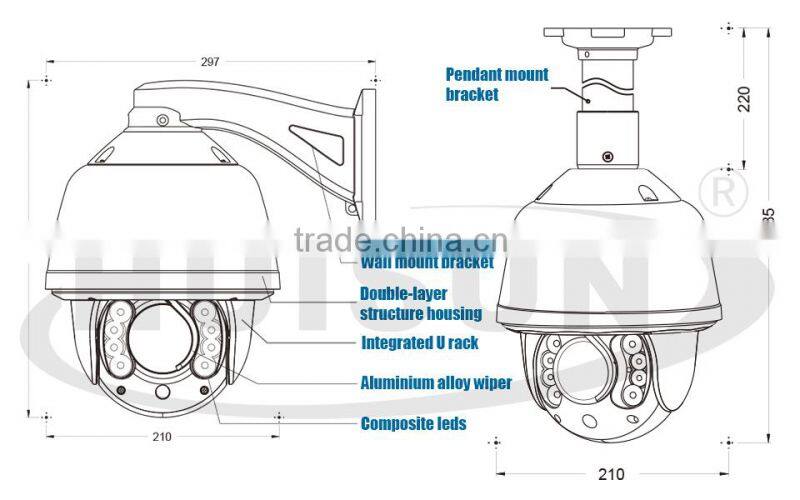

Mount Type

Wall/Ceiling
