5 INCH High Speed Dome Camera, Intelligent CMOS IP Speed Dome Camera

5 INCH High Speed Dome Camera, Intelligent CMOS IP Speed Dome Camera thumbnail-1
5 INCH High Speed Dome Camera, Intelligent CMOS IP Speed Dome Camera thumbnail-2
5 INCH High Speed Dome Camera, Intelligent CMOS IP Speed Dome Camera photo-1

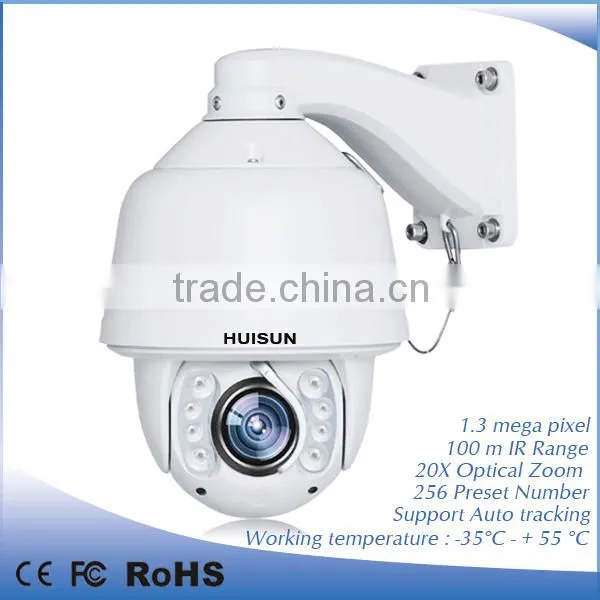

5 INCH High Speed Dome Camera, Intelligent CMOS IP Speed Dome Camera photo-2
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
China-HUISUN
Model Number:
RDC205FIPT-K20IA-W1
Contact Supplier Request Quote Chat Now
Shenzhen HUISUN Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name China-HUISUN
Model Number RDC205FIPT-K20IA-W1
Type Analog Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

5 INCH high speed dome camera, intelligent CMOS IP speed dome camera
with wiper,IP66 Protection level
256 Preset Number
2 MP

  5 INCH high speed dome camera, intelligent CMOS IP speed dome camera

5 INCH high speed dome camera, intelligent CMOS IP speed dome camera

Product Description



pecification:



Product name

  5 INCH high speed dome camera, intelligent CMOS IP speed dome camera

Model

RDC205FIPT-K20IA-W1

Sensor

1/4" SONY Sensor EXview HAD CCD

Effective pixels

1.3 Mega Pixel

Focus length

F1.6-F3.5

communication protocol

PAL/NTSC

Day/night mode

Automatic/multicolour/monochroma

Focus mode

Automatic/manual

S/N

> 50dB

BLC

Off/ON

White banlance

Automatic/manual

Electronic shutter

1/25/ (1/30) --1/10000

AGC

<16dB

Min illumination

Color:0.05lux,black:0.01lux

Video input

YUV4:2:2

Infrared lamp

IR distance

100 meters

IR lamp

The high power Arrany LEDs with IR

IR power

16 w

IR Lens

Combination lens

Dome

Pan speed

Pan speed 0.01°/s~120°/s,speed is settable, pan preset speed220°/s

Tilt speed

Tilt speed 0.01°/s~100°/s,speed is settable,pan preset speed100°/s

Rotation

Pan :0~360° continuous rotation tilt:-10~360° auto flip

Preset

256 preset (chinese tilt)

Auto scan

8 groups, settable boundaries and scan speed

Auto cruise

8 groups each with 32 presets with settable time interval

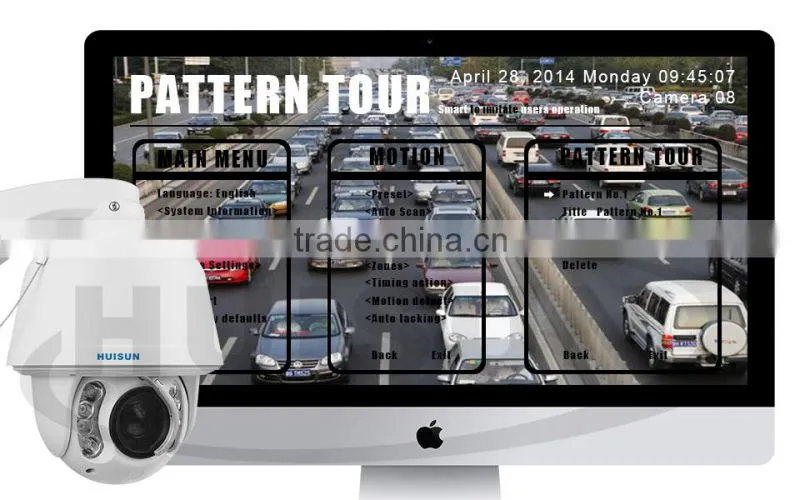

Pattern tour

4 groups each with 500 instructions

Video analysis

support

Auto track

yes

Packaged structure with

no

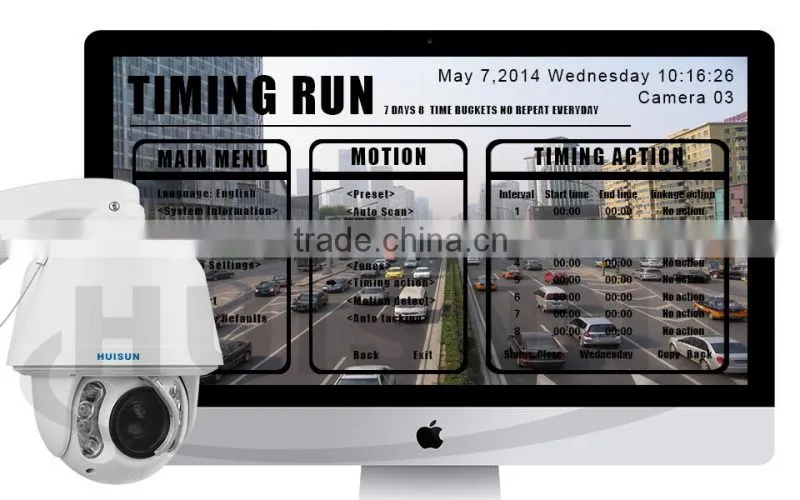

Timing Action

RTC clock design for timing events during the whole week

Wiper

yes

Power box

optional

Heat dispersion

Out Cool Air Circulation to Sink the Heat Technology

Supply voltage

DC6-12v

Levels of protection

IP66/Level2 lightness protection,4000w prvent thunderbolt surges design

Working temperature

0°C - + 55 °C

Working humidity

<90% No condensation

Consumption

Max 35W

Weight

4.8 kg

Accessory

Wall -mount bracket DC 12 Power







Funcation of  5 INCH high speed dome camera, intelligent CMOS IP speed dome camera

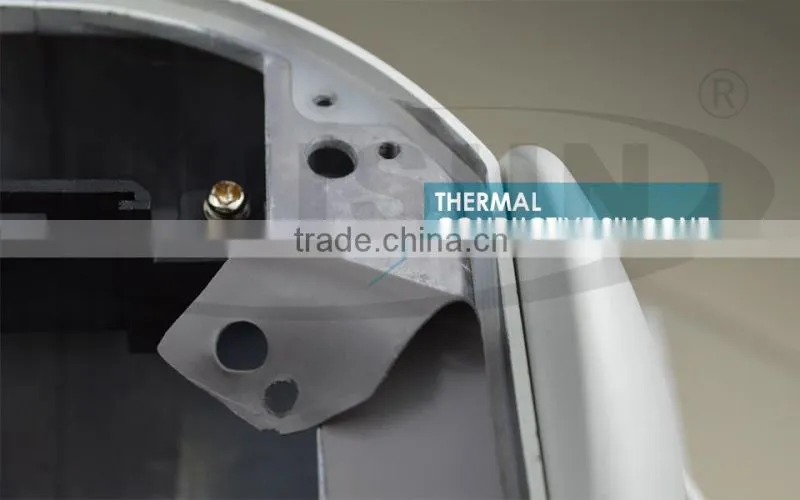

1.First patent of built -in heat sinking technology. (patent no :ZL201220269676.7)



2.First patent of video analysis light- adjustment technology.



3.The high power arrany LEDs with IR range up to 100 meters.



4.Unique composite lens design, to enhance the effect of night vision.



6.Unique composite lens design, to enhance the effect of night vision.



7 .OSD menu in Chinese and English system, build-in level 2 font.



8. Built-in 8 cruise tracks and 4 pattern tours.



9. Power supply box outdoor design,making it more convenient for maintenance on site(Optional configuration).



10 .IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design.



11 .Built in power with wall mounted bracket design, making it more convenient for maintenance on site.



12.Auto tracking funcation for unman surveillance.

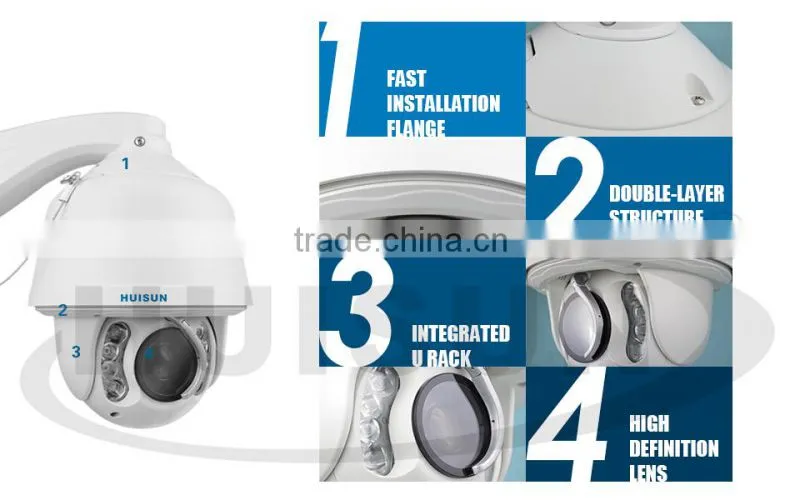

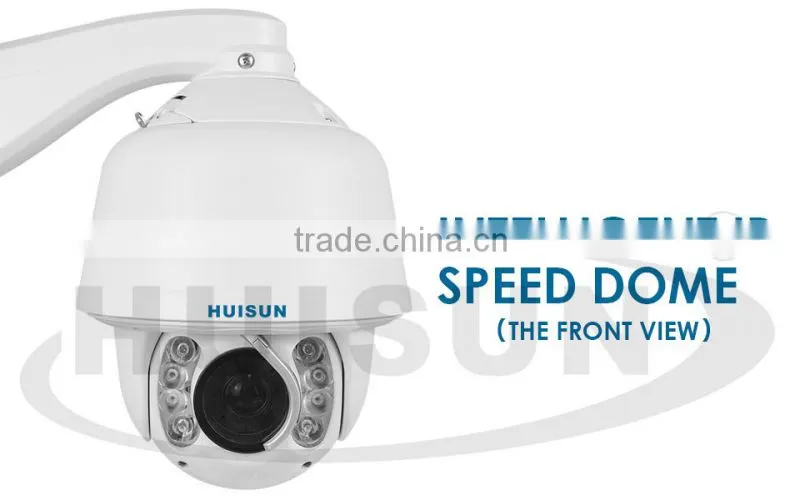

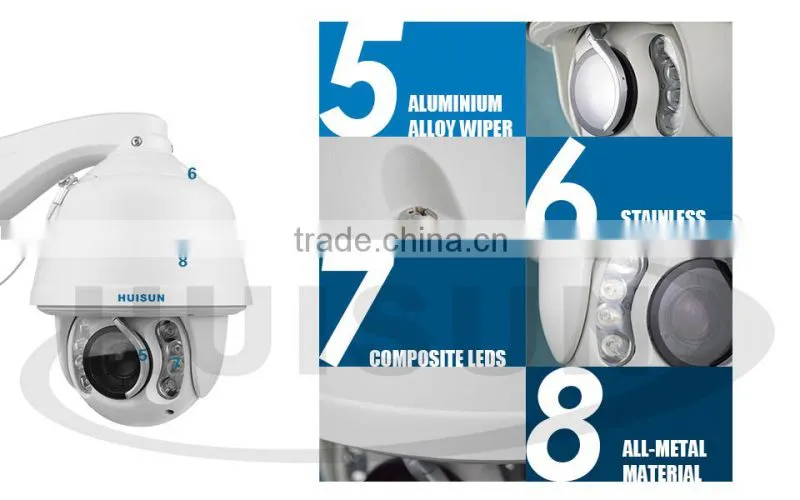

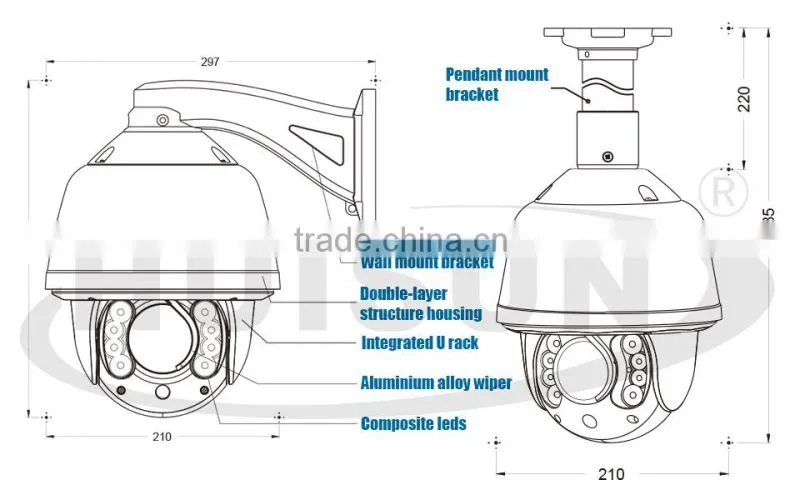

Appearance Design Detail :



5 INCH high speed dome camera, intelligent CMOS IP speed dome camera



5 INCH high speed dome camera, intelligent CMOS IP speed dome camera



How to install



5 INCH high speed dome camera, intelligent CMOS IP speed dome camera

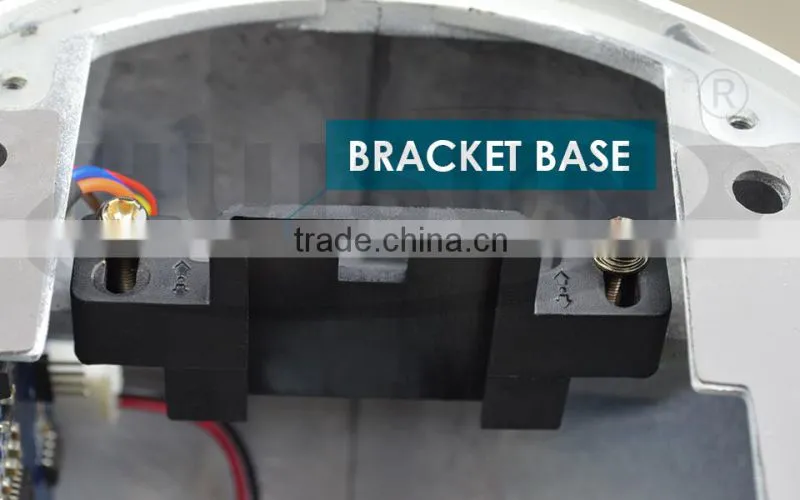

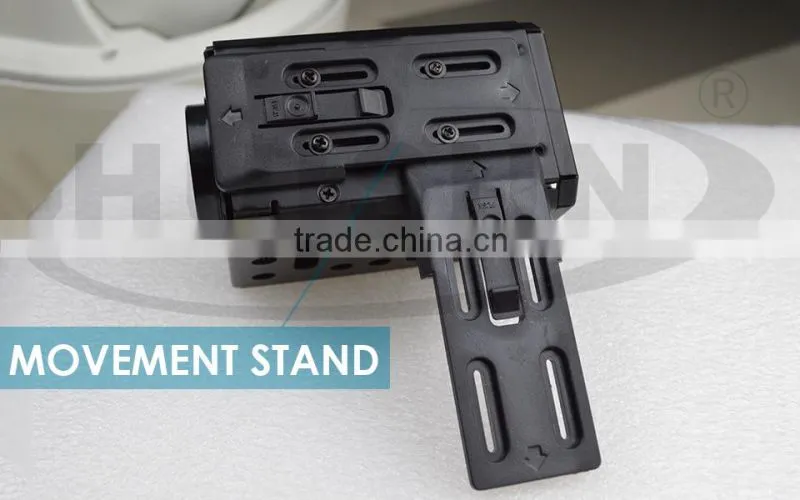

Inner detail



5 INCH high speed dome camera, intelligent CMOS IP speed dome camera5 INCH high speed dome camera, intelligent CMOS IP speed dome camera5 INCH high speed dome camera, intelligent CMOS IP speed dome camera







Core feature



5 INCH high speed dome camera, intelligent CMOS IP speed dome camera5 INCH high speed dome camera, intelligent CMOS IP speed dome camera5 INCH high speed dome camera, intelligent CMOS IP speed dome camera5 INCH high speed dome camera, intelligent CMOS IP speed dome camera5 INCH high speed dome camera, intelligent CMOS IP speed dome camera

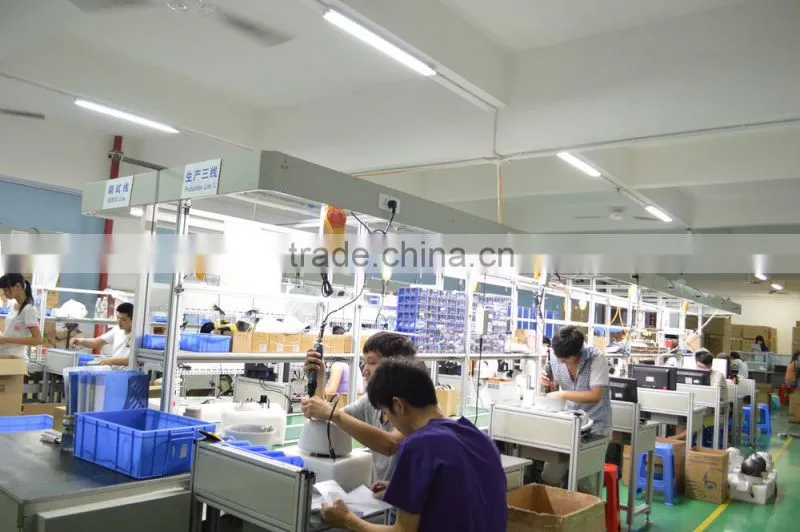

Company Information



5 INCH high speed dome camera, intelligent CMOS IP speed dome camera5 INCH high speed dome camera, intelligent CMOS IP speed dome camera











Packaging & Shipping



Shipping of  5 INCH high speed dome camera, intelligent CMOS IP speed dome camera


1.We have strong cooperation with  UPS,  DHL,  FEDEX,  TNT,  EMS , China Air Post.

 2.You can also choose your own shipping forwarder

Our Services

  We have rich OEM experience. If you are our customers, you will be offered:

1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
