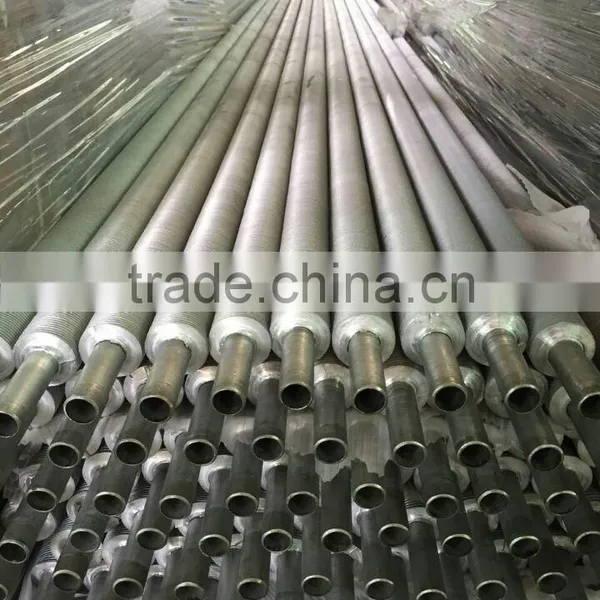

Heater Parts Application Fin Tube Type Heat Exchange Sprally Wound Finned Tubes and Fin Tube photo-4
Heater Parts Application Fin Tube Type Heat Exchange Sprally Wound Finned Tubes and Fin Tube photo-5
Heater Parts Application Fin Tube Type Heat Exchange Sprally Wound Finned Tubes and Fin Tube photo-6
US$ 100 - 10,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GELE
Model Number:
SRZ
Contact Supplier Request Quote Chat Now
Guangzhou Gele Heat Energy Equipment Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GELE
Model Number SRZ
Type Refrigeration Compressor
Application Other, Refrigeration Parts, Heat Exchanger and Radiator Coils Spare Parts
Certification Other, ISO9001

Heater Parts Application Fin Tube Type Heat Exchange Sprally Wound Finned Tubes  and Fin Tube





Product Description



Tube material: GB8163 grade carbon steel, A179 Grade/ S/S304 or S/S316 Grade stainless steel, Coppe

Fin material:  GB8163 grade carbon steel, A179 Grade/ S/S304 or S/S316 Grade stainless steel, Copper, Aluminium

Processing/ Structure: spiral finned tube, extruded finned tube, strainght finned tube



Making Standard: GB/T14296-93



Fin tube detailed specification
Material Specification Fin OD Heat exchanging area(M2) Fin height                        Fin thickness              Fin distance
Carbon steel tube with extruded aluminium fin ODΦ18 X 2.0 Φ38 0.72 10 0.3 3
ODΦ21 X 2.0 Φ45 0.96 12 0.3 3
ODΦ21 X 2.0 Φ51 1.15 15 0.3 3
ODΦ25 X 2.5 Φ50 1.2 12.5 0.3 3
ODΦ25 X 2.5 Φ55 1.37 15 0.3 3
ODΦ32 X 2.5 Φ62 1.56 15 0.3 3

Carbon steel tube with crimped carbon steel fin ODΦ18 X 2.0 Φ38 0.57 10 0.3 4 to 5
ODΦ21 X 2.0 Φ51 0.68 15 0.3 5 to 8
ODΦ21 X 2.0 Φ45 0.76 12 0.3 5 to 8
ODΦ25 X 2.5 Φ50 0.96 15 0.3 5 to 8
ODΦ25 X 2.5 Φ55 1 15 0.3 5 to 8
ODΦ32 X 2.5 Φ62 1.1 15 0.3 8 to 10
ODΦ32 X 2.5 Φ72 1.21 20 0.3 8 to 10

Stainless steel tube with crimped stainless steel fin ODΦ18 X 2.0 Φ38 0.62 10 0.3 4
ODΦ21 X 2.0 Φ51 0.75 15 0.3 5
ODΦ21 X 2.0 Φ45 0.87 12 0.3 5
ODΦ25 X 2.5 Φ50 1 12.5 0.3 5
ODΦ25 X 2.5 Φ55 1.25 15 0.3 5

Stainless steel tube with extruded aluminium fin ODΦ18 X 2.0 Φ38 0.72 10 0.3 3
ODΦ21 X 2.0 Φ51 0.96 12 0.3 3
ODΦ21 X 2.0 Φ45 1.15 15 0.3 3
ODΦ25 X 2.5 Φ50 1.2 12.5 0.3 3
ODΦ25 X 2.5 Φ55 1.37 15 0.3 3
ODΦ32 X 2.5 Φ62 1.56 15 0.3 3
All the unite is in mm



The specification can be designed  as per customer's requirement.

Production Flow



Our Best Services



Trade Shows



Gele Company Exhibitions in different countries:

FAQ



1. Q: Can your company supply after-sales warranty?

    A: Yes, we can supply 1 year after-sales warranty against B/L date.

2. Q:  What payment terms can you accept?

     A:  We can accept L/C, T/T.

3. Q: Can you accept customized order?

    A: Yes, we accept, we have very professional technical group who can design the special products according to your basic parameter/ data sheet/ drawings or sample.

4. Q:  Do you have your own factory or just you are a trade company?

    A: We have our own factory in Foshan city Guangdong province and very welcome to visit our factory.
