Specifications
1.Fit for hydramassage bathtub and sea water convey;2. obtained the certification of CE, TUV,SAA
3.From 0.35 HP to 2HP

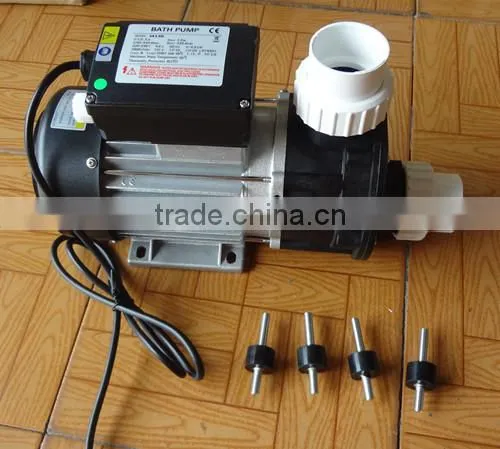

JA series jacuzziys bathtub pump
Application
1. The pump is most suitable for hydramassage bathtub and
sea water convey;
2. Weak corrosive liquid (weak acid and weak alkali) without
solid granules.
Features
-Electric pump over-current components using high-strength
engineering plastics, with high-quality wear-resistant
mechanical seal;
-63 , 71 and 80 frame, the frame with machine feet conjoined
strong and reliable.
-Pump apply forlow noise standard motor. Single-phase with
thermal protector from TI,USA.
-Motoris with high temperature bearings, long operating life
with reliability and durability.
-Complete separation of water and the axis, safe and reliable
-Optional pneumatic switch, to ensure ease of use, security.
-Insulation class F, Protection IPX5.
-The pump obtained the certification of CE,TUV, SAA.
Working conditions
-Medium temperature:5-500C
-Environmental temperature:~400C
-ing pressure:0.3MPa
| Model No. | HP |
Qmax (l/min) |
Hmax (m) |
V/HZ | A | union size |
| JA35 | 0.35 | 150 | 7.5 |
220v or 110v 50-60HZ |
1.6 | 48.5or 50mm |
| JA50 | 0.5 | 180 | 10 | 2 | ||
| JA75 | 0.75 | 250 | 10 | 3.2 | ||
| JA100 | 1 | 300 | 12 | 3.8 | ||
| JA120 | 1.2 | 335 | 12 | 4.6 | ||
| JA150 | 1.5 | 380 | 13 | 5.8 | ||
| JA200 | 2 | 450 | 16 | 7 |
Installation Diagram
We are the leading manufacturer of spa ,jacuzzi parts and fittings since 1995.
We are very experienced from the marketing, production, moulding,assembling,
packing to loading the container,after sales service.
1. Where is our factory?
2. Which payment terms we can accept?
We accept T/T in bank, Western Union,Cash.
