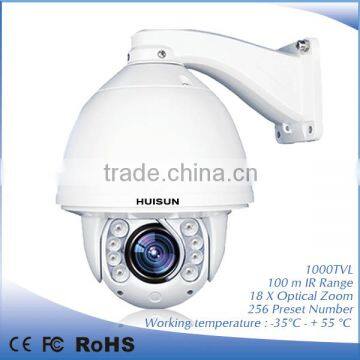

IR PTZ Dome camera Middle speed dome camera With Night vission
- 10000 Piece / Pieces per Month
- Shen zhen
- T/T Credit Card
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | China-HUISUN-IR PTZ Dome camera Middle speed dome camera | Model Number: | RGC205F-W30E-WI |
Type: | Analog Camera | Style: | Dome Camera | Sensor: | Other, CMOS, SONY IMX138 |
Technology: | Infrared | Special Features: | Waterproof / Weatherproof |
Product Description
Specifications
IR PTZ Dome camera Middle speed dome camera With Night vissionwith wiper,IP66 protection leves
IR 100 M
256 Preset numbers
IR PTZ Dome camera Middle speed dome camera With Night vission
Specification:
Product name | IR PTZ Dome camera Middle speed dome camera With Night vission |
Model | RGC205F-W30E-W1 |
Sensor | SONY IMX138 |
Effective pixels | 1000 P |
Zoom | 18 X Optical zoom( 4-88mm)VIDEO AF |
Focus length | F=3.5~104mm |
communication protocol | VISCA,:9600bps PELCO-D, |
Day/night mode | Automatic/multicolour/monochroma |
Focus mode | Automatic/manual |
S/N | > 47dB |
BLC | Off/ON |
White banlance | Automatic/manual |
Electronic shutter | no |
AGC | Auto/manual |
Min illumination | Multi-color:0.1lux/monochtome0.1lux |
Wide dynamic range | no |
Infrared lamp | |
IR distance | 100 meters |
IR lamp | OSRAM Arrany LEDs with IR |
IR power | 16 w |
IR Lens | Combination lens |
Camera | |
Pan speed | Pan speed 0.01°/s~360°/s,speed is settable, pan preset speed360°/S |
Tilt speed | Tilt speed 0.01°/s~120°/s,speed is settable,pan preset speed120°/S |
Rotation | Pan :0~360° continuous rotation tilt:-10~90° auto flip |
Preset | 256 preset (chinese tilt) |
Auto scan | 8 groups, settable boundaries and scan speed |
Auto cruise | 8 groups each with 32 presets with settable time interval |
Pattern tour | 4 groups each with 500 instructions |
Video analysis | support |
Auto track | no |
Packaged structure with | no |
OSD menu | Chinese and English |
Wiper | yes |
Power box | optional |
Heat dispersion | Out Cool Air Circulation to Sink the Heat Technology |
Supply voltage | DC12V±10% |
Levels of protection | IP66/Level2 lightness protection,4000w prvent thunderbolt surges design |
Working temperature | -35°C - + 55 °C |
Working humidity | <90% No condensation |
Consumption | Max 35W |
Weight | 5.8 kg |
Accessory | Wall -mount bracket DC 12 Power |
Funcation of IR PTZ Dome camera Middle speed dome camera With Night vission
1.First patent of built -in heat sinking technology (patent no :ZL201220269676.7)
2.First patent of video analysis light- adjustment technology.
3.The high power arrany LEDs with IR range up to 100 meters.
4.Unique composite lens design, to enhance the effect of night vision.
5.18 optical zoom,1000p.
6.Unique composite lens design, to enhance the effect of night vision.
7 .OSD menu in Chinese and English system, build-in level 2 font.
8. Built-in 8 cruise tracks and 4 pattern tours.
9. Power supply box outdoor design,making it more convenient for maintenance on site(Optional configuration).
10 .IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design.
11 .Built in power with wall mounted bracket design, making it more convenient for maintenance on site.
Appearance Design Detail :
How to install
Inner detail of
Core feature
Shipping:
1.We have strong cooperation with UPS, DHL, FEDEX, TNT, EMS , China Air Post.
2.You can also choose your own shipping forwarder.
We have rich OEM experience. If you are our customers, you will be offered:
1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
