Home > Products > 4wd outdoor recovery accessories > 9500lbs Winch 4x4
9500lbs Winch 4x4
- 1000 Set / Sets per Month
- Guangzhou
- Credit Card
You May Like
Product Details
| Brand Name | TST4X4 | Model Number | TST-09A |
Product Description

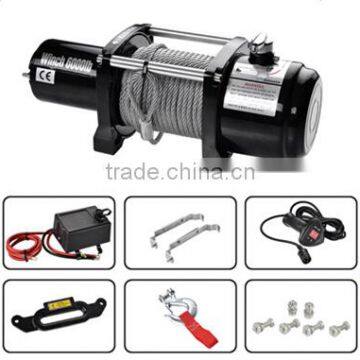

High quanlity heavy duty winch 95000lbs (12/24V) Heavy Duty Electric Winch
CE Certifacation
(winch with 500A solenoid and the latest gear box assmebly &clutch handle)
Rated line pull: 9500LBS(4300kgs) single line
Motor: 4.0KW/5.5HP 12V,4.8KW/6.44HP 24V ;
Series Control: Remote switch,12ft (3.7m)lead
Wireless Remote Contrlo:Included
Gear train: 3 Stage Planetary
Gear reduction ratio: 148.2:1
Clutch: Keyway Cam
Braking Action: Two-way,Automatic In-The-Drum
Drum Size: Φ2.5"x8.8"(Φ63.5mmx224mm)
Cable:Φ21/64"x94'(Φ8.3mmx28m)
Fairlead: 4-Way Roller Fairlead
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 gauge,72"(1.83m)
Finish: Black powder coat
Overall Dimension: 21.1"x6.3"x8.6" (537mmx160mmx218mm)
Mounting Bolt Pattern: 254mmx114.3mm
Packing size: 57x19x34.5cm 1PC/CTN
Weight: N.W. 36kgs G.W. 38Kgs
