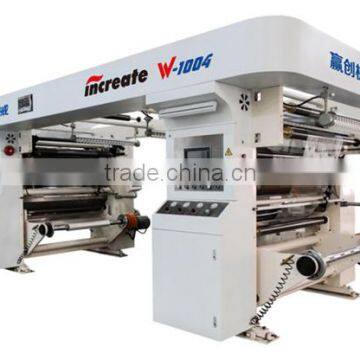

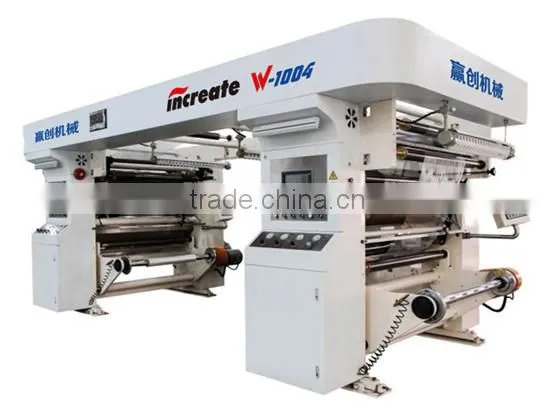

Soft Packaging Solvent Free Plastic-plastic Compound Equipment

Name: Soft Packaging Solvent Free Plastic-plastic Compound Equipment
Brand: Increate
SKU: 130183447
Availability: InStock

US$ 100,200 - 110,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Food, Other, Food, Machinery & Hardware

Packaging Type:

Case

Shandong Huacheng Hi-Tech Adhesive Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Food, Other, Food, Machinery & Hardware

Packaging Type Case

Packaging Material Wood

Automatic Grade Automatic

Driven Type Electric

Voltage 380V 50Hz

Power 45KW

Place of Origin Shandong, China

Brand Name Increate

Model Number W1004A

Dimension(L*W*H) 6000mm*3000mm*2500mm

Weight 6000KG

After-sales Service Provided Engineers available to service machinery overseas

Advantages of technology

In compound material, no solvent residual, especially as to meet the requirements of modern health of food and pharmaceutical packaging.
In the production process there’s no volatile solvent emissions, no pollution to the atmospheric environment, excellent production environment.
Because they do not use the conventional drying system, therefore can significantly reduce energy consumption, low production cost.
Coating glue and total cost has certain decrease than existing technology.
Machine speed fast, small footprint, no fire and explosion risk.

Item	Solvent-based compound	Water-based compound	Solvent-free compound
Offer glue	Artificial mixing	Sometimes artificial mixing	Automatic
Coating	Anilox roll	Anilox roll	Smooth roll
Coating weight	Not adjustment online	Not adjustment online	Adjustment online
Drying	Have drying tunnel	Have drying tunnel/high temperature	No drying tunnel
Speed	Intermediate speed	Intermediate and low speed	High speed
Winding /Unwinding	Artificial /semi-automatic	Artificial /semi-automatic	Artificial /semi-automatic
Cleaning	Anilox roll/glue tray	Anilox roll/glue tray	Smooth roll
Degree of automation	Intermediate	Intermediate	High

The range of composite material and the requirement of surface tension

Solvent-free plastic- plastic laminating machine can be composite substrates are mainly

BOPP,PET,Nylon,CPP,PE,VMPET,VMCPP,PVC,paper,etc,base material is generally applied thickness in 7um-120um (According to the equipment).

The surface tension of the BOPP, PE, CPP, VMCPP general than 38 dyne;

PET film surface tension must be more than 48 dyne;

BOPA(NY),PVDC and so on must up to 52 dyne.

Item	Parameters
Compound speed	10-400m/min(According to base material, glue features)
Compound width	600mm-1050mm
Unwinding diameter(Max)	Φ800
Winding diameter(Max)	Φ1000
Base width(Max)	1050mm
Paper tube length(Max)	1050mm
Paper tube standard	Inner diameter Φ76mm×Outer diameterΦ92mm
Winding paper core	3 Inches
Guide roller length	1100mm
Coating weight	0.7~2.7g/m2
Composite pressure	700kg/Full width
Composite roll temperature	5~60℃
Preheat roll temperature	5~50℃
Total Power	About 45KW
Power supply	Three-phase five-wire 380V 50Hz
Air pressure	0.6Mpa
Equipment weight	About 6000KG
Equipment size	6000mm×3000mm×2500mm(L×W×H)
