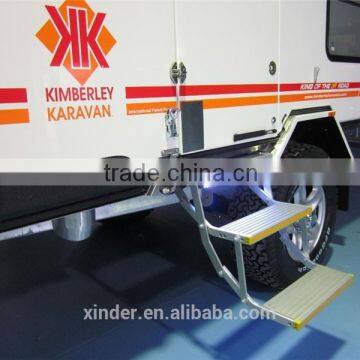

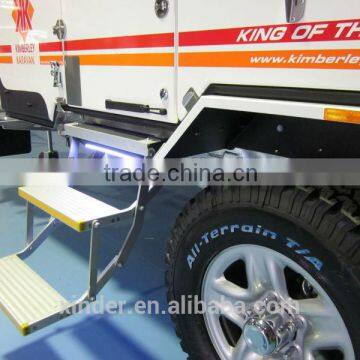

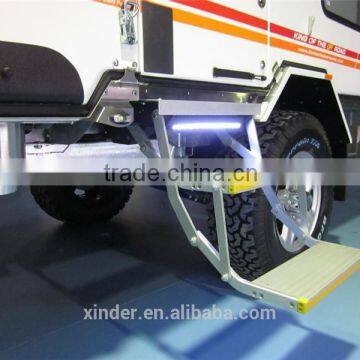

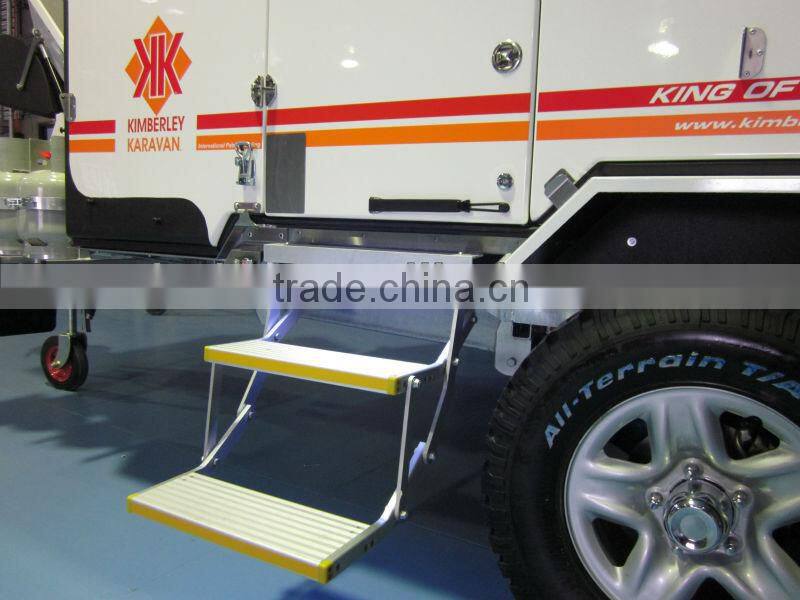

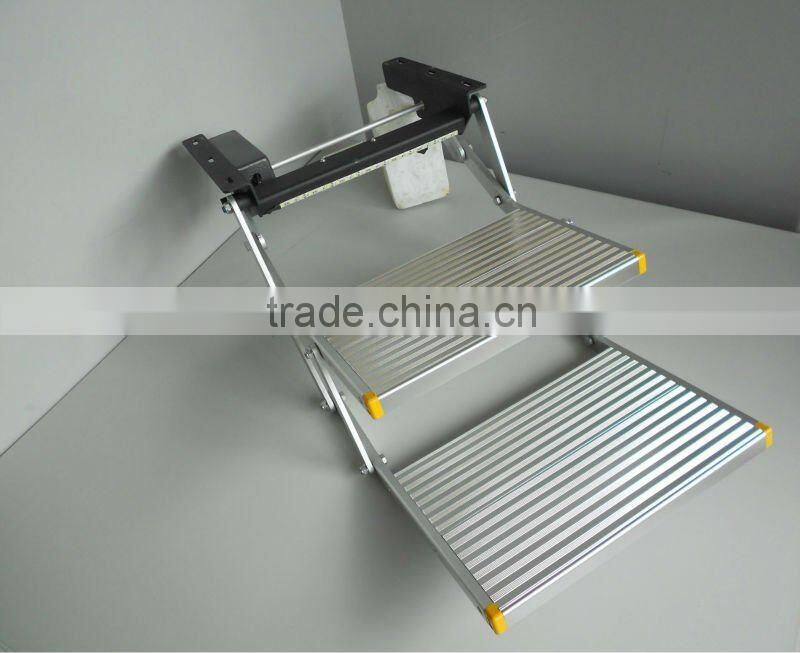

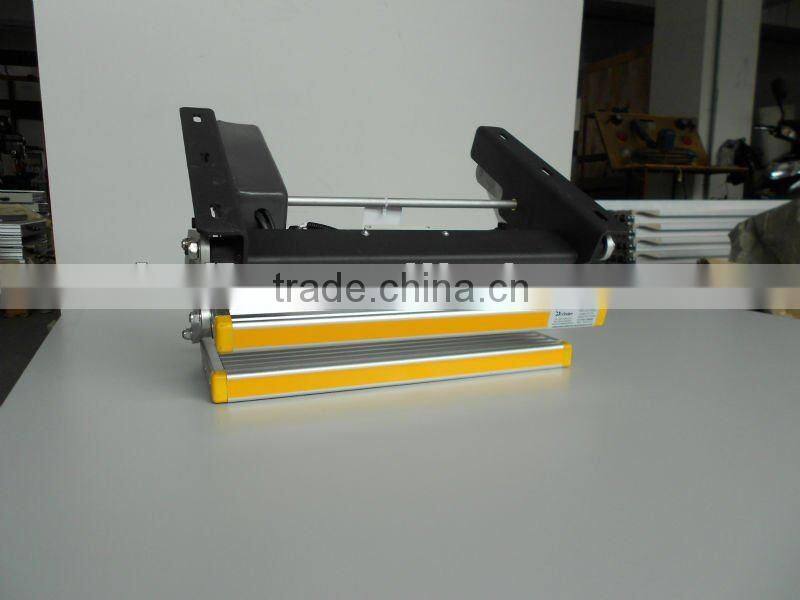

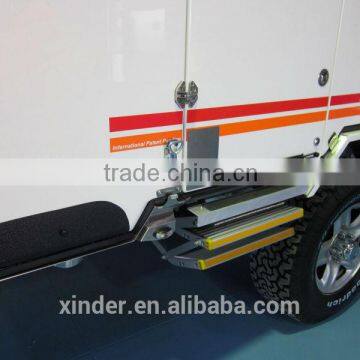

ES-F Series Folding Double Electric Step for Van and Motorhomes
- 10000 Set / Sets per Month
- Shanghai
- Credit Card
- Bus Engine Part YBM866005 491Q-ME-1105020 Gasoline Fuel Filter
- High Quality Kinglong Bus Part 261500177 Emergency Valve
- Wholesale King Long Bus Parts Auto Parts Door Pump Pull Rod
- Wiper Motor for Higer Bus
- 37VAA-75100-AMP High Braking Light suitable for business truck Bus
- Universal bus parts MB-QZ1 Door pump for Yutong Bus
Product Details
Type: | Other, steps for car | Certification: | CE | Size: | 600*900mm |
Material: | Aluminum Alloy | Place of Origin: | Jiangsu, China | Brand Name: | Xinder |
Model Number: | ES-F -D |
Product Description
1. INTRODUCTION
Ø Operation
The folding contraction electric step is pulled out and pushed in by motor.
The folding contraction electric step is operated by means of a design switch which combines perfectly with the modern motor home.
Ø Construction
All folding contraction electric steps have galvanized or aluminum frames. The step is made of anodized aluminum with safe rounded edges. For most of the steps, the side plates are in anodized aluminum as well.
Both current and new developments regarding our products are continuously tested. Maximum static capacity is 250kg.
Model | Platform Size | S | T | U | Loading capacity | Voltage | Own weight |
ES-F-D-450 | 450*300 | 450 | 476 | 437 | 200 KG | DC12V-24V | 22KG |
ES-F-D-600 | 600*300 | 600 | 626 | 587 | 200 KG | DC12V-24V | 22KG |
stretch: inherit; font-size: 12px; line-height: 15.6px; font-family: Arial, Helvetica, sans-senif; vertical-align: baseline; color: rgb(51, 51, 51); letter-spacing: normal; orphans: auto; text-align: start; text-indent: 0px; text-transform: none; white-space: normal; widows: 1; word-spacing: 0px; -webkit-text-stroke-width: 0px;">The folding contraction electric step slide out is easy to install and it does not take much time. To make the step fit any type of chassis or to determine the height of the step, the installation brackets can be put in four different position at the time of installation.
4.PICTURES
Ø Safety
A switch for connection to a warning light in the vehicle is supplied as standard. For your safety, the folding contraction electric step edges are rounded and fluorescent in the dark.
All steps are now equipped with The folding contraction electric step slide-out can be mounted onto several types of vans by using our special mounting kits: ! Your current step (450 and 600/double 450 and 600) can be retro fitted with the new anti-slip foot boards.
Ø Options: For your safety in the dark, you have the option to equip your folding contraction electric step with a set of LED's.
Ø Installation: The folding contraction electric step slide-out can be mounted onto several types of vans by using our special mounting kits:
Sliding side door and cab hinged doors
Cars, minibuses, taxi
Adapted vehicles for disabled vehicles
Ambulances and accessible vehicles
Motor caravans and campers
2. ADVANTAGES
Ø Extremely solid and very light weight
Ø Attention to safety
Ø Attractive design
3. FEATURES
The folding contraction electric step slide out is a unique extendable step to be fitted to the caravan. The step is opened and closed by motor and stays locked in the open or closed position by means of a click system. And so, the steps always remains securely closed during a drive.
The folding contraction electric step slide out is easy to install and it does not take much time. To make the step fit any type of chassis or to determine the height of the step, the installation brackets can be put in four different position at the time of installation.
4.PICTURES
Our factory :
Our service :
1)- One year warranty for whole products
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users
6)- 24hours online services
FAQ :
1. What's the delivery time?
In 2 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, West Union, Paypal and other ways .
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, with better price.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size, also we give support of OEM , and can paste agent's label on the products .
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
