Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > CE RHOS SMD2835 Ultra Thin Square Led Panel Light

CE RHOS SMD2835 Ultra Thin Square Led Panel Light

US$ 3.6 - 3.8 MOQ: 50 Pieces

Key Specifications

Get Latest Price

LED Light Source:

LED

Warranty(Years):

Input Voltage(V):

85-260V

Contact Supplier Request Quote Chat Now

Cixi Xingwei Photoelectricity Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source LED

Warranty(Years) 2

Input Voltage(V) 85-260V

Lamp Power(W) 9

Lamp Luminous Flux(lm) 1035-1125LM

Lamp Luminous Efficiency(lm/w) 80

Color Temperature(CCT) Other, warm white/cool white

Working Temperature(℃) -20, 45

Working Lifetime(Hour) 35000

Lamp Body Material Plastic

IP Rating IP44

Certification CE, CE

Place of Origin Zhejiang, China

Brand Name OEM

Model Number XW-Y9W

Specifications

SMD2835 9w led Square panel light
1.Aluminum
2.Voltage:AC85-260V
3.Light source: SMD2835
4.35000hours

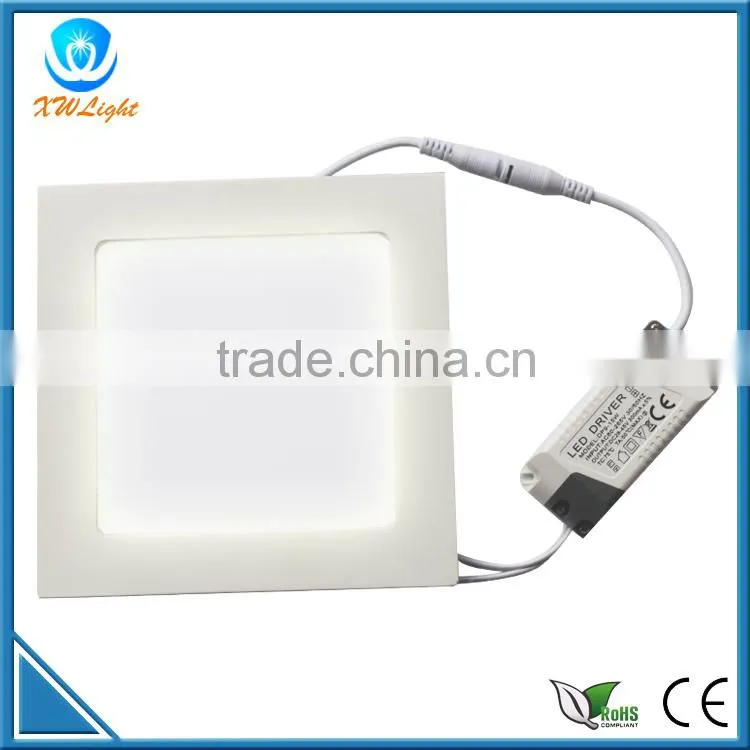

SMD2835 9w square led panel light

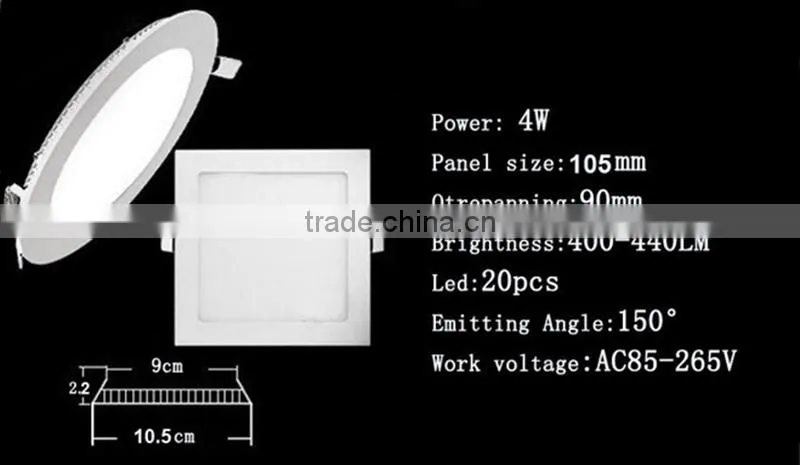

Model	Power	Shade	Lumens	LED Chips	Cut Size	Dimension

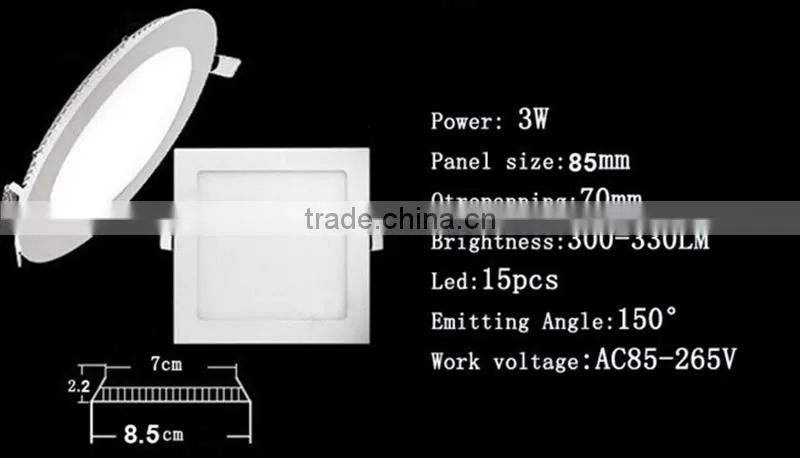

XW-TD250308	3W	Round/Square	165lm	15leds	F70mm	F85mm
XW-TD300608	6W	Round/Square	390lm	30leds	F105mm	F120mm
XW-TD501208	12W	Round/Square	880lm	60leds	F155mm	F170mm

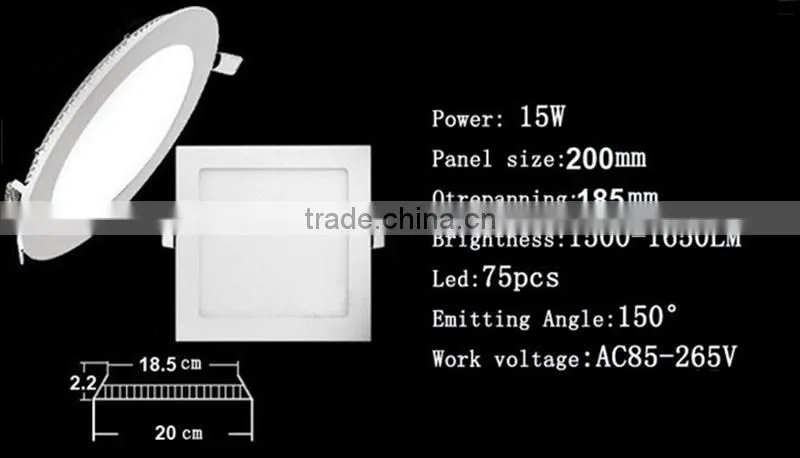

XW-TD701508	15W	Round/Square	1160lm	75leds	F185mm	F200mm
XW-TD801808	18W	Round/Square	1600lm	90leds	F205mm	F225mm

Voltage	AC90-265V
Material	PPMA+Metal Base
Color Temperature	3000-3500K/6000-7000K
Lifespan	30,000 hours
Install	Recessed
LED Chip	Everlight/ Epistar/LG/Samsung
Warranty	2years
Certificate	CE RoHS
CRI	Ra>70,Ra>80
PF	>0.5

Product Features

1. Use high light LED as lighting resources. Energy saving up to 60%. High brightness. Even lighting output.

2. Input voltage range: AC 100-240V. Life time: 50000H.

3. Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.

4. New high efficiency constant current driver increases the working life of LED,and also effectively reduce the brightness decline.

5. No UV, IR, radiation and no flickering, People can feel peaceful and comfortable under the light.

6. Use high thermal conductivity aluminum frame, high heat dissipation and low surface temperature.

7. This product by CE, ROHS Certification, no electromagnetic interference, security, reliability, green and environment protection

Applications

1. Factories, Hospital Lighting

2. Warehouse, Supermarket Lighting

3. Schools, Offices, Residential Area Lighting

4. Hotels, Conference, Meeting rooms Lighting

SAMPLE ORDER:

We accept sample order for testing.

QC & QA:

Our professional QC checks the materials, products strictly. And our QA offer the full inspection of goods before shipment to assure everything is ok.

Other Details:
Price Terms:	EXW,FOB ShangHai or NingBo.
	T/T, L/C, Western Union,Escrow,Paypal etc.
Payment Terms	1).100% TT for sample order (1-10pcs) including 10% extra charge.
	2).30% deposite after order confirmed,70% balance before shipping.
	3).Price is valid for 30 days after quotation date.
Warranty	2 year.
Country of Origin	China.
Shipping way	TNT,UPS,FedEx,DHL Express and sea shipping way. if u want to save more money, sea way is better.
Packaging	Normal export carton.
Delivery Time	Sample order 3-5 working days after we got your full payment.
	Normal order 3-15 woking days according to order quantity.
Shipping Port	Shang hai or NingBo Port
Why Choose us	1).We are very professional manufacturer of traditional lights & LED Commercial Lighting.
	2).We can assist clients to offer integrated product sourcing & production management services if product out of our Lights or led lighting business line.
	3).As a result,our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
	4).Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional sales managers.
	5).Prompt delivery.
Contact Us	Skype:luping.yang CellPhone:86-13857452580 James
