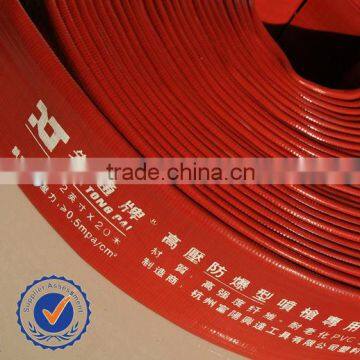

LAYFLAT DISCHARGE HOSE

Specifications

LAYFLAT PVC HOSE

INTRODUCTION

It is made by an advanced continuous manufacturing technique using a special formulation of PVC and high tensile polyester yarn. The process ensures total penetration of PVC onto the interstices of the polyester reinforcement and inseparable fusion of the inner and outer walls of PVC. This method of production allows maximum strength to be obtained while maintaining minimum wall thickness.

The hose thus produced has an exceptionally high hoop strength, at the same time allowing minimum longitudinal movement. It is a lightweight, water- proof flexible hose. It is resistant to weather, abrasion, process fluids and is rugged enough to take repeated daily rough handling. It does not corrode and is available in long lengths. It assumes a conventional round appearance under pressure and returns to its flat shape after use, for easy handling and storage. It does not need drying and can be rolled immediately after use. The hose is tough and will give many years of useful service.

APPLICATION OF HOSE

AGRICULTURE - Drip Irrigation, Sprinkling, Dewatering, Grain Chutes

FORESTRY - Fire Fighting, Sprinkler, Water Supply Line.

MINING - Leaching,Dewatering, Pumping, Dust Chutes, Waste Water Disposal, Ventilation

MARINE - Water Supply for Ships, Unloading of Vessels, Submarine Exploration.

MUNICIPALITIES- Fire Prevention, Emergency Sewage, Flood Control Lines, Horticulture

CONSTRUCTION - Concrete Chutes, Boring, Dewatering, Pile Driving, Hydraulicing

FISHERY - Fish Farming

Construction:through-the-weave extrusion. Both tube and cover  are extruded simultaneously to   obtain maximum bonding(see attahced picture)

Sizes: 1" through 8"

Tube: Coextruded PVC

Cover:CoextrudedPVC

Reinforcement: Polyester Yarn

Temp. Range: -10 to 50 degrees C

1.through-the-weave extrusion:

2.Hose used in Drip Irrigation:
