(Manufactory) Good Price GPS+GSM+WIF Combination Antenna
- guangzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Model Number | GA-GPS/GSM/WIFI-04 |
Product Description
Specifications

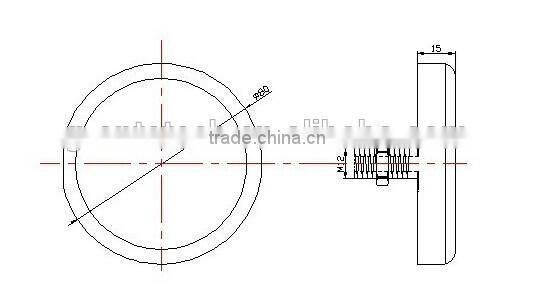

1.Combination GPS+GSM+WIFI Antenna with three function together in one and high quality2.size D80X15(H)MM
3. Cable RG174

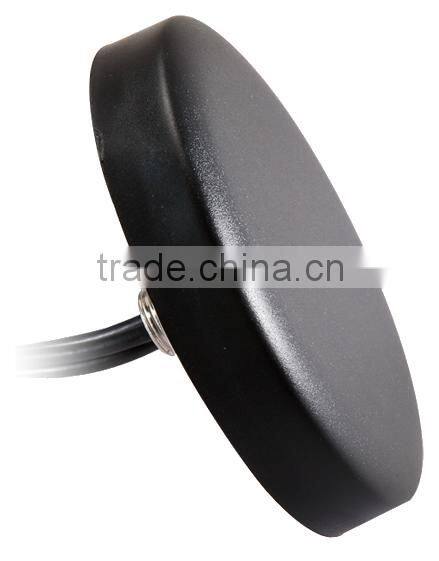

High quality GPS+GSM+WIFI triplex Combination antennas
Item | Specifications | ||
GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
Band Width | CF±5MHz | ||
Polarization | RHCP | ||
Gain | 2dBic(Zenith) | ||
V.S.W.R | <1.5 | ||
Impendance | 50Ω | ||
Axial Ratio | 3dB(max) | ||
LNA | Gain | 28±2dB | |
Noise Figure | <1.5 | ||
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
V.S.W.R | <2.0 | ||
Supply Voltage | 2.2~5V DC | ||
Current Consumption | 5~15mA | ||
GSM Antenna | Frequency Range | 824~960MHz/1710~2170MHz | |
V.S.W.R | <2.0 | ||
Polarization | Linear | ||
Gain | 2.0dBi | ||
Impendance | 50Ω | ||
WIFI Antenna | Frequency Range | 2400~2483.5MHz | |
Band Width | 83.5MHz | ||
Polarization | Linear | ||
Gain | 3dBi | ||
V.S.W.R | <2.0 | ||
Impendance | 50Ω | ||
Mechanical | Cable | RG174 | |
Connector | SMA/MCX/FAKRA or others | ||
Material | ABS | ||
Mounting Method | Screw | ||
Environmental | Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP65~IP67 (exclude cable outlet) | ||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
Environmentally Friendly | ROHS Compliant | ||
