3 Ton 5 Ton 10 Ton Stand Column Mounted Slewing Small Jib Crane Used for Workshop, 2 Ton Mini Jib Crane Price

1. The 360° Standard Jib Crane is designed to offer maximum productivity with an industry leading safety factor of 10:1.
2.  This enclosed track jib crane provides maximum coverage in 360° areas not served well by other cranes.
3. Featuring our revolutionary portable pod station system, this unit can be bolted directly to existing floors without adding special foundations - and easily relocatable to another location when needed.
4. Jib cranes assist the staff ana multiply human efforts, handling loads up to 6300kg precisely and effortlessly.
5.  Jib crane are useful especially for loading or unloading of work pieces on machine tools.
6. There can also become an inseparable part of a standalone workstation and machine assembly area.

• Voltage lower protection function

• Lifting height limit device

• Emergency stop system
• Crane traveling limit switch
• Overload protection device

Wall Travelling 360 degree rotating floor

These are useful where overhead cranes are not practical or feasible. They offer 360 degree floor coverage, allowing unrestricted placement of machinery and equipment.

^{1. Classification group: Class C (intermediate)}

^{2. Lifting height: 6-30m}

^{3. Lifting capacity: 0.5-16t}

^{4. Min validity cantilever:1.0-3.5m}

^{5.Max validity cantilever: 5-30m}

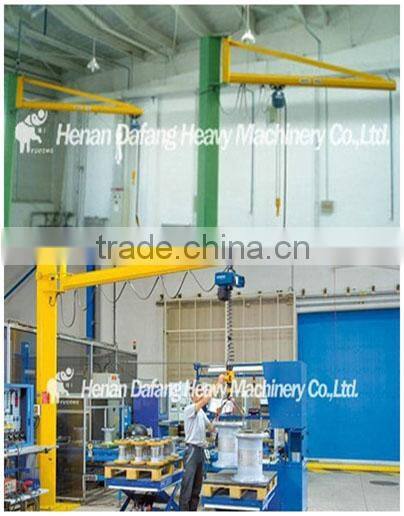

Wall Mounted 360 degree rotating floor

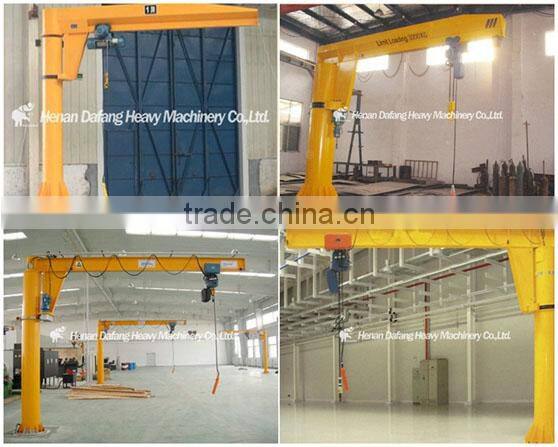

These mount easily to any substantial structural steel building column, at any desired height. The crane has a structural steel finish, in highly visible yellow enamel.

1. Classification group: Class C (intermediate)

2. Lifting capaciy: 0.25-16t

3. Lifting height: 5-6m

4. Valid radius: 4-5m

5. Lifting speed: 8/0.8m/min

6. Circulate speed: 20m/min

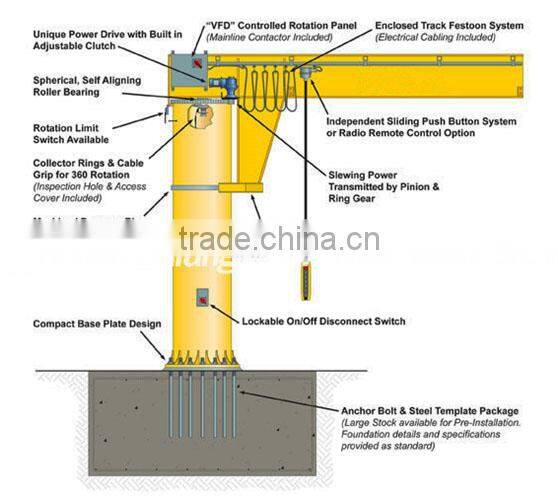

This Light duty jib crane fixed slewing jib crane is a hoisting machinery that equipped with single speed CD type or double speed MD electric hoist, its main parts are stand column, slewing arm, cantilever driven device and electric hoist.

Under the cantilever, it equipped with rack, hoist running dolly output gear and rack driven of occlusion, this could ensure the stability of the electric hoist.

The hoist make shuttle running along the way of I-shaped beam, slewing of cantilever is finished by the motor to drive the reducer device.

The cantilever is made of hollow steel structure, it is has a light weight, wide span, large lifting capacity , it is also more economic and durable.

The jib crane which adopt special engineer plastic wheels with rotary bear could reduce the abrasion, running more smooth .

It could install in any position with ranges of rotation 180°,270°,345°,360°.
