BMWR-3 Folding Manual Wheelchair Ramp for Van

1. Introduction

This BMWR-2 series manual wheelchair ramp is developed on the basis of FMWR folding

wheelchair ramp, which can be used for van and minivan.

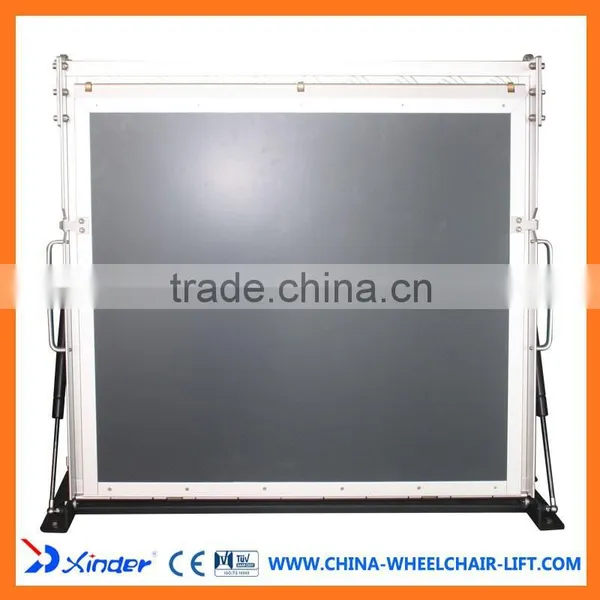

This ramp consists of two honeycombs penal which are hinged joint to fold and unfold. One of

the advantages of this ramp is that the operation is completely manual, which is simple, easy, and

safety. This is the best choice for the vehicle which floor is a little high and installation space is

limited.

The ramp is mainly made from aluminum profile and honeycombs penal. We apply

honeycombs penal with figure, which has the advantages of anti-skidding, light weight, high-load

capability and so on.

There are air springs at the sides of ramp, which can make the operation easy, and avoid ramp

unfolding by itself when emergency brake

Because of the compact design, this ramp can be used for mini-vehicle such as wagon,

light-van, van, and minivan and so on.

2. Technical Parameter

 3. OPERATION:

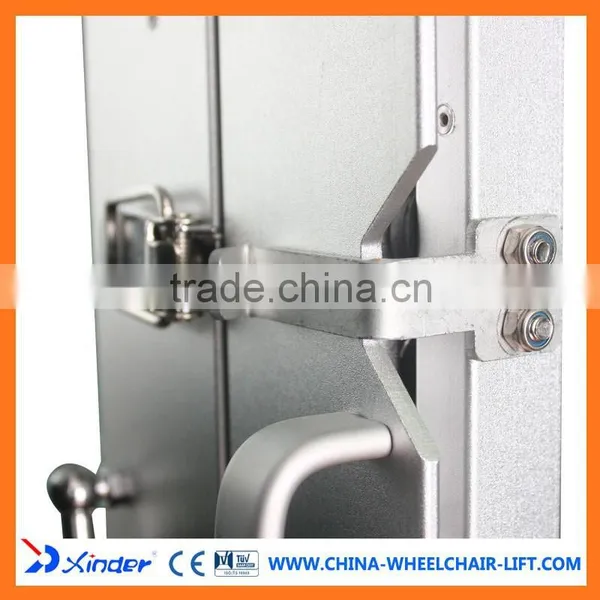

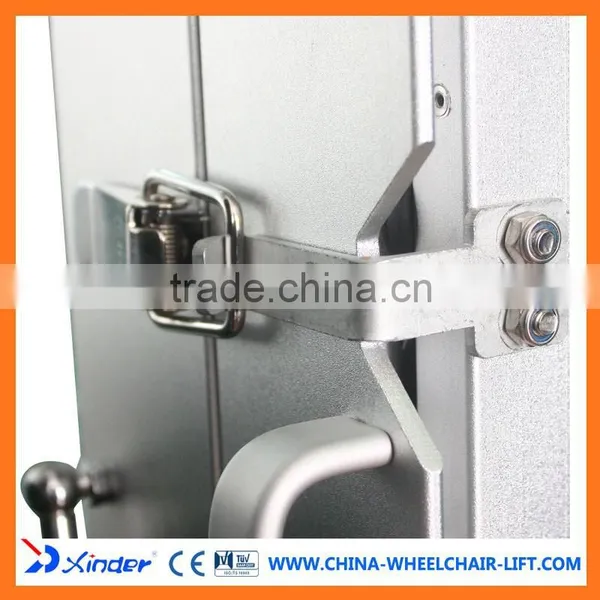

a. This ramp is locked by two buckles which are at the two sides of ramp. When needed, the
operator should unlock the two buckles first.

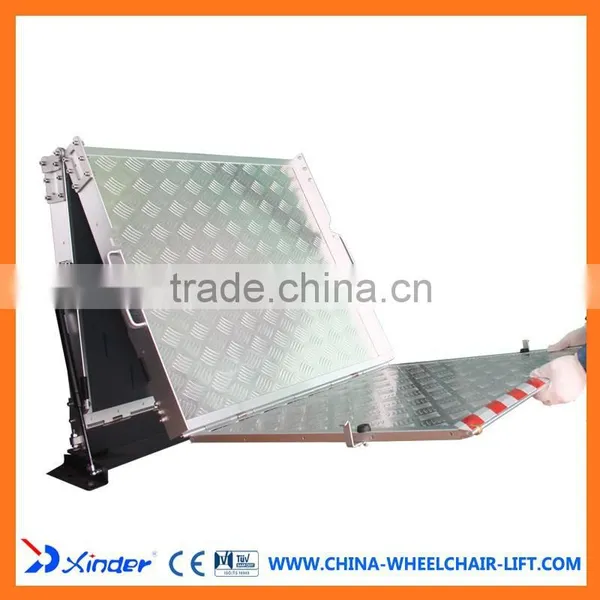

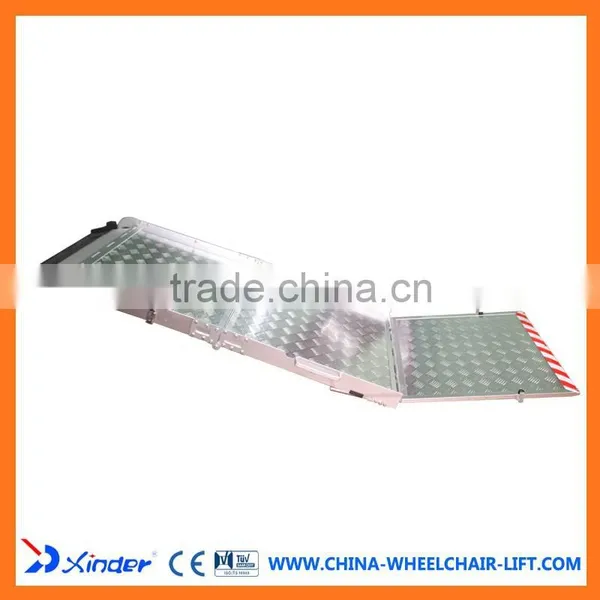

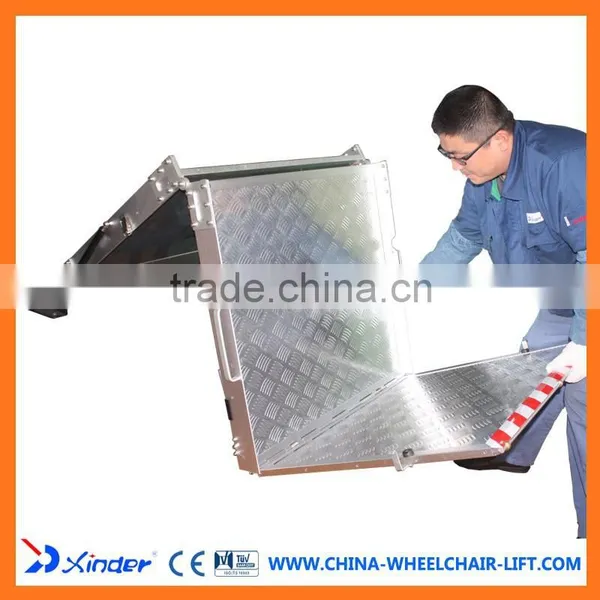

 b. After the buckles are unlocked, hold the handrail (refer to Figure 3) and pull the ramp forward, so that the two pieces of ramps will form a slop which can help wheelchair get into/out of vehicle.

c. After the wheelchair get into/out of vehicle, fold the two pieces of ramps, and then lock the two

buckles. This is the end of the operation
