1. Introduction
This BMWR-2 series manual wheelchair ramp is developed on the basis of FMWR folding
wheelchair ramp, which can be used for van and minivan.
This ramp consists of two honeycombs penal which are hinged joint to fold and unfold. One of
the advantages of this ramp is that the operation is completely manual, which is simple, easy, and
safety. This is the best choice for the vehicle which floor is a little high and installation space is
limited.
The ramp is mainly made from aluminum profile and honeycombs penal. We apply
honeycombs penal with figure, which has the advantages of anti-skidding, light weight, high-load
capability and so on.
There are air springs at the sides of ramp, which can make the operation easy, and avoid ramp
unfolding by itself when emergency brake
Because of the compact design, this ramp can be used for mini-vehicle such as wagon,
light-van, van, and minivan and so on.
2. Technical Parameter
Model |
Platform Net Size (A×B) |
Overall Width (C) |
Overall Height (D) |
Overall Length (E) |
Loading Capacity |
Own Weight |
BMWR-201 |
1910*810 |
880 |
1050 |
265 |
350 Kg |
40 Kg |
BMWR-202 |
2310*810 |
880 |
1250 |
265 |
350 Kg |
40 Kg |
3. OPERATION:

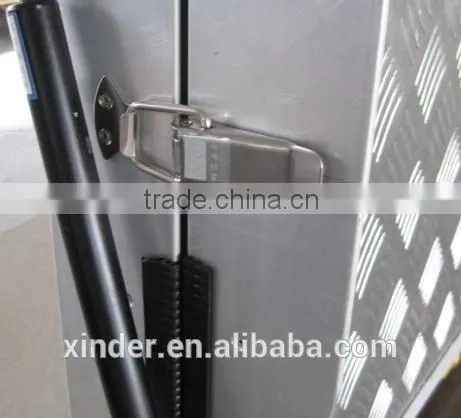

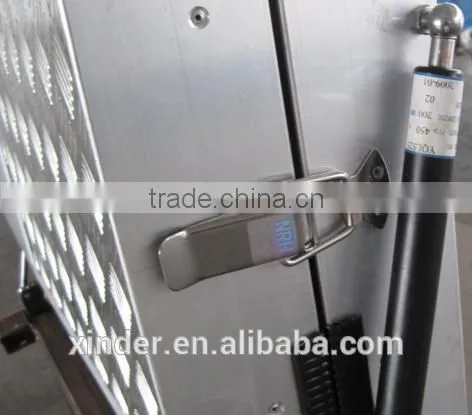

a. This ramp is locked by two buckles which are at the two sides of ramp. When needed, the
operator should unlock the two buckles first.

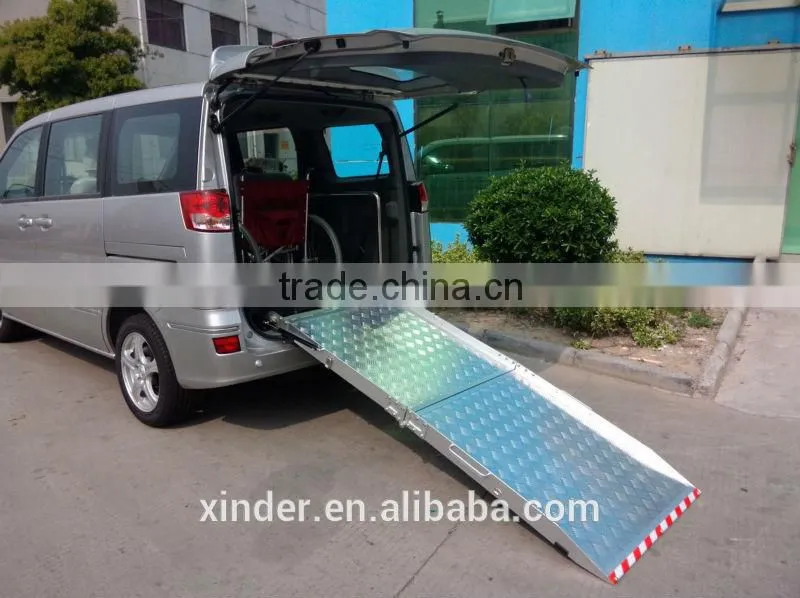

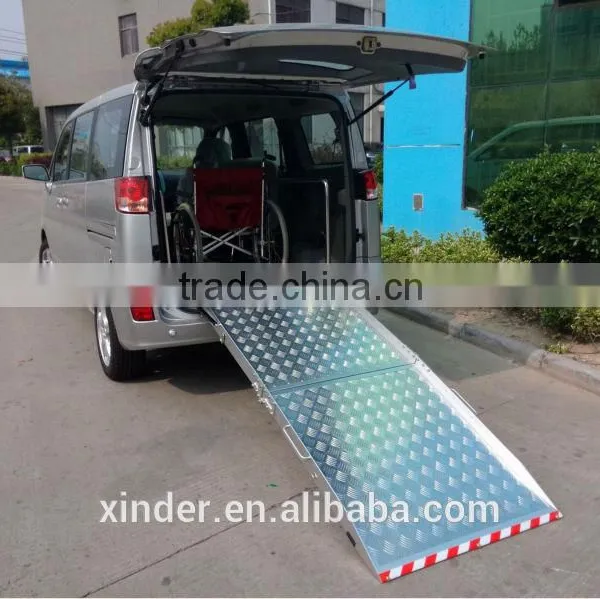

b. After the buckles are unlocked, hold the handrail and pull the ramp forward, so
that the two pieces of ramps will form a slop which can help wheelchair get into/out of vehicle.
c. After the wheelchair get into/out of vehicle, fold the two pieces of ramps, and then lock the two
buckles. This is the end of the operation
WL-D series Wheelchair lift
BMWR series Wheelchair ramp
S-LIFT swivel lifting seat
ES Series Electric step
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% before delivery. We'll show you the photos of the products and packages before delivery
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 10 to 30 days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.
Q5.What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
