Echo cancelling bluetooth module bluetooth transmitter module
| Spec Item | Range | |
| General | Dimension (mm) | 24.0 x 17.8 x 2.4 mm |
| PCB material | FR4 4 layers | |
| Soldering pin type | Stamp module for SMT | |
| Antenna | Antenna built-in | |
| Firmware memory | ROM | |
| Bluetooth | Bluetooth version | Bluetooth specification: V4.1 + EDR |
| Bluetooth chipset | BlueCore® CSR8645™ | |
| Profiles supported | A2DP/AVRCP/HFP/HSP | |
| Connectivity | Multi-link - A2DP/HFP | 2 x host devices (A2DP/HFP) or 2 x headsets |
| App connection | CSR's proximity pairing & connection | |
| NFC | External NFC module available (Optional) | |
| RF/Wireless | Frequency range | 2.402GHz to 2.483GHz |
| Transmission power | Class 2 , 0 ~ +8 dBm | |
| Sensitivity | -90dBm (typical) | |
| Wireless Range | >10m ( free space) | |
| Audio | Microphone inputs | 2 x analog mic +2 x digital mic (MEMS) |
| Line-in | Support for stereo line-in | |
| Output for speaker | Stereo differential output (upto 50mW) | |
| ADC sampling | 8 KHz ~ 48 KHz, 16-bit high-quality | |
| DAC sampling | 8 KHz ~ 96 KHz, 16-bit high-quality | |
| Codec | Hi-Fi quality stereo codec | |
| Decoder support | aptX, SBC, MP3 and AAC | |
| Music Enhancements | Configurable EQ, S3D, Volume Boost | |
| Noise/Echo reduction | CVC6.0 noise and echo reduction | |
| HSP voice | HD voice, bi-directional noise reduction | |
| Electrical | Supply Voltage - Charger | 4.75~5.75V (Recommended) |
| Supply Voltage - Battery | 4.30V (Max) | |
| Supply Voltage | 3.0V~3.7V (Recommended) | |
| Power comsumption - StandBy | ~250uA (typical) @ACL link, Sniff 500ms, LED off | |
| Power comsumption - SCO | ~11 mA (typical) @SCO link, HV3 packet | |
| Power comsumption - A2DP | ~13 mA (typical) @SBC, 48KHz sampling | |
Key Features
1. Echo cancelling bluetooth module for high-end audio products
2. High efficiency PCB antenna built in
3. Support for Hi-Fi sound quality
4. Apt-X decoder built in
5. RF transmission power level control configurable
6. Multi-band EQ tunable, S3D and Volume Boost
7. Support for voice prompt
8. Multi-languages voice prompt (optional)
9. Optional Dual-mic noise cancellation firmware version available
10. Support for USB charging enumeration and Charge management
11. Multi-point connection with 2 source devices
12. Bluetooth multi-connection A2DP adapter - 1Tx/2Rx and/or 2Tx/1Rx - combined by yourself
13. Functional, RF, audio and Bluetooth performance verified
14. Complete environmental & reliability test
15. Verified production line capability and quality system

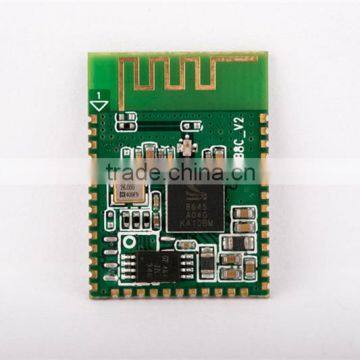

Echo cancelling bluetooth module bluetooth transmitter module product pictures:
About product
This is a high-quality Bluetooth module with PCB antenna built in. The module is elaborately designed in EMI and audio configuration based on Bluetooth stereo chipset CSR8645 with CVC noise & echo cancellation and apt-X technologies, support for multi-link, smart apps connectivity, dual-mic, digital mic, wired audio features. It has excellent RF performance by fine-tuned RF match and antenna directionality.
Such as our bluetooth transmitter for smart tv ,laptop ,mobilephone and more audio products .pls check it : bluetooth transmitter
ALMSound Company Information :
We are an one-stop supplier with professional service in wireless audio products, both in R&D and production quality based on our management system and industrial expertise.
Product development programme in 2015:
QA Reliability test
Production Assembly Line
Factory picture
Payment:
TT,Western Union.
30% as deposit, balance before shipment.
Shipment:
Express (DHL, UPS, FEDEX or EMS) or by sea & by air
We will provide you the tracking number once the goods sent, tracking it until you get the package.
If you have any inquiry for our BLE series products ,Pls feel free contact us ~
