Home > Lights & Lighting > Lighting Fixtures > Lamp Base & Light Socket > Anen LED COB Holder 4A 300V Copper With Gold UL RoHS Certificated

Anen LED COB Holder 4A 300V Copper With Gold UL RoHS Certificated

Name: Anen LED COB Holder 4A 300V Copper With Gold UL RoHS Certificated
Brand: Anen
SKU: 130175909
Availability: InStock

Anen LED COB Holder 4A 300V Copper With Gold UL RoHS Certificated thumbnail-1

Anen LED COB Holder 4A 300V Copper With Gold UL RoHS Certificated thumbnail-2

Anen LED COB Holder 4A 300V Copper With Gold UL RoHS Certificated photo-1

Anen LED COB Holder 4A 300V Copper With Gold UL RoHS Certificated photo-2

US$ 0.29 - 0.29 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Anen

Model Number:

COB170-280

Contact Supplier Request Quote Chat Now

Dongguan NBC Electronic Technological Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Anen

Model Number COB170-280

Material PC

Certification Other, UL, UL,RoHS,SGS

Style Screw

Anen LED COB Holder 4A 300V Copper with gold UL RoHS Certificated

Product Description

<1> can be used with Samsung, COB and other Citizen adapter

<2> UL safety certification

<3> No welding solution: no tool can be easily installed

<4> Screw mounting fixed

<5> Safe easy to plug: direct insertion of tin

<6> Available with 1.0mm needle safety back line

<7> Suit wire diameter: 20-22AWG single core wire multi strand dip tin wire

ANEN Part No.		COB135	COB170	COB190	COB215	COB280
LED COB	Citizen Part No	CLL020/022 CLU024/025/026 /027/700/701		CLL030/032/ 034/036/720		CLL040/042 /044/046/730
	Samsung Part NO	LC006B/LC008B	LC013B/LC019B		LC026B/LC033B /LC040B
Specifications
Electrical	Amperes	3A	4A	4A	4A	4A
	Rated Voltage	300V	300V	300V	300V	300V
	Contact Material	Copper Plate with Gold
	Insulation Material	PBT
	Flammability	UL94V-0
	Environment Temperature	T-125(℃)
Mechanical	LED COB Holder	35*26mm	40.6*31.6mm	40.6*31.6mm	41.5*34mm	49*39mm
	Diameter(C)	M3
	Installation size	20*13mm	24*15mm	25.6*18.6mm	28*19.5mm	33*21mm
	LED COB Size	13.5*13.5mm	17*17mm	19*19mm	21.5*21.5mm	28*28mm

Our Services

<1> R&D capability to provide customer total solution.

<2> In-house capability on high precision metal stamping, heat treatment, plastic injection and tooling design and fabrication.

<3> Strong capability on headband spring and other hardware design and manufacturing. Full series high current power connector manufacturer.

Company Information

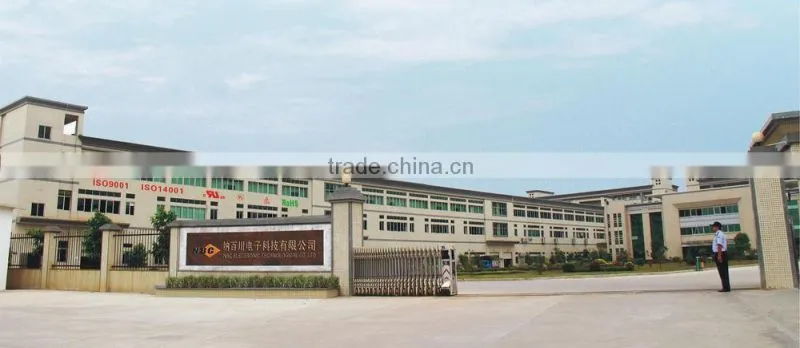

NBC electronic technologic Co.,Ltd, founded in the beginning of the 21st century, is a comprehensive high and new technology enterprise that specializing in designing, developing, manufacturing and marketing of high power connectors, which mainly engaged in various types of Anen Power Connector and cable assemblies.

NBC has been concentrated on the field of power connector nearly 10 years that has established a set of perfect product and service system with the advanced technical equipment and high qualified staff team. in order to meet customers' demand better, we adhere to the way of open cooperation. and to improve customer value through continuous innovation of technology, product, solve project and business management, to meet customers' demand by driving development process.

Our product, ISO9001 and ISO14001 certified, are in line with the industry standard in whole, which being widely used in the industry of power, auto, communication, new energy resources, medical treatment etc, with independent intellectual copyright, it have a leading position both at home and abroad.

FAQ

<1> Are you factory or trading company?

A: we are factory. Located in No.20,2 alley, Nanxin Road, the third Industrial Area, NanZha, Humen town, Dongguan city, Guangdong.

<2> How to purchase our cargo?

A: You can mail your requirement to our marketing address , we will response you in 12 hours less than 12 hours. Or dial to our office telephone 0769-85117870-8005.

<3> How does your factory do regarding quality control?

A: Our factory gained the ISO9001 in 2008 and ISO14001 in 2012. And our products have got the certifications of UL, CUL, SGS, CE, RoHS and TUV, for the better serve to customers all round the world.
