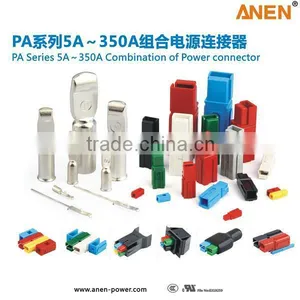

High Quality Connector UL Approved
Connector Description
1. Flat wiping contact system
Minimal contact resistance at high current, wiping action cleans contact surface during connection/ disconnection beteen the connector.
2. Structured color-coded
Prevents accidental mating of components operating at different voltage levels.
3. Interchangeable genderless design
Makes assemble easy and reduces stock.
4. Flexible application
The connector can meet cable to cable connection and cable to board requirement.
5. Finger proof
Helps prevent fingers (or probes) from accidentally touching live contacts.
6. Molded side groves
Allows for a secure panel mounting fit.
Connector Parameters
Rated current (amperes): |
45-350A |
|
Rated voltage (volts): |
600V |
|
Contact barrel wire size (AWG) : |
3/0-20(AWG) |
|
Contact material: |
copper, plate with silver |
|
Insulation material: |
PC |
|
Flammability: |
UL94-V0 |
|
Life |
without load (contact/disconnect cycles): |
To 10,000 |
with load (hot plug 250 cycles & 120V): |
20-100A |
|
Average contact resistance (micro-ohms): |
<500 |
|
Insulation resistance: |
5000MΩ |
|
Average connectiondisconnection(N) |
30-280N |
|
Connector holding force(lbf) |
200-5000 N Min |
|
Environment temperatures(℃) |
-20℃...+75℃ |
|
Connector Application
This series of connector meets strict with UL, CUL, CCC certification which can be used safety in logistics communication, power-driven tools,UPS system Electric vehicles, medical equipment AC/DC power etc of widely industry and the most area around the world.
Company Instruction : NBC, a professional manufacturer of Connector for decades.
NBC electronic technologic Co.,Ltd, founded in the beginning of the 21st century, is a comprehensive high and new technology enterprise that specializing in designing, developing, manufacturing and marketing of high power connectors, which mainly engaged in various types of Anen Power Connector and cable assemblies.
Today, as a result of innovative design and development, NBC has evolved into a valued supplier for a wide variety of markets including Back-up Power Connector, Telecom/Datacom Connector and the Material Handling Industries' Connector and so on.
NBC has established a reputation for high quality products, on-time deliveries, and excellent customer service. As a result of modern manufacturing techniques and rigorous quality control measures, NBC assures customers receive the quality connectors they deserve. As a global company dedicated to best environmental practice, NBC has taken steps to meet the RoHS directive for virtually all of their products.
NBC looks forward to the challenges posed by the new technologies of the future and will continue its century long tradition of design excellence and superior customer support to meet customers’ needs in the filed of connector and other series.
Our Service
<1> R&D capability to provide customer total solution.
<2> In-house capability on high precision metal stamping, heat treatment, plastic injection and tooling design and fabrication.
<3> Strong capability on headband spring and other hardware design and manufacturing. Full series high current power connector manufacturer.
Packing & Shippment
.Standard Connector Packing for Carton
.100%/ 70%/ 30% T/T in advance through HSBC registed in HongKong.
FAQ
<1> Are you factory or trading company?
A: we are factory. Located in No.20,2 alley, Nanxin Road, the third Industrial Area, NanZha, Humen town, Dongguan city, Guangdong and welcome for your visit.
<2> How to purchase our cargo?
A: You can mail your requirement to our marketing address and we will response you in 12 hours less than 12 hours. Or dial to our office telephone 0769-85117870-8005.
<3> How does your factory do regarding quality control?
A: Our factory gained the ISO9001 in 2008 and ISO14001 in 2012. And our connector and raleted products have got the certifications of UL, CUL, SGS, CE, RoHS and TUV, for the better serve to customers all round the world.
