1. Introduction

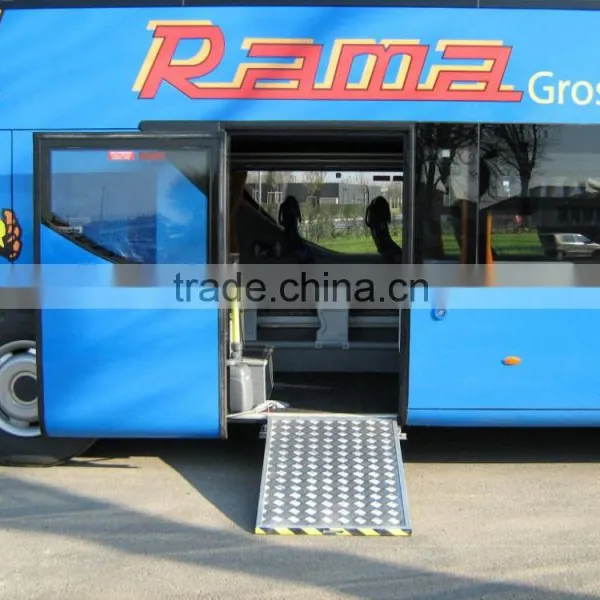

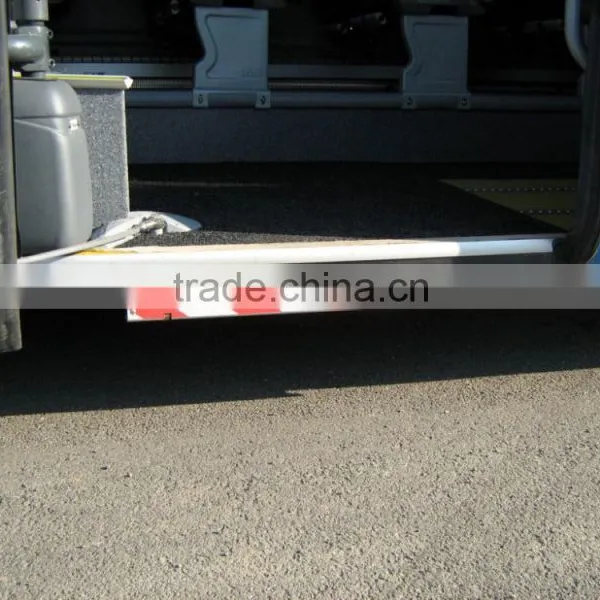

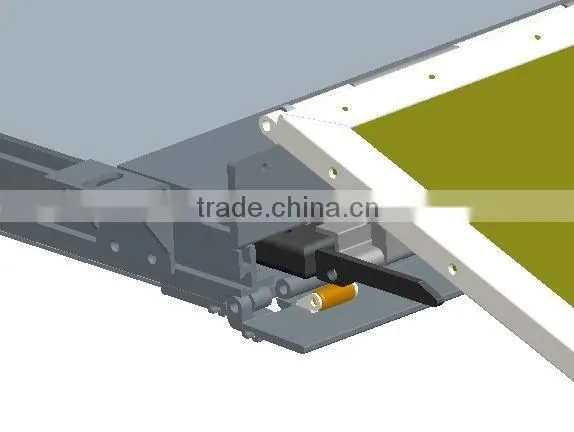

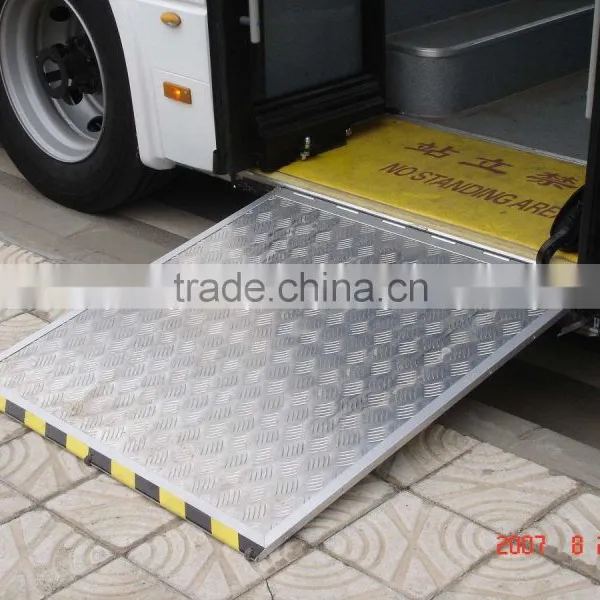

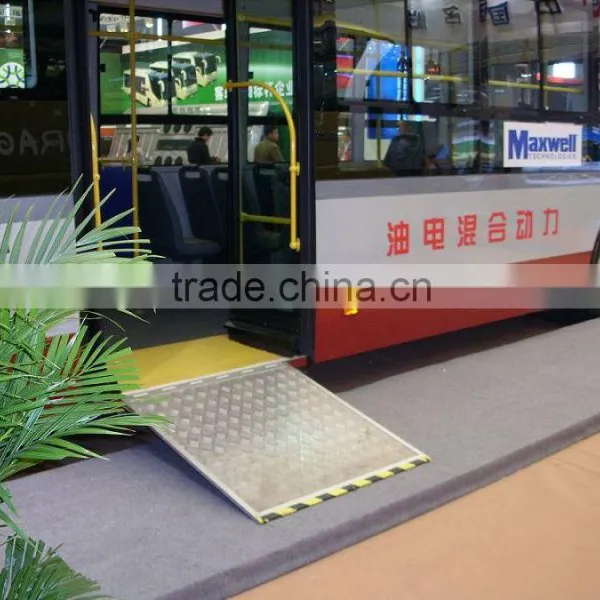

Electric wheelchair ramp can be applied on low-floor city bus and installed underside of passenger door step. When vehicle arrives at stop, the driver control the switch, and then platform can be extended and retracted smoothly. When the platform reach working position, the rear-end of ramp will raise automatically to eliminate height of threshold of passenger door so as to ensure rear-end of platform level up to vehicle floor, convenient for wheelchair to access vehicle.
This electric wheelchair ramp has got two patents (Patent NO. ZL 02 2 83133.9 and ZL 2006 20005099.5).
2. Technical Parameter
Unit: mm
Model |
Platform Net Size (A×B) |
Overall Width (C) |
Overall H eight (D) |
Overall Length (E) |
Loading Capacity |
Own Weight |
EWR-L1 |
1035*1008 |
1125 mm |
70 mm |
1428 mm |
350 Kg |
50 Kg |
3.Safety Function:
Ø Adopt anti-skid aluminum plate on the surface of platform
Ø With sound and flashlight alarm during operation of wheelchair ramp
Ø With danger alarm on the outer-edge of ramp
Ø In the course of the ramp extends, if it touches any barrier, the ramp will retract automatically. For a moment, it will extend again. If this status repeats 3 times, then the ramp retracts to the rest position for safety.
Ø The ramp is interlocked with passenger door.
4.Manual Function:
Ø When the driving motor is invalid, the ramp can be retracted manually.
5. Installation Requirements
Unit: mm
Model |
Net Width of Door |
Accessible Width Under Vehicle |
Accessible Height Under Vehicle |
Accessible Depth Under Vehicle |
Remark |
EWR-L1 |
1010 |
1125 |
200 |
1500 |
Basic model |
XINDER
Xinder-Tech was established in 2001
Xinder-Tech is an ISO 9001: 2000 compliant company
working on the project of ISO/TS 16949:2009
XINDER is designing, manufacturing and selling disabled products for conversion mobility.
Is the leader of this line in China, and our products has taken up 95% of inner market.
XINDER Main Products
wheelchair ramps,
wheelchair lifts,
electric steps and manual folding step,
wheelchair restraint systems,
manual control system,
wheelchair roof topper,
Turning seat and lifting seat
Packaging Details:
1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases
Delivery and shipping Details:
1)Usually be shipped by maritime transport
2)if it is landlocked countries, generally
land and sea transport.
3)15—30 days after confirmation of the purchase order
we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat
We use Carbox for Electric step,wheelchair restraint system

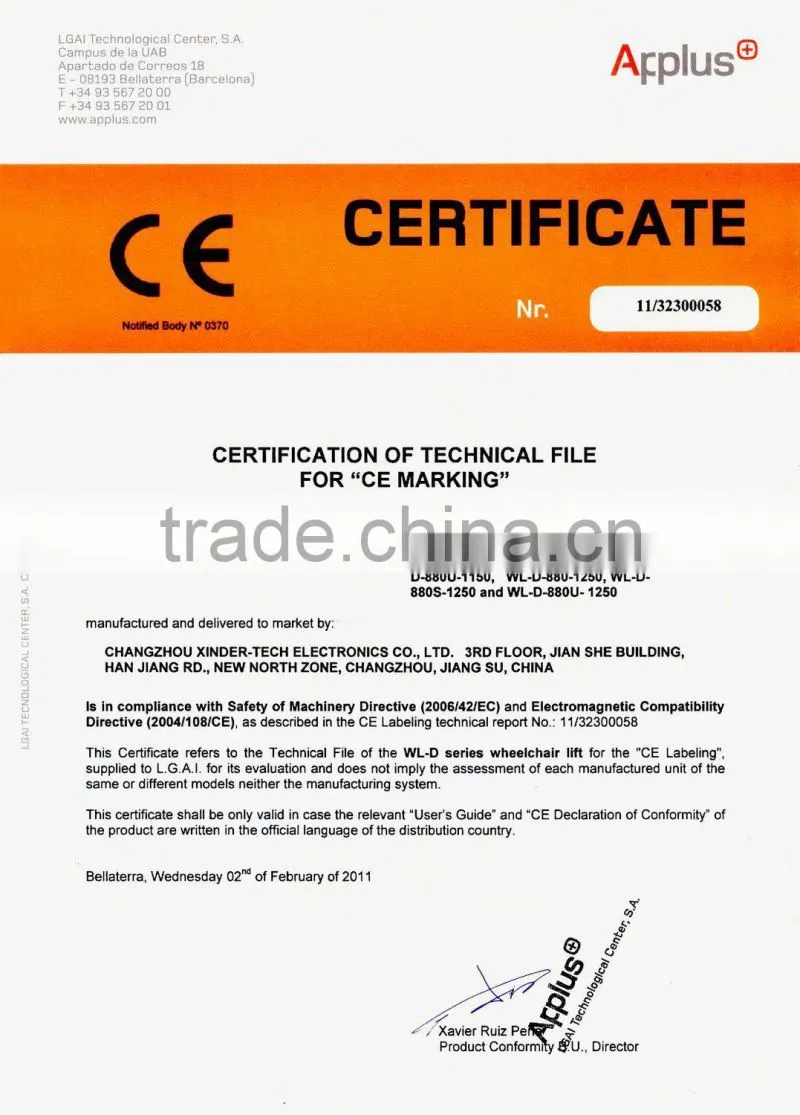

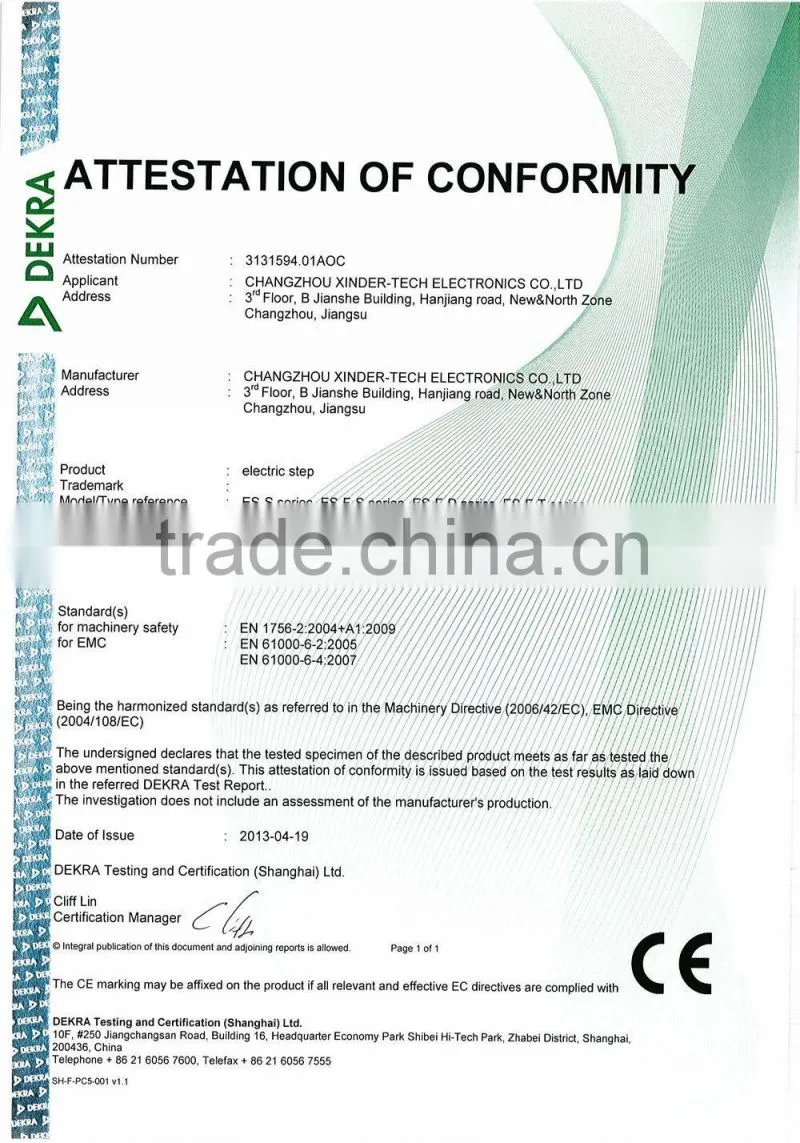

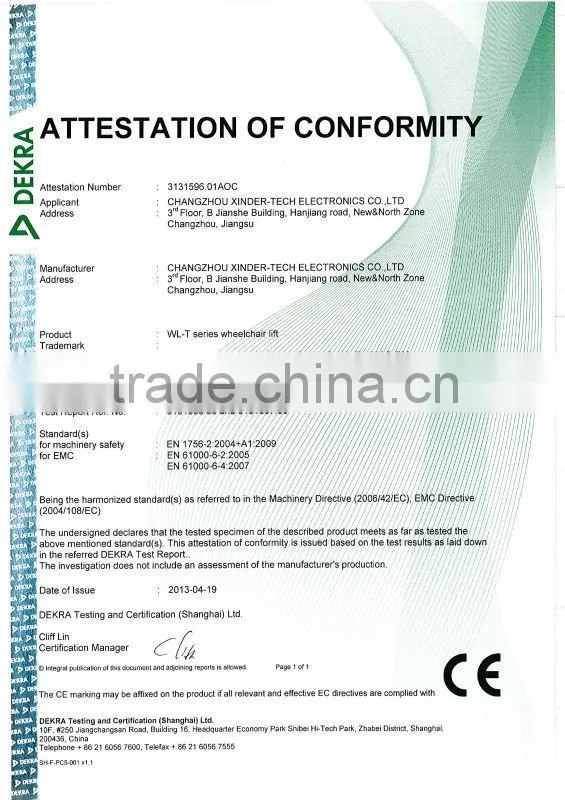

WHELECHAIR LIFT CE CERTIFICATE ES CE CERTIFICATE
WL-UVL Series Wheelchair Lift
FMWR series Manul Wheelchair Ramp
X-801-1 Wheelchair Restraint System
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take 5 - 15 days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.
Q5.Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
Q6. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
if you are interested in our products, we will provide satisfactory service for you!
1)- One year warranty for whole machines.
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users
6)- 24hours online services
