1.INTRODUCTION

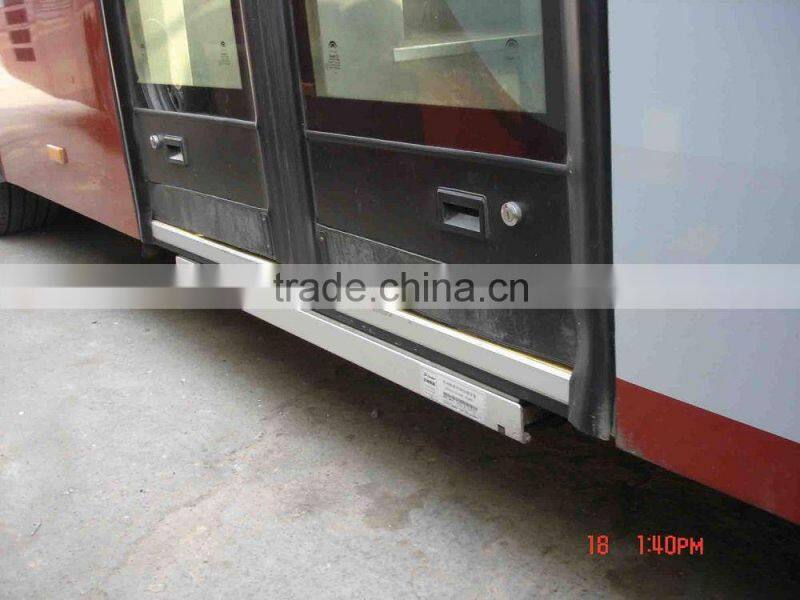

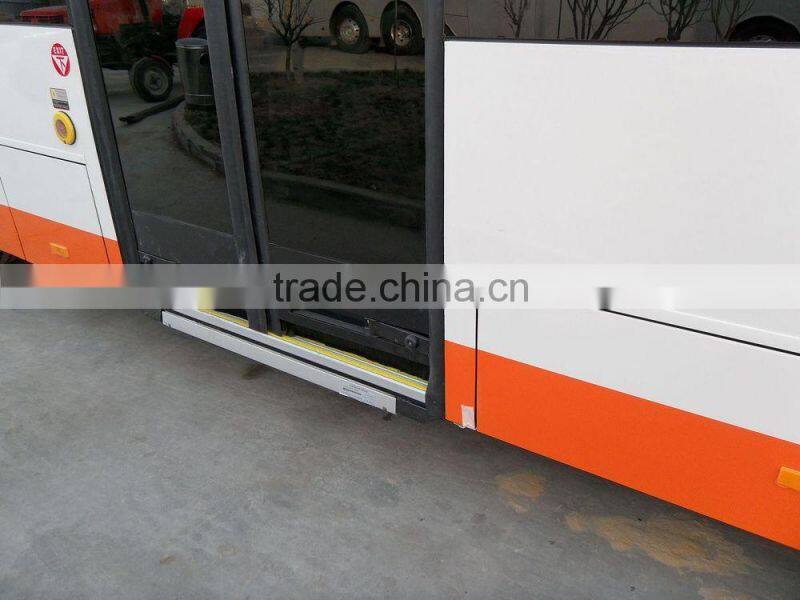

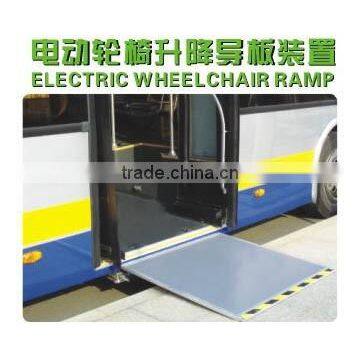

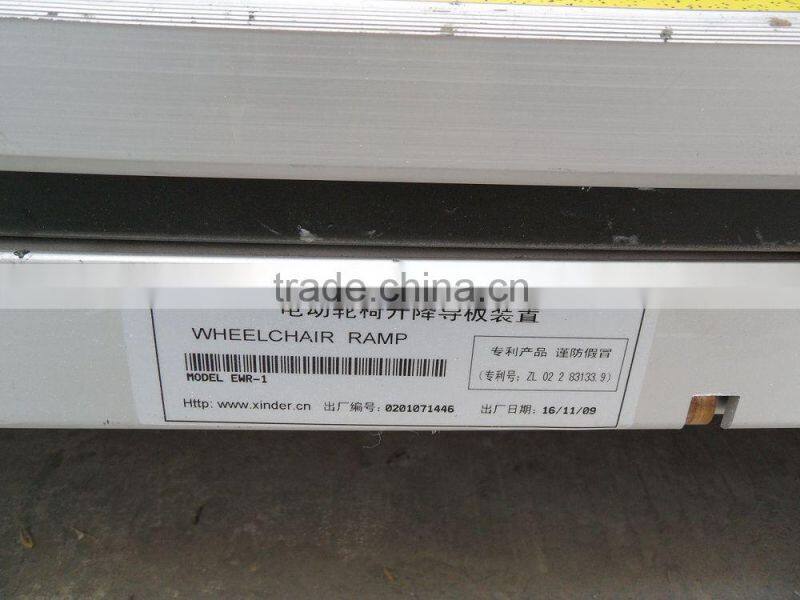

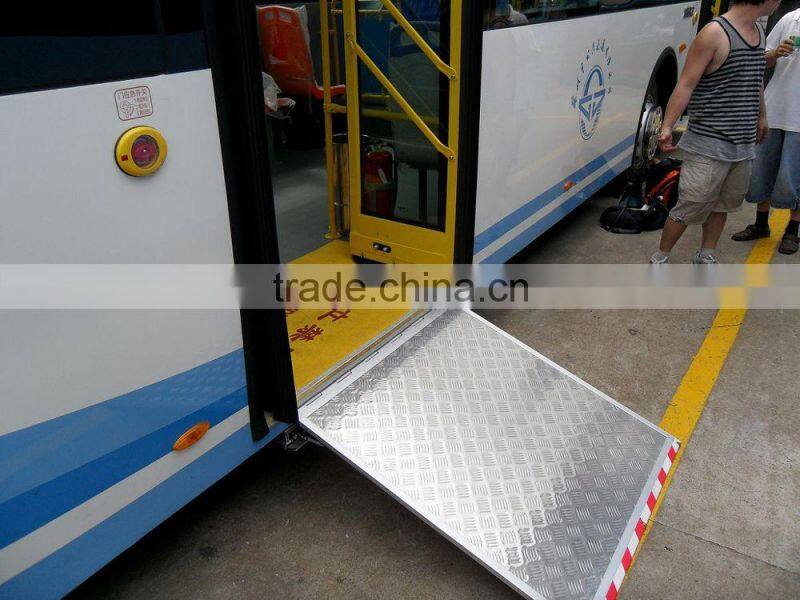

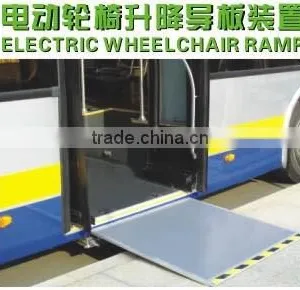

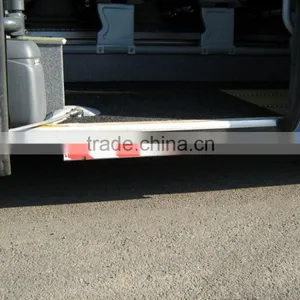

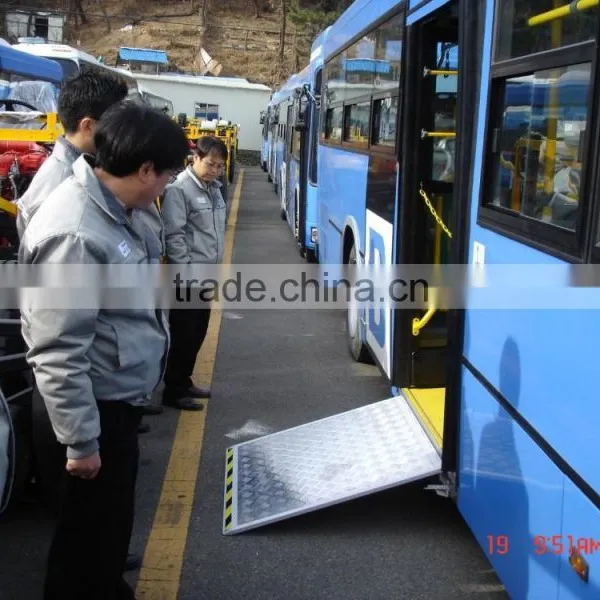

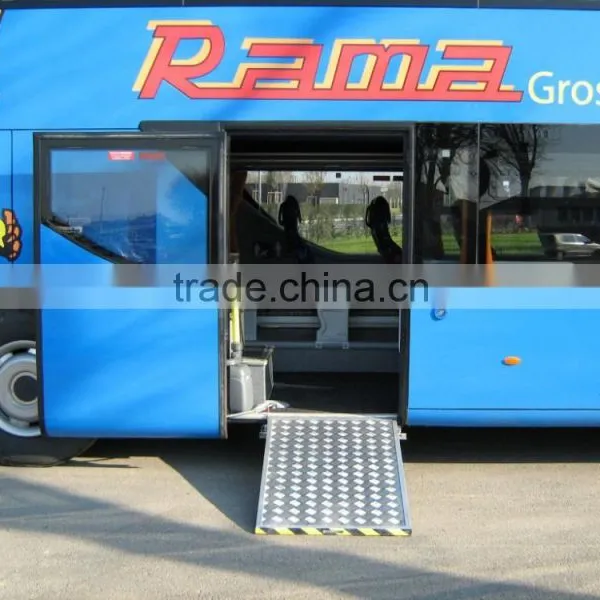

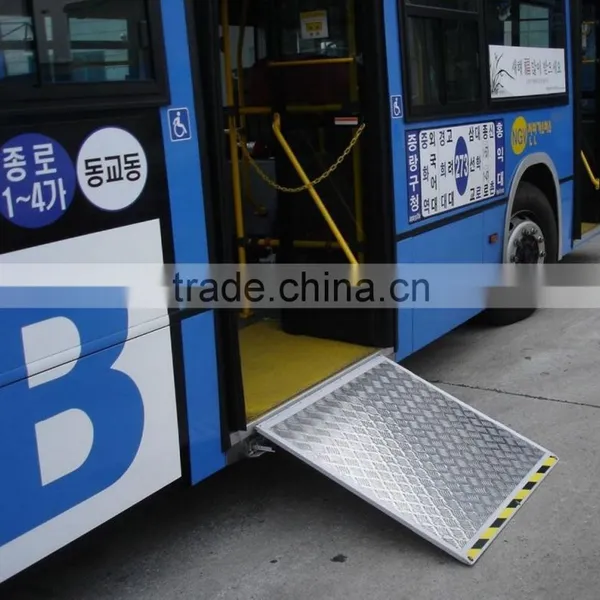

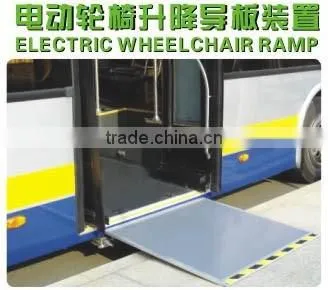

The EWR-L Electric wheelchair ramp is installed under the vehicle step floor for low-floor city bus. It is chain drove. After extending, its end can keep the same height with the vehicle floor; so wheelchair can get in or out with no barrier. The ramp platform is made of non-skid aluminum and its load capacity reaches 350kg. The EWR-L series ramp has got the CE certificate and two patents (Patent NO. ZL 02 2 83133.9 and ZL 2006 20005099.5). Thus, Passengers can enjoy its convenience regardless of its safety problem.
2.ADVANTAGES
- Interlock function with the vehicle door
- Light and non-skid aluminum platform with good corrosion resistance
- 350kg load capacity
- With sound and flashlight alarm during operation of wheelchair ramp
- With danger symbol on the outer edge of ramp

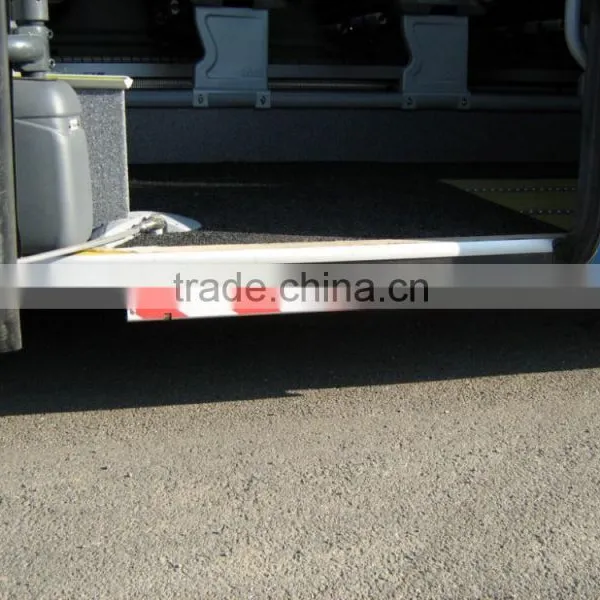

- Little installation space: it is installed under the vehicle floor, taking up no vehicle space; if not used, no requirement of the vehicle floor height.
- Manual operation supported

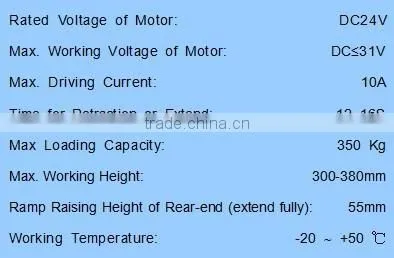

3. SPECIFICATIONS

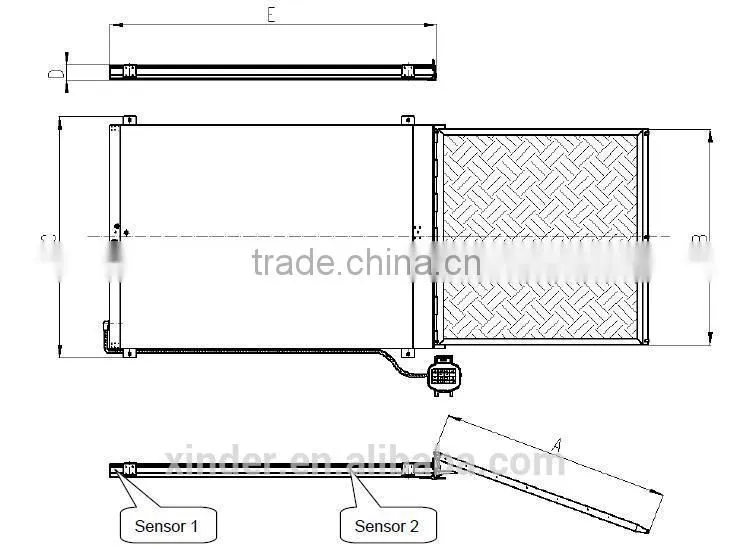

(Unit: mm)
Standard Model |
Platform Net Size (A×B) |
Overall Width (C) |
Overall Height (D) |
Overall Length (E) |
Loading Capacity |
Own Weight |
Drive Mode |
EWR-L1 |
1035*1008 |
1125 mm |
70 mm |
1428 mm |
350 Kg |
50 Kg |
Electric motor and chain |
Note: EWR-L1 is our standard model. If you need other specificataions, please feel free to contact us.

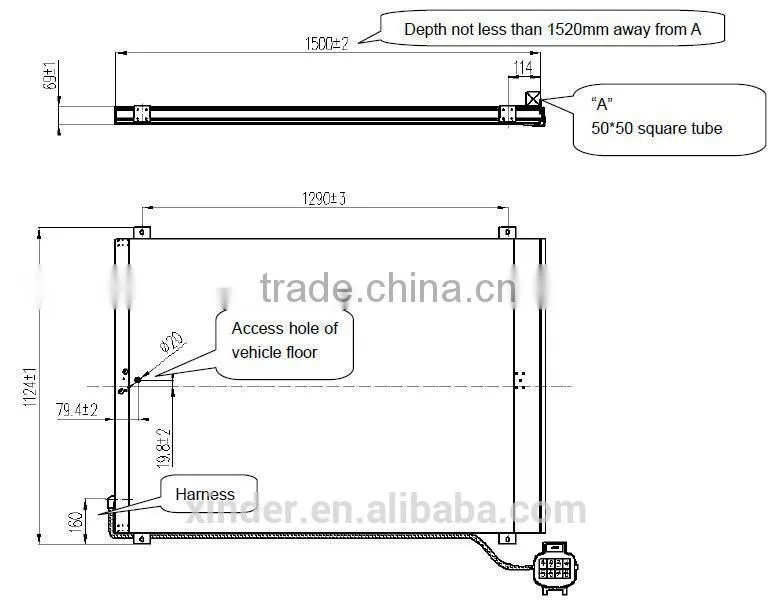

4. INSTALLATION REQUIREMENTS
Model |
Net Width of Door |
Accessible Width Under Vehicle |
Accessible Height Under Vehicle |
Accessible Depth Under Vehicle |
Remark |
EWR-L1 |
1010 |
1125 |
200 |
1500 |
Basic model |
Note:
- Installed under vehicle floor;
- If extended, the platform can eliminate door threshold height to ensure platform rear-end same height with the vehicle
