Auto Accessory Electric Ramp for buses for disabled people, ISO 16949

wheelchair ramp used for bus, special for low floor city bus has gained the chinese paten(the number of the paten: Zl 02 2 83133.9) the products has the running test of extending and retracting 10000 times continually, and been proved with good reliability and safty.

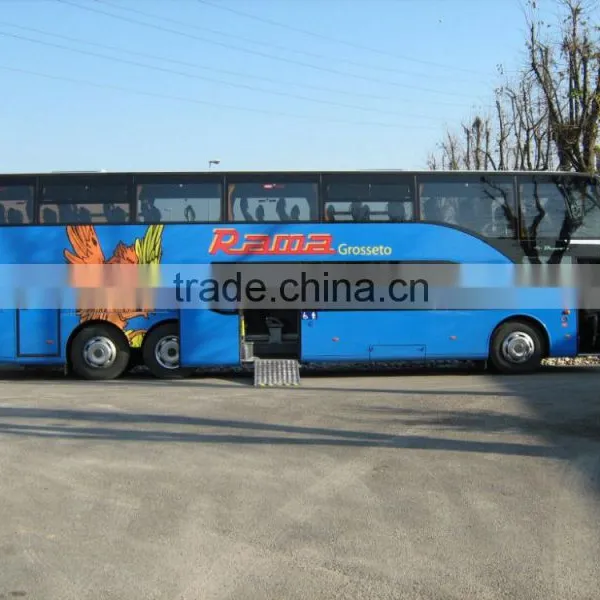

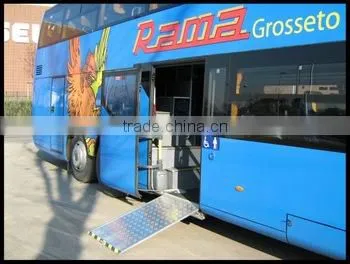

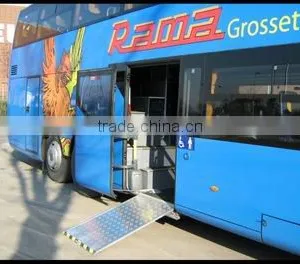

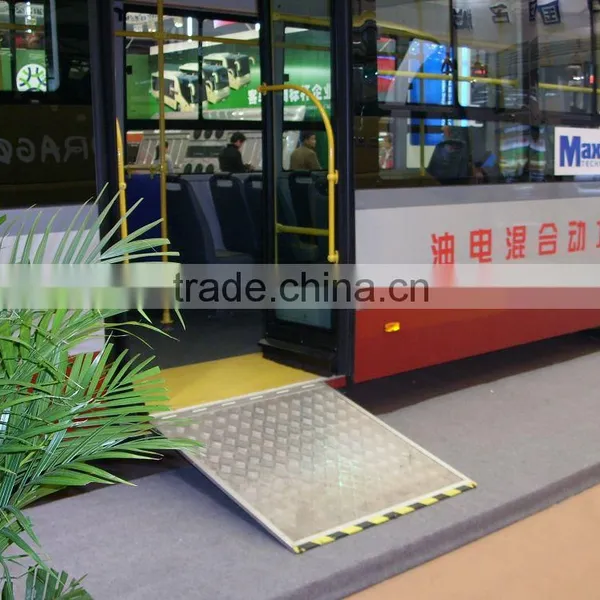

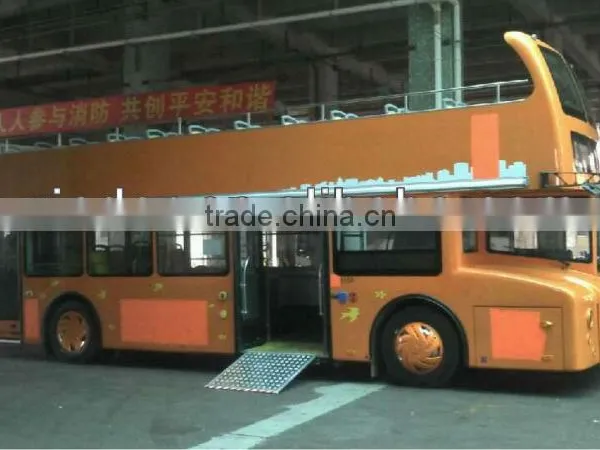

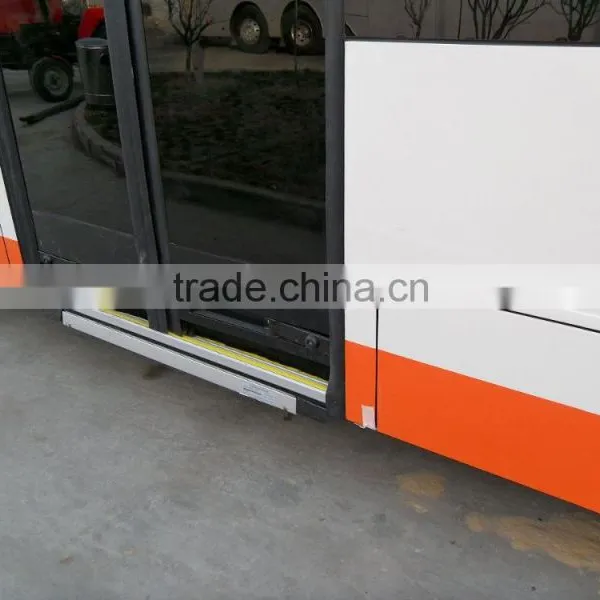

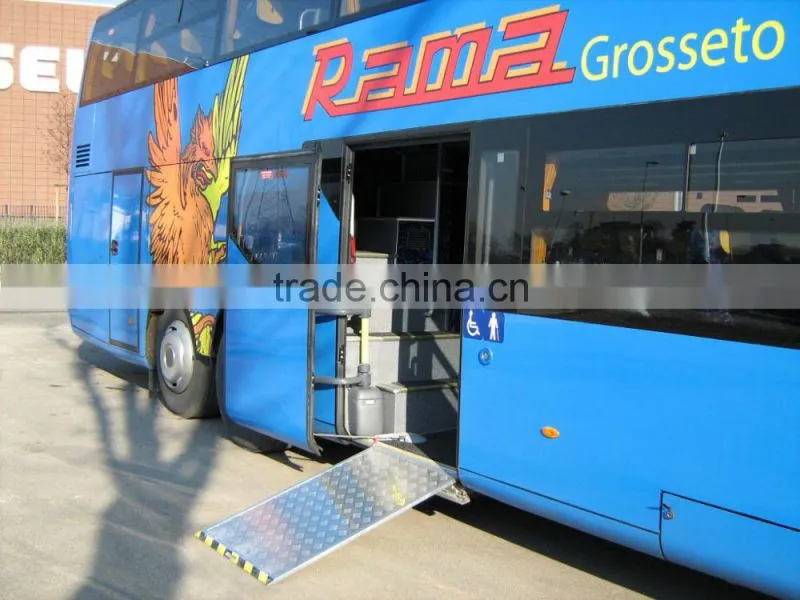

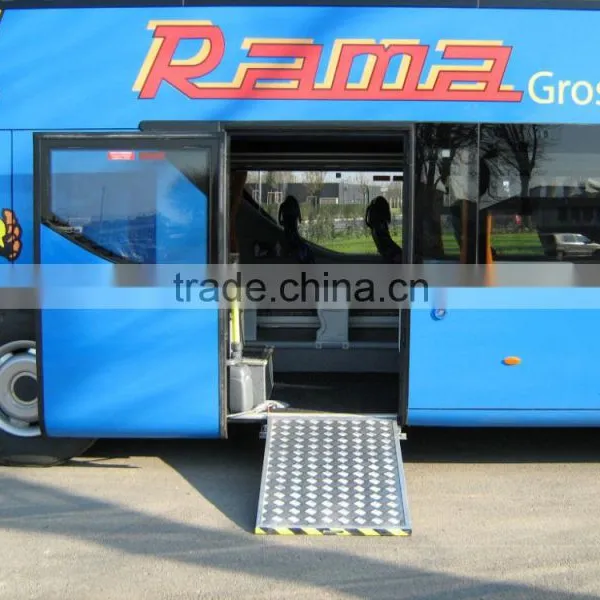

The electric wheelchair ramp is suitable foe the lower-floor buses. It is installed under the step of passenger door. The platform of the ramp can extant steadily. When the platform extants to the final position, the rear end of the platform is lifted automatically in order to eliminate the heigh of the threshold,so that the lever of the rear of the platform as the lever of the floor.

Advantages :

. it extents and retracts steadily

. be made of stainless steel, aluminium alloy and aluminium honeycomb.

. it is light and anti-corrrosive.

. the computer program and the proximity sensor can realize the costomizable electronic control

. EMC tested in accordance with 95/94 standards.

Details :

. length&width&height:1428mm*1125*70mm

. length&width of the platform :1035*1008mm

. working height:300mm-380mm

. loading capacity:350kg

. lifting height of the rear end of the platform:55mm

. dead weight:50kg

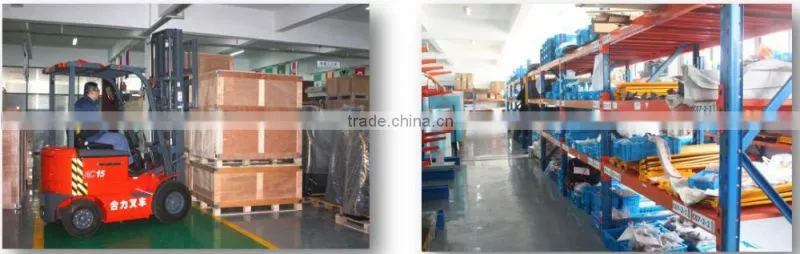

Our factory :

Packing   :

1) Internal packaging:be packed air bubble film inside first

2) External packaging:be packed in wooden cases

Our service :

1)- One year warranty for whole products

2)- Providing free quick-wear part.

3)- Low charge for continue maintenance when warranty is expired.

4)- Exclusive engineer support at any time.

5)- We can provide free training to end-users

6)- 24hours online services

FAQ :

1. What's the delivery time?
In 10 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C,  West Union, Paypal and other ways .
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, with better price.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size, also we give support of OEM ,  and can paste agent's label on the products .

5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
