1.INTRODUCTION

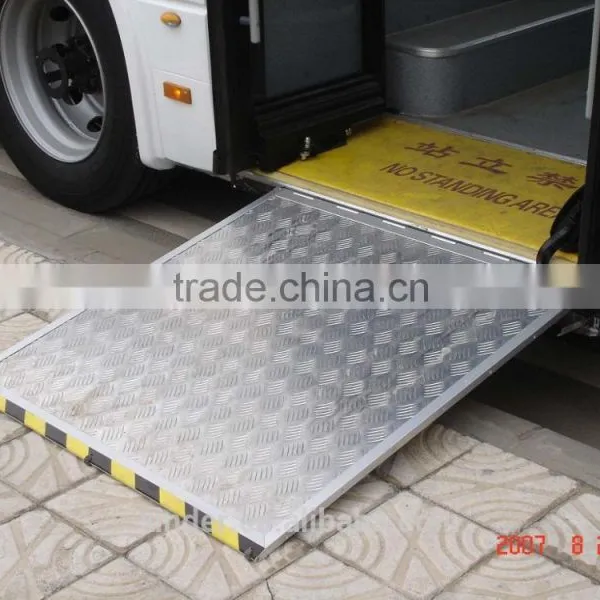

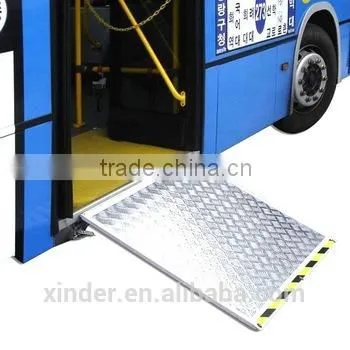

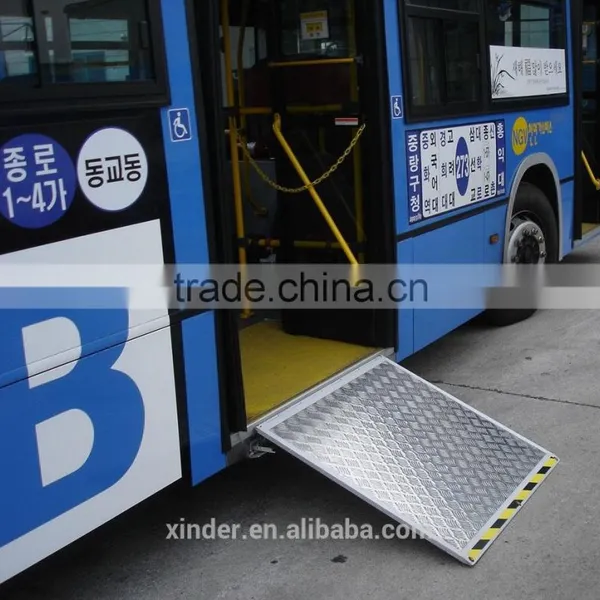

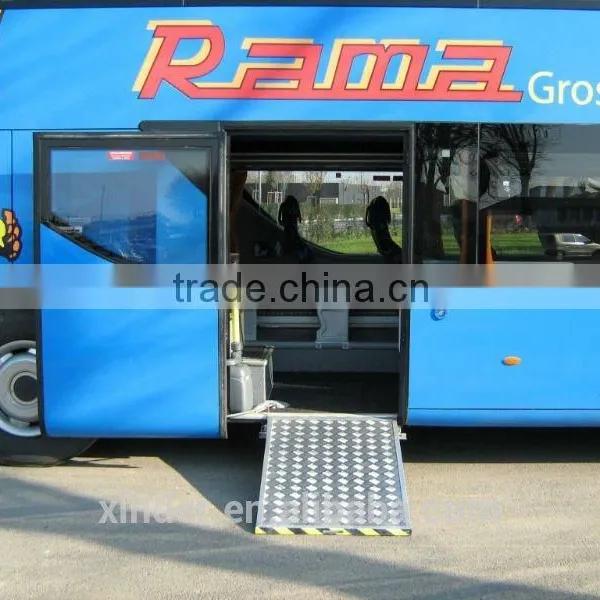

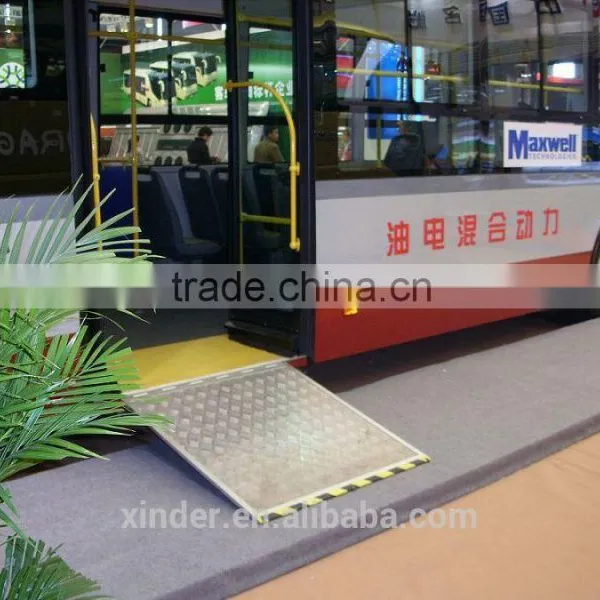

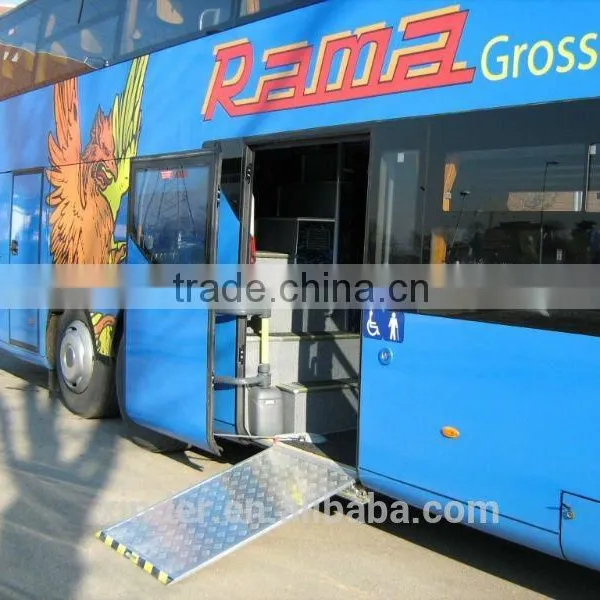

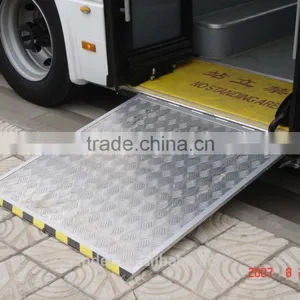

The EWR-L Electric wheelchair ramp is installed under the vehicle step floor for low-floor city bus. It is chain drove. After extending, its end can keep the same height with the vehicle floor; so wheelchair can get in or out with no barrier. The ramp platform is made of non-skid aluminum and its load capacity reaches 350kg. The EWR-L series ramp has got the CE certificate and two patents(Patent NO. ZL 02 2 83133.9 and ZL 2006 20005099.5). Thus, Passengers can enjoy its convenience regardless of its safety problem.
2.ADVANTAGES
- Interlock functionwith the vehicle door
- Light and non-skid aluminum platformwith good corrosion resistance
- 350kg load capacity
- Withsound and flashlight alarmduring operation of wheelchair ramp
- With danger symbolon the outer edge of ramp
- Little installation space:it is installed under the vehicle floor, taking up no vehicle space; if not used, no requirement of the vehicle floor height.
- Manual operation supported
3. SPECIFICATIONS
(Unit: mm)
Standard Model |
Platform Net Size (A×B) |
Overall Width (C) |
Overall Height (D) |
Overall Length (E) |
Loading Capacity |
Own Weight |
Drive Mode |
EWR-L1 |
1035*1008 |
1125 mm |
70 mm |
1428 mm |
350 Kg |
50 Kg |
Electric motor and chain |
Note: EWR-L1 is our standard model. If you need other specificataions, please feel free to contact us.
4. INSTALLATION REQUIREMENTS
Model |
Net Width of Door |
Accessible Width Under Vehicle |
Accessible Height Under Vehicle |
Accessible Depth Under Vehicle |
Remark |
EWR-L1 |
1010 |
1125 |
200 |
1500 |
Basic model |
Note:
- Installed under vehicle floor;
- If extended, the platform can eliminate door threshold height to ensure platform rear-end same height with the vehicle
Our factory :
Packing :
1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases
Shipping :
1)Usually be shipped by maritime transport and air transport .
2)15—30 days after confirmation of the purchase order by sea
Our service :
1)- One year warranty for whole products
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users
6)- 24hours online services
FAQ :
1. What's the delivery time?
In 10 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, West Union, Paypal and other ways .
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, with better price.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size, also we give support of OEM , and can paste agent's label on the products .
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
