WL-D-880U electric hydraulic wheelchair lift with CE certificate for van minibus
- 500 Unit / Units per Month
- SHANGHAI
- Credit Card
Product Details
Design: | Two Post | Type: | Double Cylinder Hydraulic Lift | Certification: | CE |
Lifting Capacity: | 350kg | Lifting Height(mm): | 880mm | Overall Width(mm): | 720mm |
Place of Origin: | Jiangsu, China | Brand Name: | XINDER | Model Number: | WL-D-880U |
Warranty: | 12 Months |
Product Description
A. INTRODUCTION

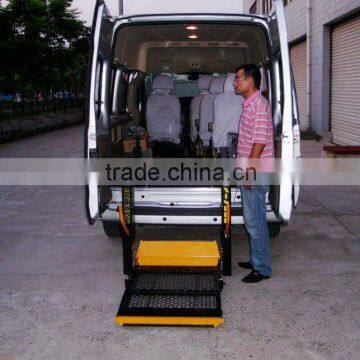

WL-D-880U (Dual-Arm) wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility. It can be installed on the side or back of the car.
Its full-electric and hydraulic control systemsupports both wire control and remote control. Manual backup systemis remained for any emergency.
Its unique foldable platform will be half folded when stowed or not used, so that you may still get a clear vision of car back or side outside scene and decrease the possible blind spots.
All its main hinge joints use theself-lubricating bearings, taking you little care on maintenance.
The dual-arm wheelchair lift has got the CE certificate and 350kg load capacity, so you may be assured to enjoy the convenience our products may bring to you.
B. ADVANTAGES
- CE certificated
- Auto entrance & exit dam-boardsto ensure your safe up and down
- Powerful hydraulic pumpto achieve smooth, stable lift for heavy wheelchairs and scooters
- All-steel frame with handrailsto offer increased comfort and security
- Non-skid and foldable platformallowing safe and unblocked access to your car
- Self-lubricated bearings at all major hinge joint to take less care and offer long-term durability
- High-gloss polyester powder coat finishto prevent corrosion
- Built-in manual backup systemin case of any emergency
- Low noise working and easy operation
C. SPECIFICATIONS
Model | WL-D-880U-1150 | WL-D-880U-1250 |
Overall Length (A) | 500mm | 500mm |
Overall Width (B) | 1135mm | 1235mm |
Overall Height (C) | 1130mm | 1130mm |
Platform Size(D*E) | 1150*720mm | 1250*820mm |
Required Door | 1000mm | 1100mm |
Operation | Electric and manual | |
Hydraulic | Inside vehicle | |
Drive of Entrance | Automatic | |
Own Weight | 134kg | |
Max Working | 14 Mpa | |
Max Lift Height | 880 mm | |
Rate Voltage | 12-24 V | |
Loading Capacity | 350kg | |
Application | Van, minibus | |
Packing | wooden case; |
