Xinder WL-UVL-700-S-1090 hydraulic Wheelchair Lift For Van
- 500 Set / Sets per Month
- shanghai
- Credit Card
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | xinder | Model Number: | WL-UVL-700-S-1090 |
Lift Mechanism: | Other | Lift Drive / Actuation: | Hydraulic | Power: | 0.8KW |
Rated Loading Capacity: | 350kg | Min. Lifting Height: | 550mm | Max. Lifting Height: | 980mm, 700 mm |
Table Size: | 750*1090 | Overall Dimensions: | 1660x1135x166mm | Weight: | 134kg |
Certification: | CE Certificate | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Wheelchair Lift For Van
(WL-UVL-700-S-1090)
1. INFORMATION

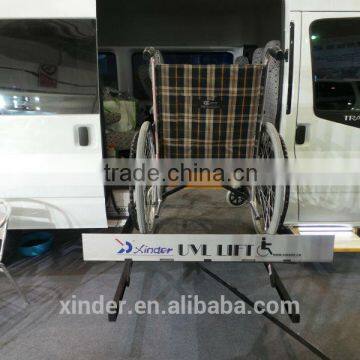

WL-UVL-700-S-1090 wheelchair lift is specially designed for van, and it is installed under vehicle floor at the side door. It is operated easily, safe and reliable, with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating switches.
This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.
It uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline. With optional standard kit manual emergency devices, if the lift without power, it will be operated manually by more than 2 staffs.
2. ADVANTAGES
- Ø Protection: Electric front and rear rollstop, and side bars
- Ø Safety: No-skid aluminum honeycomb platform and handrail (option)
- Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
- Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
- Ø Side handrails (Option), for increased comfort and security
- Ø Sound and flash light alarm during operation of platform
- Ø Built in manual backup system

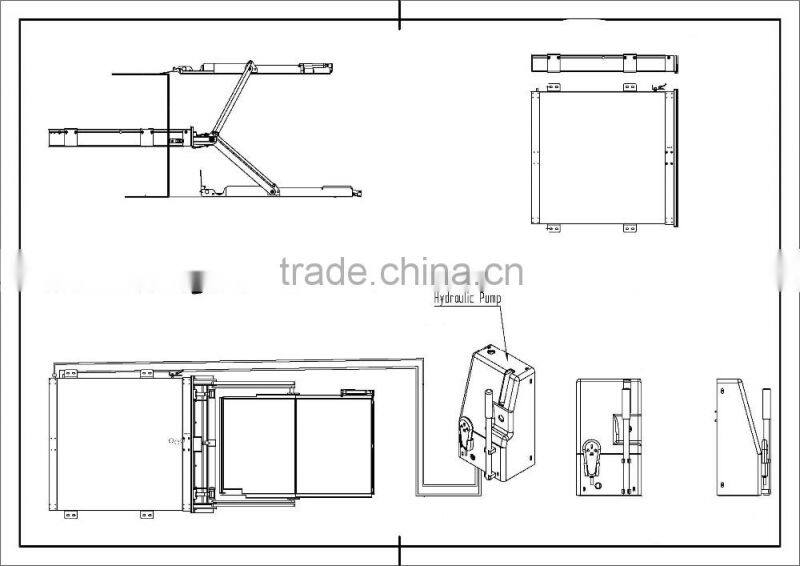

3. MAIN DIMENSIONS
Model | Platform Size | Max. up stroke A | Max. down stroke B | Length required to install lift C | Height of lift rear end D | Height of lift front end E | Distance between guide frame and up fitting surface F | Distance between front fitting surface and spindle of main arm G | Installation Position |
WL-UVL-700-S-1090 | 751*1090 | 505 | 500 | 1636 | 133 | 167 | 53 | 75 | At side door, under chassis |
4. TECHNICAL SPECIFICATIONS
Model | Voltage | Max loading | Max lifting height | Motor power | Pressure | Cylinder |
UVL-700-S-1090 | 12V/24V | 350 Kg | 1000mm | 0.8Kw | 2500Psi | Φ60X70 unidirectional operation |
- Ø Raise lift platform: motor drive, hydraulic function;
- Ø Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;
- Ø Raise platform manually: operate manual pump;
- Ø Lower platform manually: rotate button of manual pressure release valve with specialized tool;
- Ø Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);
- Ø Model & Capacity of hydraulic oil: L-HV46
Our factory :
Packing :
1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases
Shipping :
1)Usually be shipped by maritime transport and air transport .
2)15—30 days after confirmation of the purchase order by sea
Our service :
1)- One year warranty for whole products
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users
6)- 24hours online services
FAQ :
1. What's the delivery time?
In 2 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, West Union, Paypal and other ways .
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, with better price.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size, also we give support of OEM , and can paste agent's label on the products .
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
