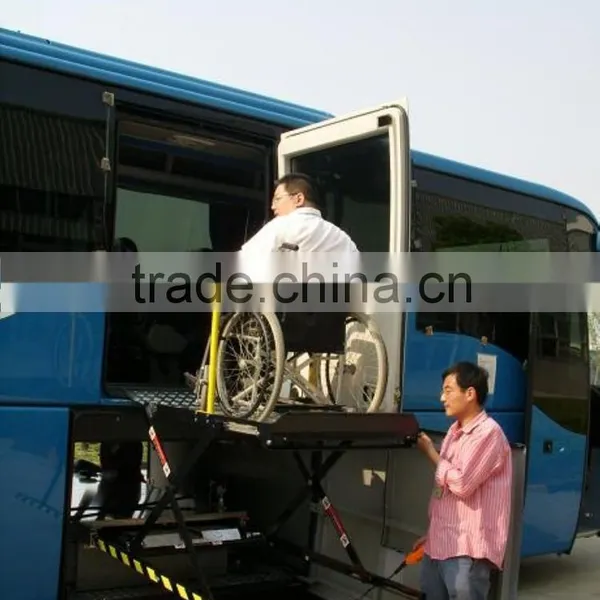

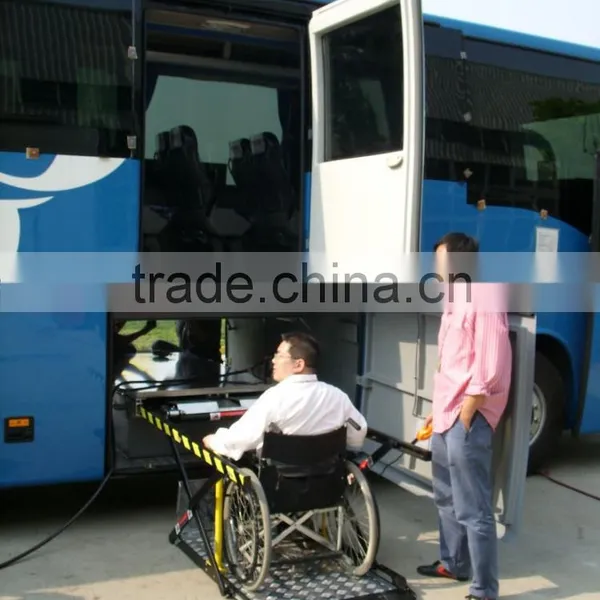

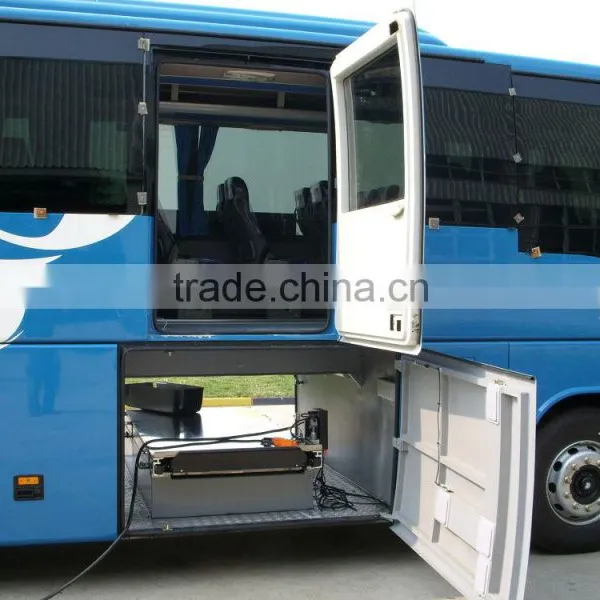

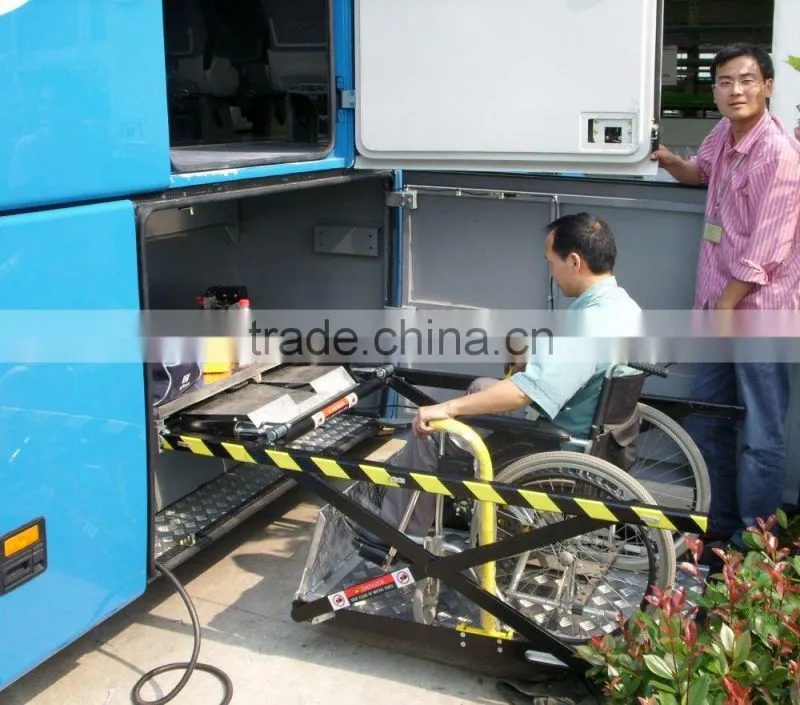

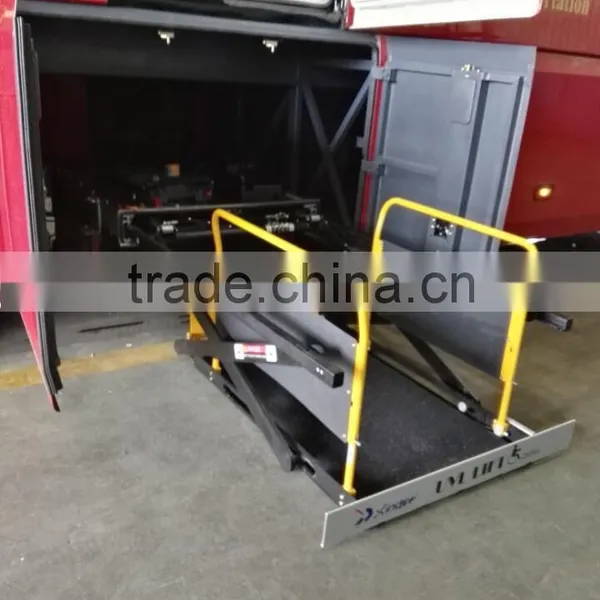

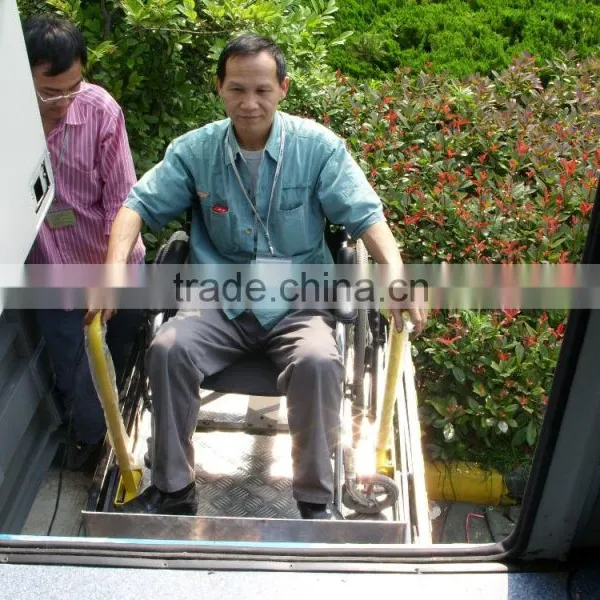

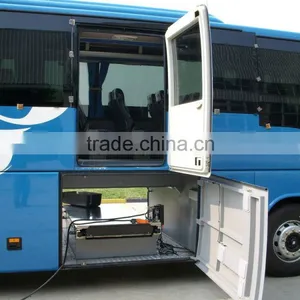

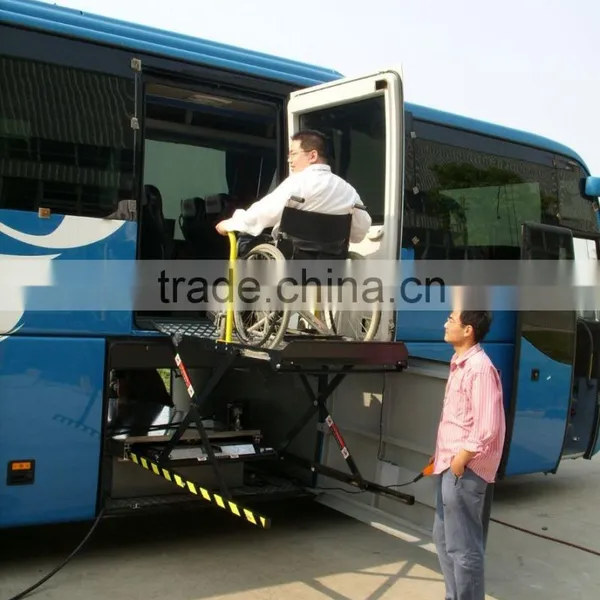

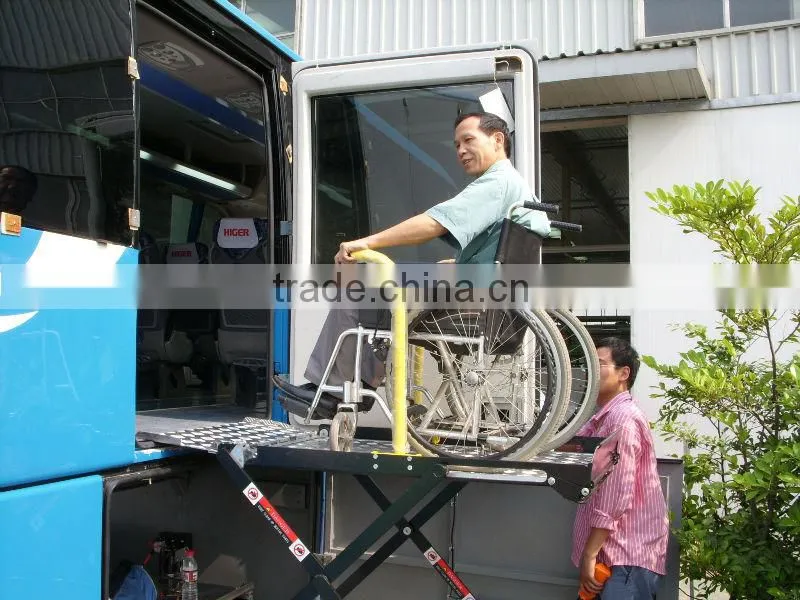

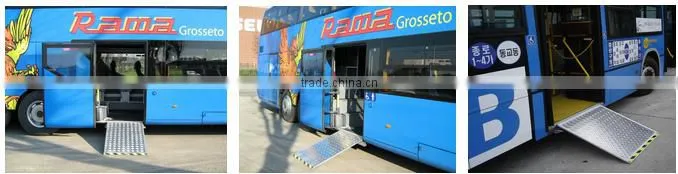

Help CenterWL-UVL Series Under Vehicle Hydraulic Wheelchair Lift for Bus
Related Products
-
WL-UVL Series Power Wheelchair Lift for BusUS$ 2,000 - 5,000MOQ: 1 Set -
WL-UVL-700-S-1090 Bridge Scissors Auto Mobile Platform Lift for the Disabled On Electric Wheelchairs for MVP VanUS$ 2,000 - 4,000MOQ: 1 Set
-
WL-UVL Series Hydraulic Bus Wheelchair Lift for Wheelchair Disabled PassengersUS$ 2,000 - 5,000MOQ: 1 Set
-
CE WL- UVL-700 Electric Wheelchair Lift for BusesUS$ 2,000 - 5,000MOQ: 1 Set
-
WL-UVL Series Plataforma de Elevacion Hydraulic Platform Lift for the ElderUS$ 2,000 - 5,000MOQ: 1 Set
ADVANTAGES
Ø Electric outboard rollstop and automatic inboard rollstop
Ø Super thin compact design
Ø No-skid aluminum honeycomb platform
Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Ø Side handrails (Option), for increased comfort and security
Ø Sound and flash light alarm during operation of platform
Ø Built in manual backup system
TECHNICAL SPECIFICATION
Model |
Voltage |
Motor power |
Pressure |
Cylinder diameter&stroke |
|
UVL-700/1000 /1300 |
12V/24V |
0.8Kw |
2500Psi |
Φ60X70 unidirectional operation |
Max lifting load |
Max lifting height |
Voltage |
Len & width of platform |
350 Kg |
700 -1600mm |
12/24 V |
751*1220/751*1297mm |
¨Raise lift platform: motor drive, hydraulic function;
¨ Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;
¨ Raise platform manually: operate manual pump;
¨ Lower platform manually: rotate button of manual pressure release valve with specialized tool;
¨ Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);
¨ Model & Capacity of hydraulic oil: L-HV46
Packaging &shipping
we use national standard package, , very safety when ship by sea or by air .
Main Market
North America / South America/ Southeast Asia/ Africa /Mid East/ South asia
Main customers:
America, Mexico , Brazil , Turkey, Egypt ,Colombia, Germany, Italy, Chile, Peru, Kuwait, South Korea, Indonesia, India, Malaysia, Singapore, Pakistan, Russia…
Our Service
1, one year warranty , spare parts also include in this period of time
2, proving free quick –wear parts.
3, low charge for continue maintenance when warranty is expired.
4, Exclusive engineer support at any time.
5, we can provide free training to end-users.
6, 24 hours online service.
Related products link:

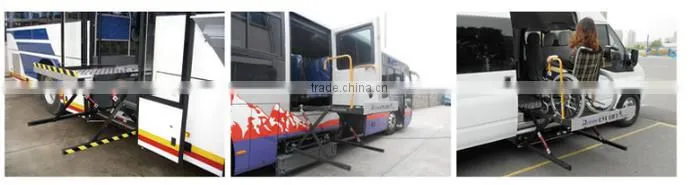

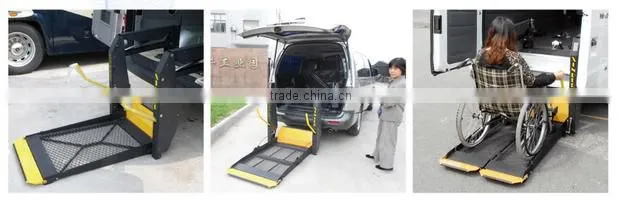

WL-D-880 Wheelchair lift for van (click the products name)
WL-UVL wheelchair lift for bus

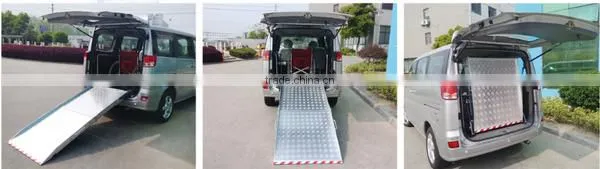

BMWR Folding Manual Wheelchair ramps for van
EWR Wheelchair ramp for bus

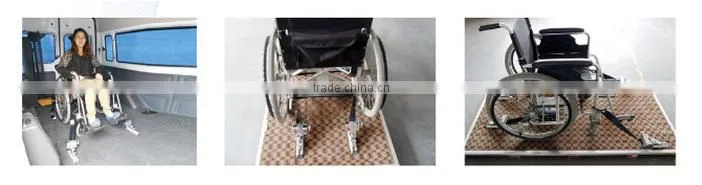

Wheelchair tie down system

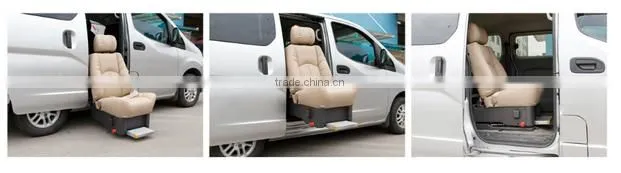

S-Swivel lifting seat
