Easy-operated Wheelchair Loader for Foldable Wheelchairs

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	xinder
Model Number	WC-1

1.INTRODUCTION:

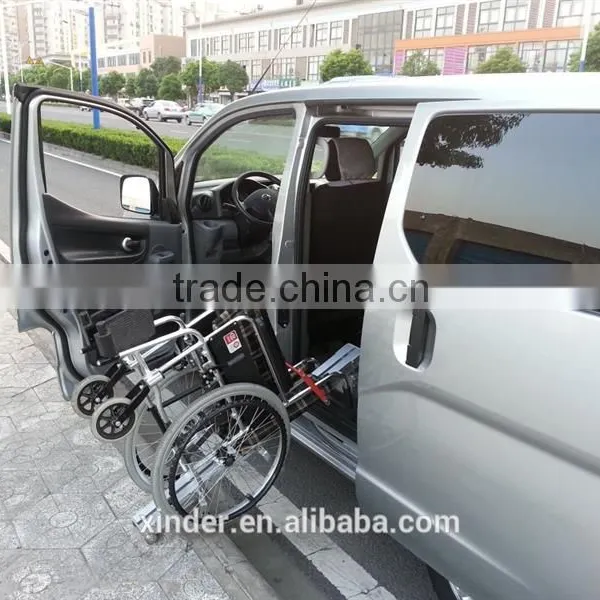

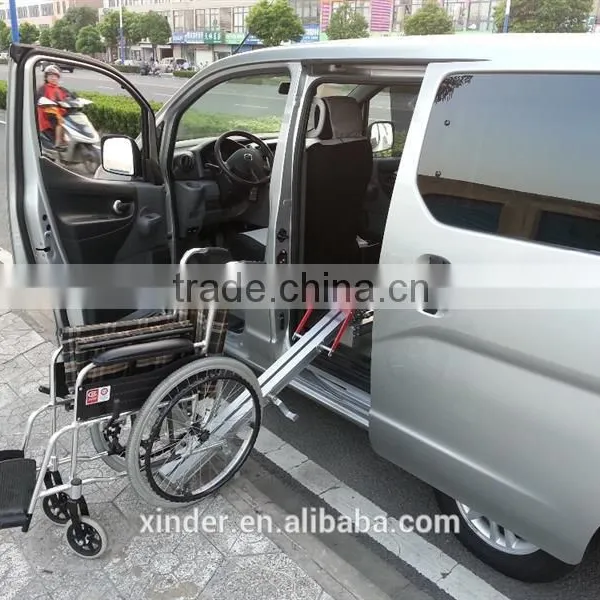

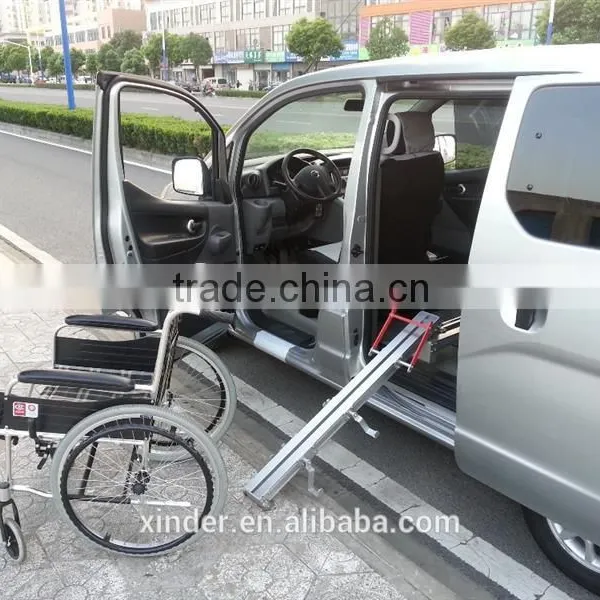

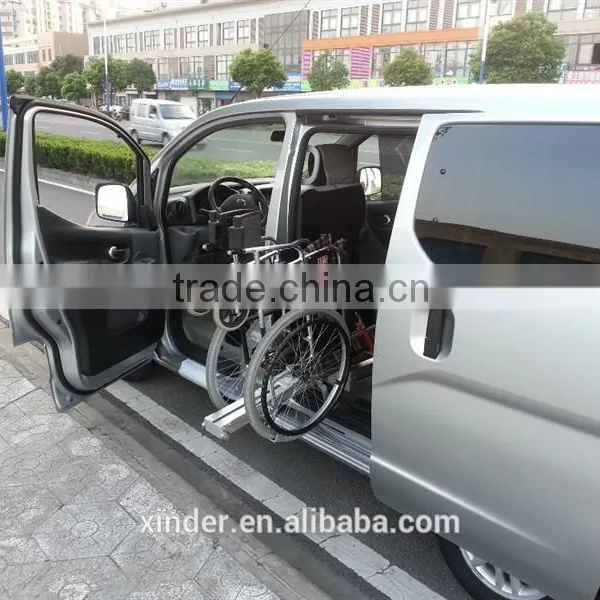

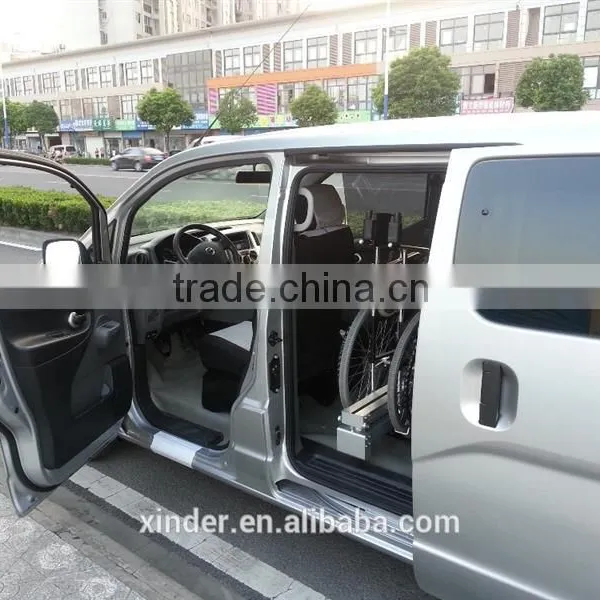

This wheelchair easyloader is a kind of simple device to provide easy wheelchair stowage. It can electrically store wheelchair inside of car even the wheelchair is heavier and bigger.
This wheelchair easyloader is installed inside of car, the seats after the driver’s have to be removed to provide enough space for this device.
The operation is fully electrical. It can be operated by remote control to take out or stow wheelchair inside of car.

2.OPERATION:

Press “UP” to take wheelchair out of car

Press “DOWN” to stow wheelchair inside of car

During easyloader working, pressing any key will stop the working, and press key again, the working will start.

3.TECHNICAL SPECIFICATIONS:

Model	Dimension (LWH mm)	Volt	Motor Power	Wheelchair Max Weight	Max Floor Height	WorkingTime
WL-1	1350220250	12-24V	80W	25 KG	≤500mm	20 s

4.APPLICATIONS:

Electric side door, the seats after the driver’s have to be removed

HONDA ELYSION; MAZDA 5; MAZDA 8; LUXGEN 7 MPV; NISSAN NV200
