Carbide Drill Bits, Drill Bit Set, Masonry Drill Bit With Detailed Specifications for Sale

Carbide Drill Bits, Drill Bit Set, Masonry Drill Bit With Detailed Specifications for Sale thumbnail-1
Carbide Drill Bits, Drill Bit Set, Masonry Drill Bit With Detailed Specifications for Sale thumbnail-2
Carbide Drill Bits, Drill Bit Set, Masonry Drill Bit With Detailed Specifications for Sale thumbnail-3
Carbide Drill Bits, Drill Bit Set, Masonry Drill Bit With Detailed Specifications for Sale thumbnail-4
Carbide Drill Bits, Drill Bit Set, Masonry Drill Bit With Detailed Specifications for Sale photo-1
Carbide Drill Bits, Drill Bit Set, Masonry Drill Bit With Detailed Specifications for Sale photo-2
Carbide Drill Bits, Drill Bit Set, Masonry Drill Bit With Detailed Specifications for Sale photo-3
Carbide Drill Bits, Drill Bit Set, Masonry Drill Bit With Detailed Specifications for Sale photo-4
US$ 100 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Kaishan
Model Number:
R32
Contact Supplier Request Quote Chat Now
Shaanxi Kaishan Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai OR Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Kaishan
Model Number R32
Type Other, rock drill bit
Material Cobalt Steel Alloys
Use Other, mine and hard rock



   Carbide Drill Bits, drill bit set, masonry drill bit with Detailed Specifications for sale



Product Description





Carbide Drill Bits, drill bit set, masonry drill bit with Detailed Specifications for sale

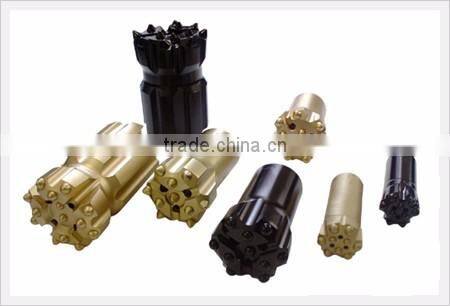

  • Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
  •  Widely used drifting and tunneling
  • Bit face design is ideal for medium-hard to hard abrasive rock

 Carbide Drill Bits, drill bit set, masonry drill bit with Detailed Specifications for sale

Specification of Carbide Drill Bits, drill bit set, masonry drill bit with Detailed Specifications for sale

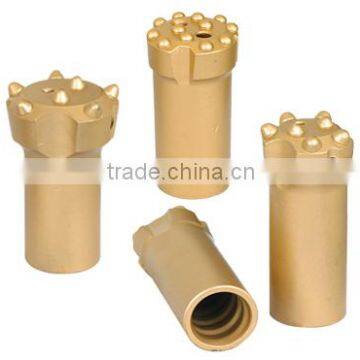

1.With carbide buttons hot pressed on bits bodies, Tapered Button Bits have a very good drilling performance and long life time. Different diameters and taper degrees are available to suit different applications in mining, quarrying etc. We can supply long skirt and short skirt Tapered Button Bits.



2.Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much

    longer primary drilling time and higher drilling efficiency, so that the button bit is popular among the

    users.



3.Tapered equipment affords drillers the ability to change drilling bits whilst still using the same

   drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper

   sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will

   prevent the bit from spinning.



4 • Suitable for small hole range

   • Widely used in Dimensional Stone Quarrying Industry
   • Widely used in Underground Mining Industry

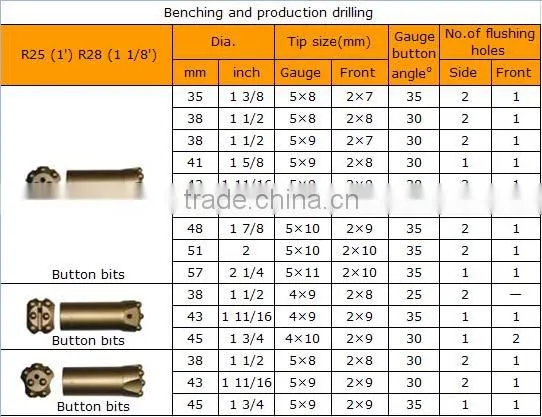

Techonical parameters of Carbide Drill Bits, drill bit set, masonry drill bit with Detailed Specifications for sale



Button Bit
Carbide
Shape
Dimension
Buttons*Button Dia
 Gauge Flushing
Hole		 Approx's
Weight
Dia Gauge Front Buttons
mm inch EA mm EA mm Angle Front Side kg Ib
Taper
Bit		 32 1 1/4' 5 7 2 7 32 1 1 0.3 0.75
35 1 3/8' 5 7 2 7 32 1 1 0.3 0.75
38 1 1/2' 5 8 2 7 35 1 1 0.4 0.85
41 1 5/8' 5 8 2 7 35 1 1 0.4 0.85
45 1 3/4' 5 9 2 7 35 1 1 0.5 0.95

Flat Face		 R32 38 1 1/2' 5 8 2 8 30 3 1 0.5 0.95
41 1 5/8' 6 8 3 8 30 3 1 0.6 1.05
45 1 3/4 6 10 3 8 30 3 1 0.7 1.15
48 1 7/8' 6 10 3 9 30 3 1 0.95 1.4
51 2' 6 10 3 9 30 3 1 1 1.45

Flat Face		 T38 64 2 1/2" 8 11 4 10 35 2   1.5 1.95
70 2 3/4" 8 10 6 10 35 2   1.7 2.15
76 3" 8 11 4 11 35 2   1.9 2.35
T45 76 3" 8 11 4 11 35 2   2.3 2.75
83 3 1/2" 9 13 6 13 35 2   3.7 4.15

Flat Face		 T38 89 3 1/2" 9 11 6 10 35 3   3.7 4.15
102 4" 9 12 6 12 35 3   4.6 5.05
T45 76 3" 7 12 4 11 35 3   3.7 0.75
89 3 1/2" 9 11 6 10 35 3   4.8 5.25
102 4" 9 12 6 12 35 3   3.4 3.85
T51 89 3 1/2" 9 11 6 10 35 3   4.4 4.85
102 4" 8 12 7 12 35 3   4.8 5.25

Flat Face		 T38 102 4" 8 12 5 12 35 4   4.8 5.25
102 4" 8 12 5 12 35 4   4.8 5.25
T45 102 4" 8 14 5 12 35 4   5.4 5.85
115 4 1/2" 8 14 7 13 35 4   4.5 4.95
T51 102 4" 8 14 5 12 35 4   5.3 5.75
115 4 1/2" 8 14 7 13 35 4   6.1 6.55
127 5" 8 14 7 14 35 4   1.42 1.87

Drop Center		 T0.7538 64 2 1/2" 6 11 4 10 35 3   2.6 3.05
76 3" 6 11 4 11 35 3   2.4 2.85
T45 76 3" 7 12 3 11 35 3   2.4 2.85
76 3" 6 11 3 11 35 3   3.6 4.05

Drop Center		 T38 89 3 1/2" 8 12 5 11 35 4   5.5 5.95
102 4" 8 14 5 11 35 4   2.4 2.85
T45 76 3" 6 12 3 12 35 3   3.4 3.85
89 3 1/2" 8 12 4 11 35 4   4.8 5.25
102 4" 8 14 4 12 35 4   4.8 5.25
115 4 1/2" 8 14 4 13 35 4   6.2 6.65
127 5" 8 14 4 14 35 4   6.8 7.25
T51 89 3 1/2" 8 12 4 11 35 4   3.3 3.75
102 4" 8 14 4 12 35 4   4.7 5.15
115 4 1/2" 8 14 4 13 35 4   5.7 6.15
127 5" 8 14 4 14 35 4   6.7 7.15

Heavy Duty		 T38 64   6 12 3 11 35   3 1.7 2.15
76   8 12 4 12 35 2   2.7 3.15
89 3 1/2" 8 13 5 13 35 2   3.9 4.35
T45 76 3" 6 12 6 14 35 2   2.3 2.75
89 3 1/2" 8 13 5 13 35 2   3.4 3.85
102 4" 8 14 6 11 35 2   4.5 4.95
T51 89 3 1/2" 8 13 6 11 35 2   3.2 3.65
102 4" 8 14 6 11 35 2   4.7 5.15
115 4 1/2" 8 14 6 11 35 2   6 6.45
127 5" 8 14 7 14 35 2   6.3 6.75

Retract
Flat
Face		 T38 64 2 1/2" 6 11 4 10 35 2   1.9 2.35
76 3" 8 11 4 11 35 2   3 3.45
T45 76 3" 8 11 4 11 35 2   2.8 3.25

Retract
Flat
Face		 T38 89 3 1/2" 8 11 6 11 35 4   5.5 5.95
102 4" 8 12 6 11 35 4   7.2 7.65
T45 89 3 1/2" 8 11 6 11 35 4 1 5.4 5.85
102 4" 8 12 6 11 35 4 1 7 7.45
115 4 1/2" 8 14 7 13 35 4 1 8.7 7.15
T51 89 3 1/2" 8 11 6 11 35 4 1 5.2 5.65
102 4" 8 12 6 11 35 4 1 6.9 7.35
115 4 1/2" 8 14 7 12 35 3   8.3 8.75
127 5" 8 14 7 14 35 3   10.1 10.55

Retract
Drop
Center		 T38 64 2 1/2" 6 11 3 10 35 4   1.9 2.35
76 3" 6 11 3 11 35 4   3 3.45

Retract
Drop
Center		 T38 64 2 1/2" 8 11 4 10 35 4   1.9 2.35
76 3" 8 11 4 11 35 4   3 3.45
89 3 1/2" 8 11 4 11 35 4 1 5.3 5.75
95 3 3/4" 8 11 4 11 35 4 1 6 6.45
102 4" 8 12 4 11 35 4 1 7.1 7.55
117 4" 8 14 4 13 35 4   8.7 9.15
127 5" 8 14 4 14 35 4   10.5 10.95
T45 76 3" 8 11 4 11 35 4   2.9 3.35
89 3 1/2" 8 11 4 11 35 4 1 5.3 5.75
95 3 3/4" 8 11 4 11 35 4 1 6 6.45
102 4" 8 12 4 11 35 4 1 7 7.45
110 4 5/16" 8 12 4 12 35 4 1 8 8.45
115 4 1/2" 8 14 4 13 35 4   8.7 9.15
T51 89 3" 8 11 4 11 35 4 1 5.2 5.65
102 3 1/2" 8 12 4 11 35 4 1 6.9 7.35
115 4 1/2" 8 14 4 13 35 4   8.2 8.65
127 5" 8 14 4 14 35 4   10 10.45










Packaging & Shipping



Carton or wooden box packaged



 Delievery time :15 -20 days after the payment



Our Services

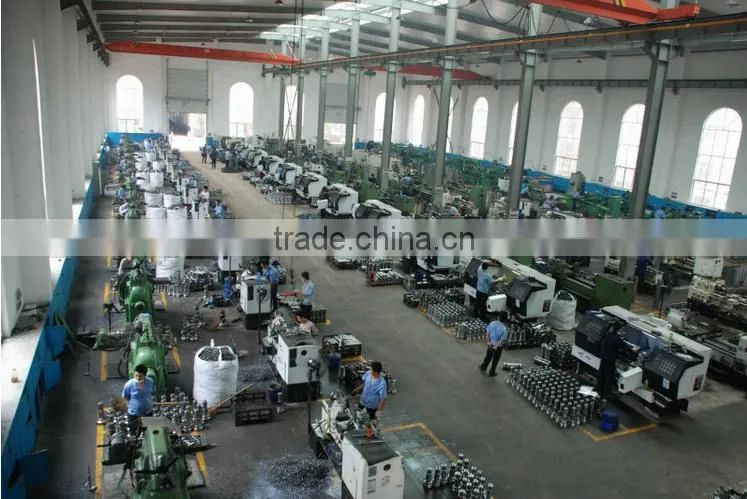

Established in the year of 2007, Shaanxi Kaishan Mechanical & Electrical Co.,Ltd.backing by Kaishan groups strong technical power and special geographic locations advantage as inland port, Founded and Registered on the basis of form kaishan group Xi’an office, with personal financing.
