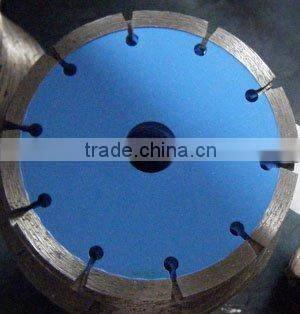

Help CenterCutting for Marble Granite and All Kinds of Hard Stones
Related Products
-
Diamond Saw BladesUS$ 10 - 40MOQ: 200 Pieces -
4' Segmented Diamond Saw BladesUS$ 1 - 29MOQ: 200 Pieces
-
Diamond Saw Blades for Cutting Cullis Diamond ToolUS$ 3 - 23MOQ: 200 Pieces
-
Hot Press Sintered Diamond Saw BladesUS$ 1 - 19MOQ: 200 Pieces
-
188mm Turo Segmented Diamond Saw BladesUS$ 1 - 4MOQ: 200 Pieces
Specifications
Use: cutting for marble granite and all kinds of hard stonesSuitable for cutting various kinds of non-metal material such as granite, marble and ceramic and concrete, highly stable and efficient
We also can supply diamond tools for cutting various hard non-metal material, such as
granite,marble,sandstone,limestone,ceramic,tile,concrete,asphalt,refractory,etc.includes segmented blade, horizontal blade, continuous rim blade, turbo blade, with the feature of high efficiency, long using life and smooth cutting with no damage to the edge
Specifications |
|
|
|
|
| Unit: mm |
Outer Diameter | Hole Diameter | Segment Dimensions | Number of segment | Core Thickness | ||
Inch | Metric |
| Thickness | Height |
|
|
3″ | 80 | 20 | 1.8 | 7 | 6 | 1.2 |
4″ | 105 | 20 | 1.8 | 7.5 | 8 | 1.2 |
4″ | 110 | 20 | 1.8 | 12/10 | 6 | 1.2/1.3 |
4½″ | 114 | 20 | 1.8 | 12 | 8 | 1.2/1.4 |
5″ | 125 | 22.2 | 2.0 | 7.5 | 10 | 1.4 |
6″ | 150 | 22.2/25.4 | 2.1 | 7.5 | 11 | 1.4 |
7″ | 180 | 22.2/25.4 | 2.2 | 7.5 | 14 | 1.6/1.8 |
8″ | 200 | 22.2/25.4 | 2.4 | 7.5 | 14 | 1.6/1.8 |
9″ | 230 | 22.2/25.4 | 2.4 | 7.5 | 16 | 1.6/1.8 |
10″ | 250 | 22.2/25.4 | 2.6 | 7.5 | 18 | 1.8/2.0 |
12″ | 300 | 22.2/25.4 | 2.8 | 7.5 | 21 | 2.0/2.2 |
For speedily cutting granite, marble, ceramics, concrete, etc, with long service life.
