Air Compressor 1000l Tank
- ShangHai or NingBo
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KaiShan | |
| Type | Air Tank |
Product Description
Welcome to SHAANXI KAISHAN EQUIPMENT CO.,LTD.
Best quality goods, lowest price, perfect service.
Cooperation terms:
1.Price: FOB any port in china.
2. Minimum order: 1set.
3. Payment: T/T, L/C, O/A ect.
4. Shipping: 15-20days.

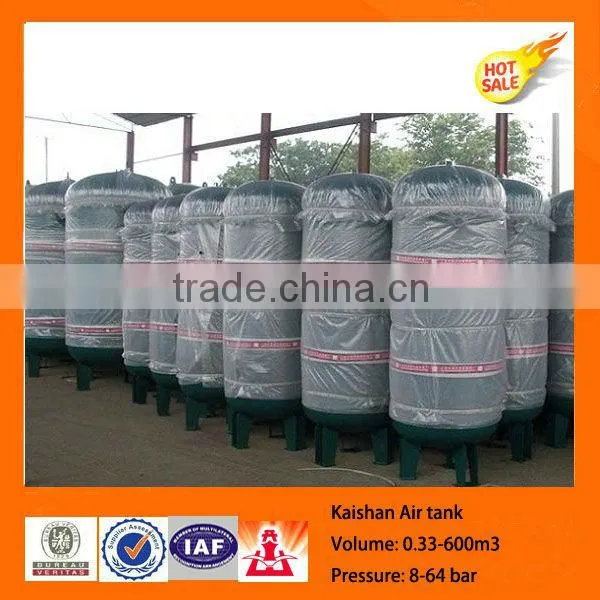

The main production volume V=0.33-600m3, various types of storage tank pressure of Pw=0.8 - 6.4Mpa.
For pressure vessel company can according to user needs, according to the AMSE or GB specification development and production ofvarious types of vehicle brake cylinders, air compressor oil and gas separator and various types of air storage tank and non-standardpressure vessel.
| O | Specifications | design temperature | high H1 | dimension Φ | air inlet | air outlet | support | lief valve connector | Nozzle of dyain valve | |||||
| volume/pressure | H2 | DN | H3 | DN | D | d | ||||||||
| 1 | 0.3/0.8 | 110 | 1594 | 550 | 642 | 65 | Rp1½ | 1242 | 65 | Rp1½ | 400 | 20 | Rp3/4 | R1/2 |
| 2 | 0.3/1.0 | 1594 | 642 | 1242 | ||||||||||
| 3 | 0.3/1.3 | 1598 | 644 | 1244 | ||||||||||
| 4 | 0.3/1.6 | 1598 | 644 | 1244 | ||||||||||
| 5 | 0.6/0.8 | 110 | 1905 | 700 | 680 | 65 | Rp1½ | 1550 | 65 | Rp1½ | 490 | 24 | Rp3/4 | R1/2 |
| 6 | 0.6/1.0 | 1907 | 681 | 1551 | ||||||||||
| 7 | 0.6/1.3 | 1909 | 682 | 1552 | ||||||||||
| 8 | 0.6/1.6 | 1907 | 681 | 1551 | ||||||||||
| 9 | 1.0/0.8 | 110 | 2365 | 800 | 730 | 80 | Rp1½ | 1960 | 80 | Rp1½ | 560 | 24 | Rp1 | R1/2 |
| 10 | 1.0/1.0 | 2367 | 731 | 1961 | ||||||||||
| 11 | 1.0/1.3 | 2367 | 731 | 1961 | ||||||||||
| 12 | 1.0/1.6 | 2367 | 731 | 1961 | ||||||||||
| 13 | 1.5/0.8 | 110 | 2727 | 900 | 736 | 80 | Rp2" | 2296 | 80 | Rp2" | 630 | 24 | Rp1 | R3/4 |
| 14 | 1.5/1.0 | 2729 | 737 | 2297 | ||||||||||
| 15 | 1.5/1.3 | 2727 | 736 | 2296 | ||||||||||
| 16 | 1.5/1.6 | 2731 | 738 | 2298 | ||||||||||
| 17 | 2.0/0.8 | 110 | 2782 | 1000 | 761 | 80 | Rp2" | 2321 | 80 | Rp2" | 700 | 24 | Rp1¼ | R3/4 |
| 18 | 2.0/1.0 | 2786 | 763 | 2323 | ||||||||||
| 19 | 2.0/1.3 | 2782 | 761 | 2321 | ||||||||||
| 20 | 2.0/1.6 | 2786 | 763 | 2323 | ||||||||||
| 21 | 2.5/0.8 | 110 | 2834 | 1100 | 787 | 80 | 2347 | 80 | 770 | 24 | Rp1¼ | R3/4 | ||
| 22 | 2.5/1.0 | 2836 | 788 | 2348 | ||||||||||
| 23 | 2.5/1.3 | 2836 | 788 | 2348 | ||||||||||
| 24 | 2.5/1.6 | 2836 | 788 | 2348 | ||||||||||
| 25 | 3.0/0.8 | 110 | 2944 | 1200 | 872 | 100 | 2432 | 100 | 906 | 24 | Rp1½ | R3/4 | ||
| 26 | 3.0/1.0 | 2946 | 873 | 2433 | ||||||||||
| 27 | 3.0/1.3 | 2946 | 873 | 2433 | ||||||||||
| 28 | 3.0/1.6 | 2980 | 890 | 2450 | ||||||||||
| 29 | 4.0/0.8 | 110 | 3056 | 1400 | 933 | 100 | 2493 | 100 | 1050 | 24 | Rp1½ | R3/4 | ||
| 30 | 4.0/1.0 | 3090 | 950 | 2510 | ||||||||||
| 31 | 4.0/1.3 | 3056 | 933 | 2493 | ||||||||||
| 32 | 4.0/1.6 | 3090 | 950 | 2510 | ||||||||||
| 33 | 5.0/0.8 | 110 | 3746 | 1400 | 933 | 125 | 3033 | 125 | 1050 | 24 | Rp2 | R1 | ||
| 34 | 5.0/1.0 | 3780 | 950 | 3050 | ||||||||||
| 35 | 5.0/1.3 | 3746 | 933 | 3033 | ||||||||||
| 36 | 5.0/1.6 | 3780 | 950 | 3050 | ||||||||||
Our Company:
1. Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a
Beautiful ancient City - Xi'an. Since founded more than 10 years ago, our
company has accumulated much experience in the business of air compressors
and drilling rig machines
2. National Free-inspection Product,Have passed ISO9001 certification.
3. Good Service, competitive price, high quality, fast shipping and perfect after
sale service.
Welcome to visit our factory and would like to start the cooperation with you in the near future.
