X-801-1 Surface Wheelchair Restraint System Locked in Notched Tracks

1.INTRODUCTION

X-801-1 wheelchair restraint is to provide a quick and flexible solution to fix wheelchairs. It may self-adjust and self-tension, no demand of your adjustment.

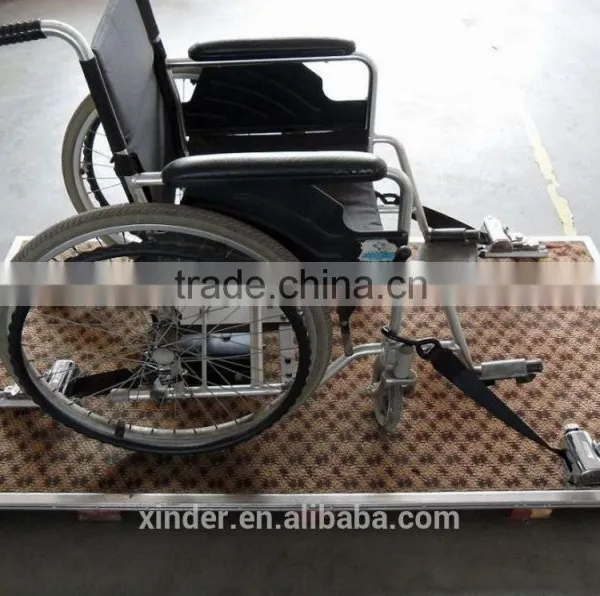

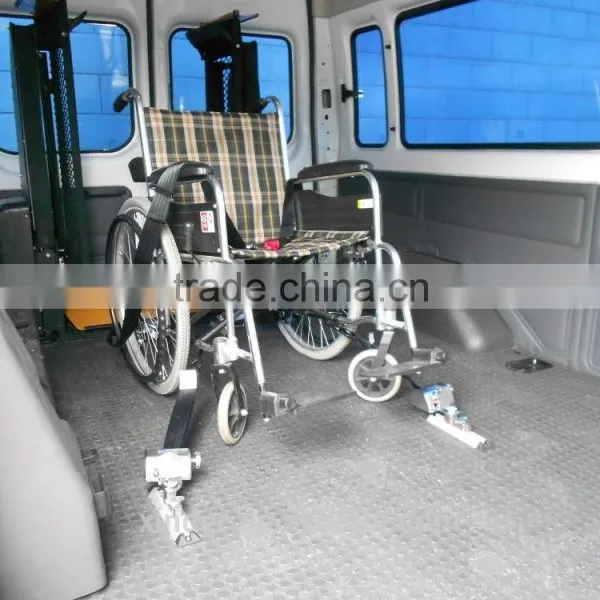

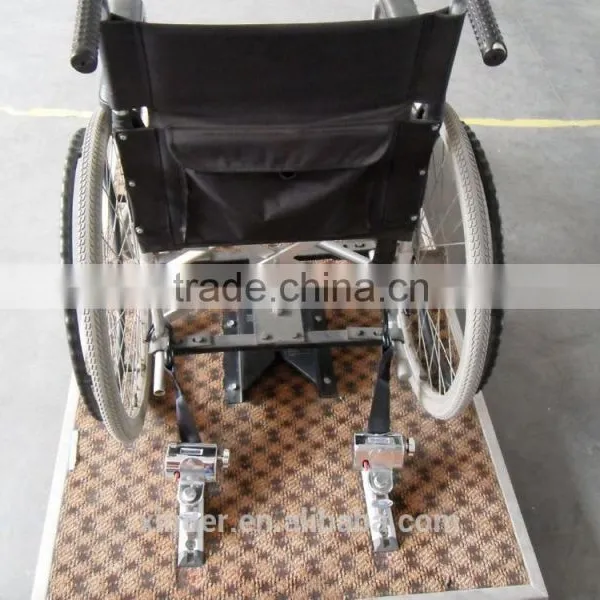

The wheelchair restraint is fixed on the vehicle floor surface through its notched track. Then you may lock the 4 retractors in the notched track and use the hook to finish the wheelchair restraint. The retractable lap belt is provided for passenger safety during driving.

Our wheelchair tie down system has been exported to lots of countries such as Italy, Spain, Finland, Chile, Uruguay, Australia, and Malaysia and so on. Its domestic market share is up to 90% or more.

XINDER takes safety as its most priority and ensures all our products are thoroughly tested as to the industry’s highest standard.

Our wheelchair tie down systems have passed the ISO 10542-2 test. The report NO. is 3129630.50QS.

2. ADVANTAGES

l  Self-adjusting and self-tensioning, no demand of manual adjustment

l  Wheelchair restraints locked in the notched track embedded the vehicle floor

l  With retractable lap belt for passenger safety during driving

l  A complete security system

l  Passed ISO 10542-2 test

3. PART LIST

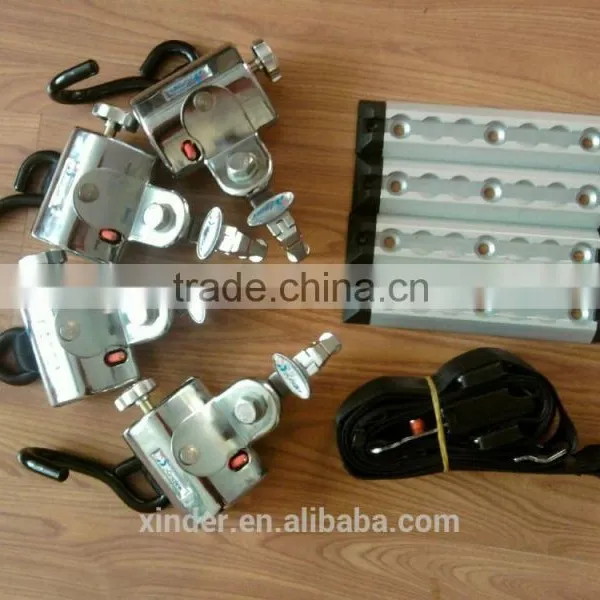

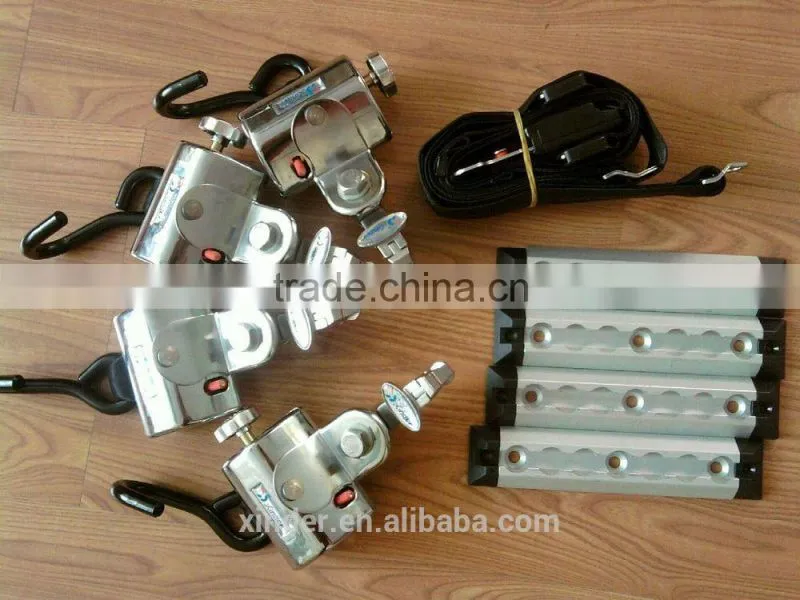

A common set of the wheelchairrestraint contains:

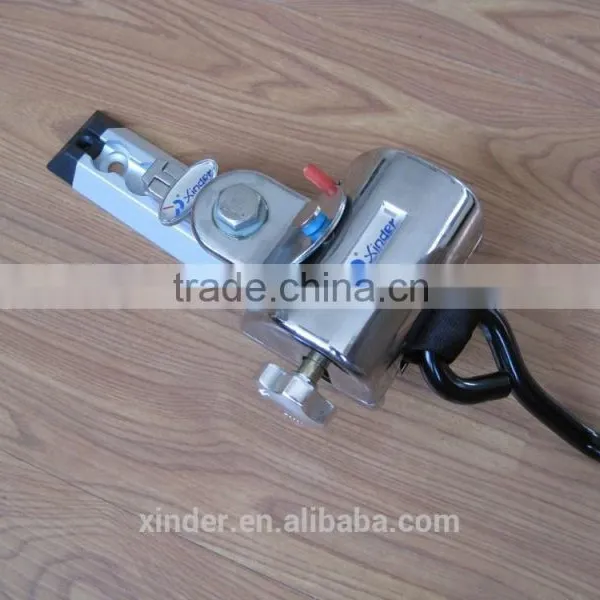

l  4 retractors with the iron hook

l  1 lap belt

l  4 notched tracks with black end cover

Optional part: shoulder belt

Note: The shoulder belt is the optional part. If you need, please tell us and pay for it.

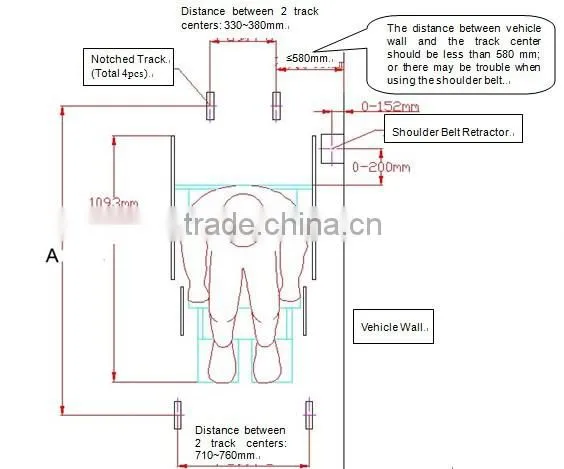

4. INSTALLATION DIAGRAM

5. WARRANTY

l  12 months warranty support.

l  Each product has its own series number for after-sale track
