ES-S Electric Sliding Step car step with CE certificate load 120KG

DESCRIPTION

• Electric sliding step is electrically operated slide in, slide out cassette step providing safe access to passenger vehicles by halving entrance step heights.
• Electric sliding step is operated by the driver/attendant.
• Stows automatically when door closes for safety.
• Sensitive edge stops step independently of all other factors if an object is encountered. Driver re-sets by releasing or re-pressing switch.
• Motor fitted with thermal cut-out protection.
• Electric sliding step can be emergency stowed facility.

 TECHNICAL

• Voltage: 12V
• Max current during extending or stowing under normal situation: 8-10 A
• Extending time: 1-2 s
• Stowing time: 1-2 s
• Test weight: 500 kg/1100 lbs
• Safety loading capacity: 250 kgs/550 lbs

 OPTIONS

• Fully auto operation—simply swap the switch to change to a fully automatic operation on door.

INSTALLATION

• Flexible mounting points to cassette sides.
• Unique serial number making all ES steps fully traceable.
• Individual service pack and maintenance record12 months warranty support.

WARRANTY: 12 month

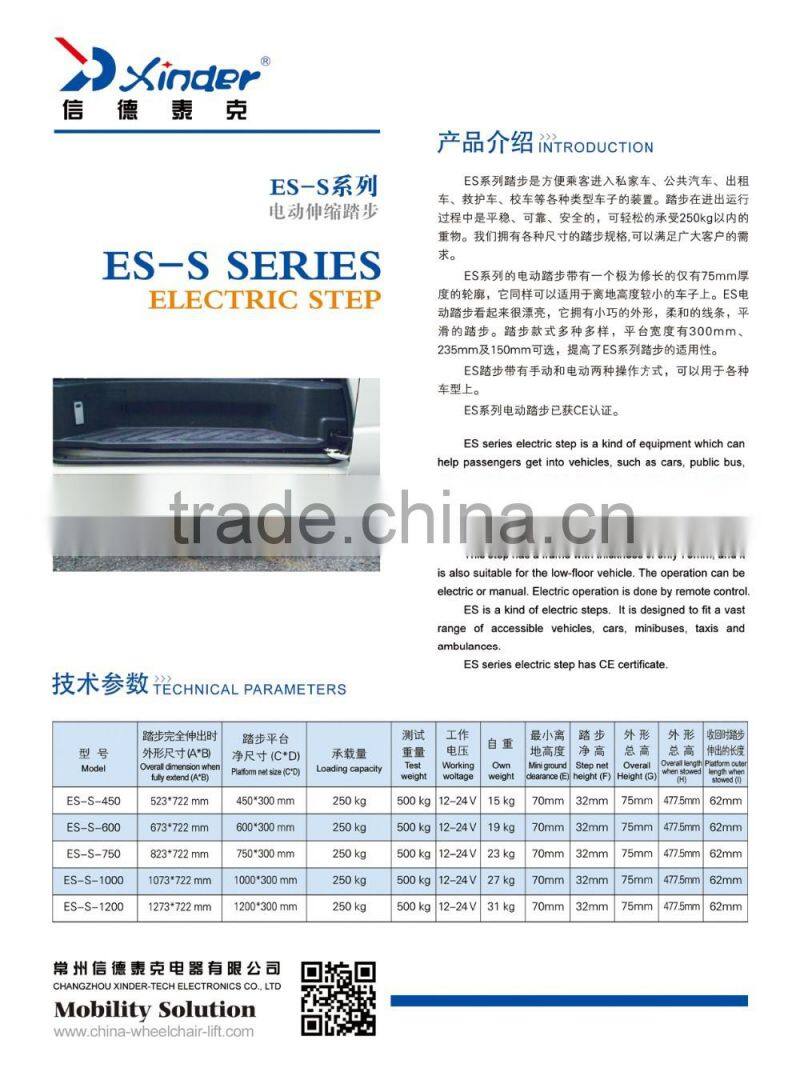

Specification:

you can choose the most suitable model:
