Exact Potentiometer

Product Type & Condition :

1. Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated . So,please consult the stock situation when you inquire.

 Buyer Reading:

1. Please confirm receipt of products if the items you received , and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution .

2. We only guarantee Delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.

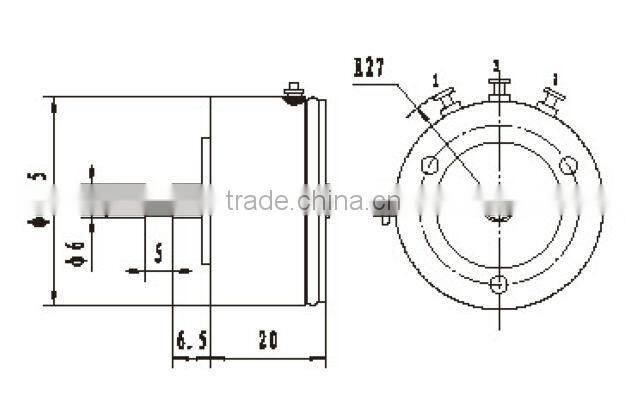

 Item No.: WD35D4     exact potentiometer

Feature

1)Flux builded-up prevention is taken through inserting molding around the resistor with resin.

2)A large variety of products lined up to support various applications.

3)Miniature design for Audio applications.

4)Long life type available

Electrical characteristics

Total rotation angle :260°

Operating force :20-200gf.cm

Shaft stop strength :3kgf.cm/min

Switch working angle/stroke: 30  ±10°

Switch working torque /force:50-300gf.cm

Rated dissipation:0.125w   0.06w

Rated voltage :200V   150V

Insulation resistance :DC500V   500M Ω

Voltage proof:AC500V,1minute

Switch contact resistance:less than 20m Ω

Switch ratings:12VDC  1A

Mechanical endurance :10000cycles

Switch life:10000times
