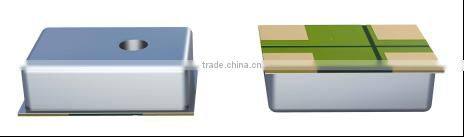

MODEL



SMO03A-RF



Electro Acoustic Specifications



Directional Characteristic : Omni-Directional

Sensitivity:-20~-45 dB

Operating Voltage:1.5~3.6V

Output Impedance: 150Ω

Current Consumption: <200μA

S/N Ratio ( A weighted network):58(Min) dB

Maximum Input Sound Pressure Level:120dB

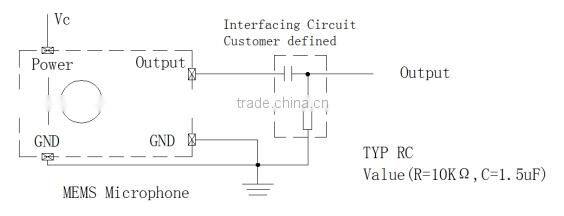

MEASUREMENT CIRCUIT

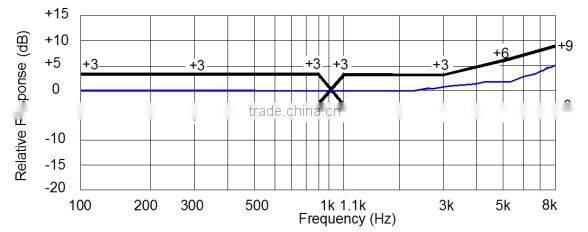

TYPICAL FREQUNENCY RESPONSE

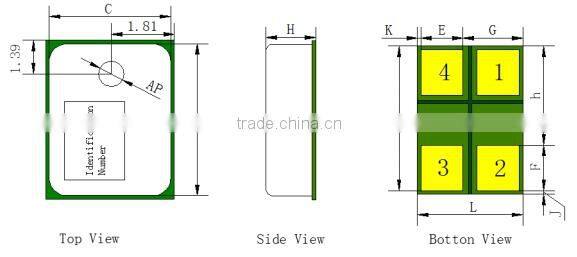

   APPEARANCE DRAWING









Pin#

Function

Notes

Pin1

Output

Pin1: The output terminal, where the analog signal equivalent to applied pressure is available.

Pin2

Ground(CAL)

Pin2, Pin3: The terminal where the supply negative is connected to MEMS microphone.

Pin3

Ground

Pin4

Voltage

Pin4: Input Voltage.





Item

Symbol

Tol.(±@mm)

Dimension(mm)

Unit  Length

W

±0.1

4.72

Unit  Width

L

±0.1

3.76

Unit  Height

H

±0.1

1.25

Acoustic  port  Hole

AP

±0.1

0.84

Metal  Cap  Width

D

±0.1

4.52

Metal  Cap  Length

C

±0.1

3.56

Terminal  Pad  Open

F

±0.1

1.45

Terminal  Pad  Open

E

±0.1

1.24

Terminal  Pad  Pitch1

G

±0.1

2.37

Terminal  Pad  Pitch2

h

±0.1

3.12

Pad  to  Unit  Edge1

K

±0.1

0.15

Pad  to  Unit  Edge2

J

±0.1

0.15





Packaging & Shipping

 Package :

1.Sample in stock.

2.Goods package in box with foam and delivery by discout expresss



Shipping:

It depends on the quantity ,please email us for concret date
