Help CenterHot Dipped Galvanized Steel Wire Rope
Related Products
-
High Tensile Copper and Single Steel Strand Wire/ Wire StrandUS$ 400 - 1,500MOQ: 1 Ton -
8 Gauge, 3mm Diameter Hot Dipped Galvanized Steel Wire PriceUS$ 300 - 560MOQ: 10 Metric Tons
-
High Quality Stainless Steel Screw WireUS$ 3,000 - 6,000MOQ: 1 Ton
-
304 316 310 Stainless Steel Wire Rope/ RodUS$ 300 - 560MOQ: 10 Metric Tons
-
Galvanized Steel Strand/ 12.7mm Prestressed Concrete Steel Strand/ Prestressing Steel Strand Price Chinese Auction WebsiteUS$ 500 - 650MOQ: 10 Tons
Steel Wire For Control Cable(Galvanized & Phosphated)
| Product | new product steel wire for automotive parts | |||||

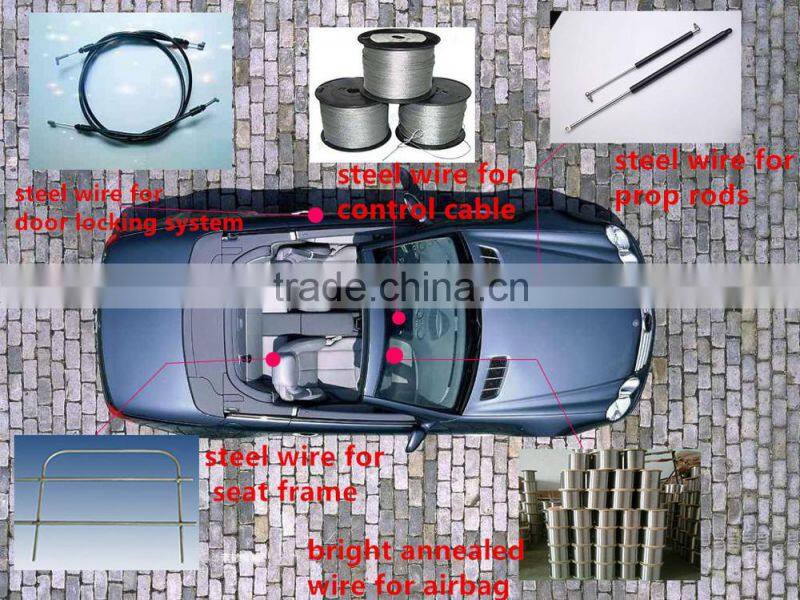

| Category | steel wire for control cable(galvanized & phosphated) |
steel wire for interior parts (galvanized & bright) |
steel wire for seat frame |
bright annealed wire for airbag | steel wire for door locking system | steel wire forprop rods |
| Wire Gauge | 0.3-3.0mm | 2.0-8.0mm | 2.0-8.0mm | 0.2-0.9mm | 0.08-8.0mm | 0.08-8.0mm |
| Standard |
EN10264-2,JIS G3521, GB/T4357,etc |
EN10264-2, JIS G3521, GB/T4358,etc |
EN10264-2, JIS G3521, GB/T4359,etc |
EN10264-2, JIS G3521, GB/T4360, etc |
EN10264-2, JIS G3521, GB/T4361, etc |
EN10264-2, JIS G3521, GB/T4362, etc |
| Packing |
coil,drum, Z2,Z3 |
coil,drum, Z2,Z3 |
coil,drum, Z2,Z3 |
coil,drum | coil,drum | coil,drum |
| Nominal Diameter | Minimum number of reverse bends | Minimum number of Torsions (Bright and Class B) | Minimum mass of coating (g/m2) | ||||
| (Bright and Class B) | |||||||
| 1770 Mpa | 1960 Mpa | 2160Mpa | 1770 Mpa | 1960 Mpa | 2160Mpa | Class B | |
| over 0.6mm ~incl. 0.65mm | 11 | 10 | 9 | 28 | 25 | 23 | 60 |
| over 0.65mm ~incl. 0.70mm | 10 | 9 | 8 | 28 | 25 | 23 | 60 |
| over 0.70mm~incl. 0.75mm | 16 | 15 | 14 | 28 | 25 | 23 | 60 |
| over 0.75mm~incl. 0.80mm | 15 | 14 | 13 | 28 | 25 | 22 | 60 |
| over 0.80mm~incl. 0.85mm | 13 | 12 | 11 | 28 | 25 | 22 | 70 |
| over 0.85mm ~incl. 0.90mm | 12 | 11 | 10 | 28 | 25 | 22 | 70 |
| over 0.90mm~incl. 0.95mm | 11 | 10 | 9 | 28 | 25 | 22 | 70 |
| over 0.95mm ~incl. 1.00mm | 10 | 9 | 8 | 28 | 25 | 22 | 70 |
| over 1.00mm ~incl. 1.10mm | 17 | 16 | 14 | 26 | 23 | 21 | 80 |
| over 1.10mm ~incl. 1.20mm | 16 | 15 | 13 | 26 | 23 | 21 | 80 |
| over 1.20mm ~incl. 1.30mm | 15 | 14 | 13 | 25 | 22 | 20 | 90 |
| over 1.30mm ~ incl.1.40mm | 13 | 12 | 10 | 25 | 22 | 19 | 90 |
| over 1.40mm ~incl.1.50mm | 11 | 10 | 9 | 25 | 22 | 19 | 100 |
| over 1.50mm ~incl. 1.60mm | 14 | 13 | 12 | 25 | 22 | 19 | 100 |
| over 1.60mm ~incl. 1.65mm | 13 | 12 | 11 | 25 | 22 | 19 | 100 |
| over 1.65mm~incl. 1.70mm | 13 | 12 | 11 | 25 | 22 | 19 | 100 |
| over 1.70mm~incl. 1.80mm | 11 | 11 | 10 | 25 | 22 | 19 | 100 |
| over 1.80mm ~incl. 1.85mm | 10 | 10 | 8 | 24 | 21 | 18 | 100 |
| over 1.85mm ~incl. 1.90mm | 10 | 10 | 8 | 24 | 21 | 18 | 115 |
| over 1.90mm~incl. 2.00mm | 9 | 9 | 7 | 24 | 21 | 18 | 115 |
Tianjin Huaxialongxin International Trading Co., Ltd .is one specialized in the product of goods import and export trading type enterprise, that is the priority for the government investment to foster comprehensive enterprise. Our factory has the most advanced production equipment which guarantees the most advantageous product quality. Based on highly quality products and best service, we have developed clients all round the world and our products are exported to the Southeast Asia, Europe, America and regions all over the world.
Tianjin Huaxialongxin International Trading Co., Ltd .has the main products including carbon steel, galvanized products, alloy plate, color coated reel (PPGIs), boiler pipes, pipe fittings, plastic coated pipe, steel plastic composite pipe, low temperature steel, copper products, wire etc.
If you are interested in any of our products, please feel free to contact us for further details. And we'll supply best service for you. Thanks for your attention, I am looking forward to your early reply.
Q: How can I get the samples?
A: If you need some samples to test ,please pay for the transportation freight of samples and our samples are free for you(one piece).
Q: How can I get your price list?
A: Please send us your email or fax and order information Quantity, Specification (steel type, thickness, width, surface finish), then I can send you the price list .
Q: How to order?
A: Please send us your purchase order by email or fax. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
Step1- Please send us your order information – Quantity, Specification (steel type, thickness, width, surface finish), then I can send you the price list.
please advise if you need custom logo.
please advise the shipping address and shipping way
Step2-Check the product cost and shipping cost
Step3-our design make the artwork and confirm the artwork
Step4-make the PP samples and confirm the PP samples
Step5-arrange the mass production
Step6-do the quality inspection and send our official report for your check
Step7-confirm the quality and arrange the shipment
Step8-customer get the goods and check the quality
Step9-Forwarder's contact details if there's any in China
