1. INTRODUCTION
ES series electric step is a kind of equipment which can help passengers get into vehicles, such as cars, public bus, taxi, ambulance and so on. This step, with loading capacity of 250 kg, can work steadily, reliably and safely.
We have different steps with several specifications, which can meet different requirements.
This step has a frame with thickness of only 65mm, and it is also suitable for the low-floor vehicle. The operation can be electric or manual. Electric operation is done by remote control.
ES is a kind of electric steps. It is designed to fit a vast range of accessible vehicles, cars, minibuses, taxis and ambulances.
Description:

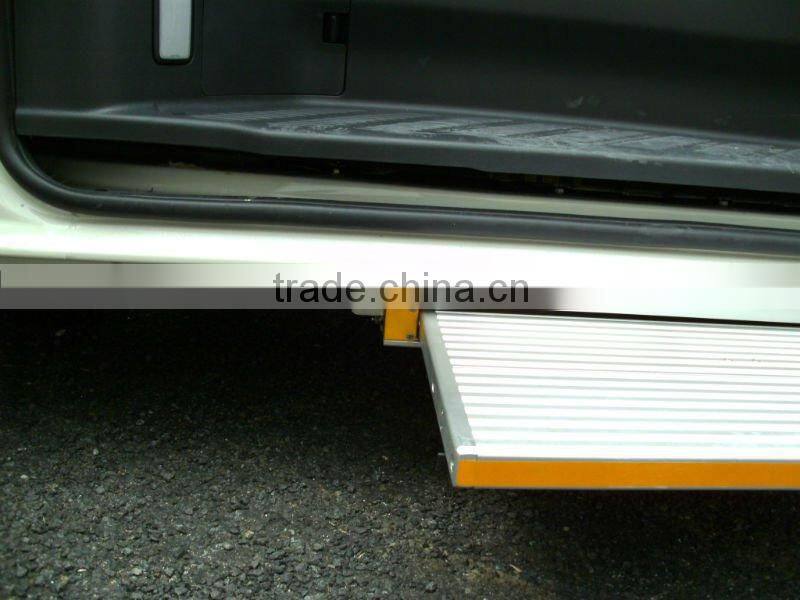

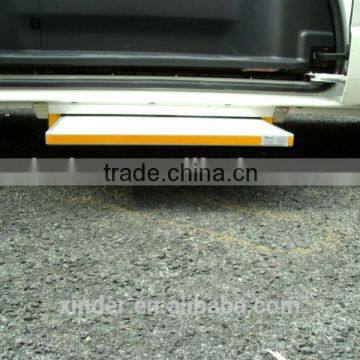

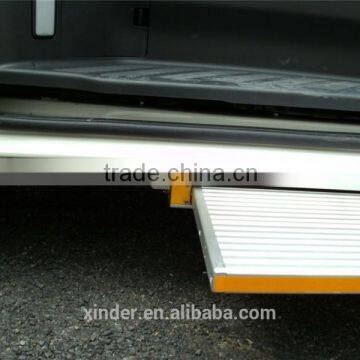

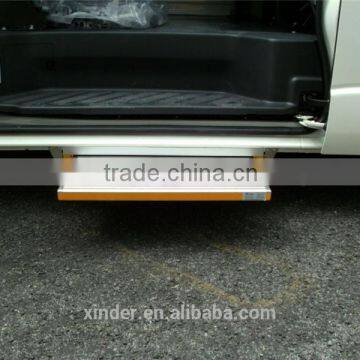

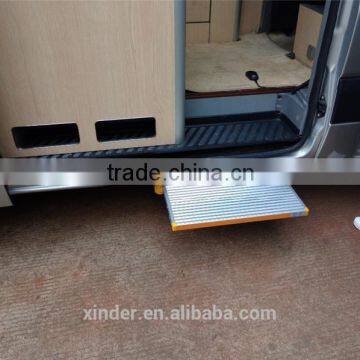

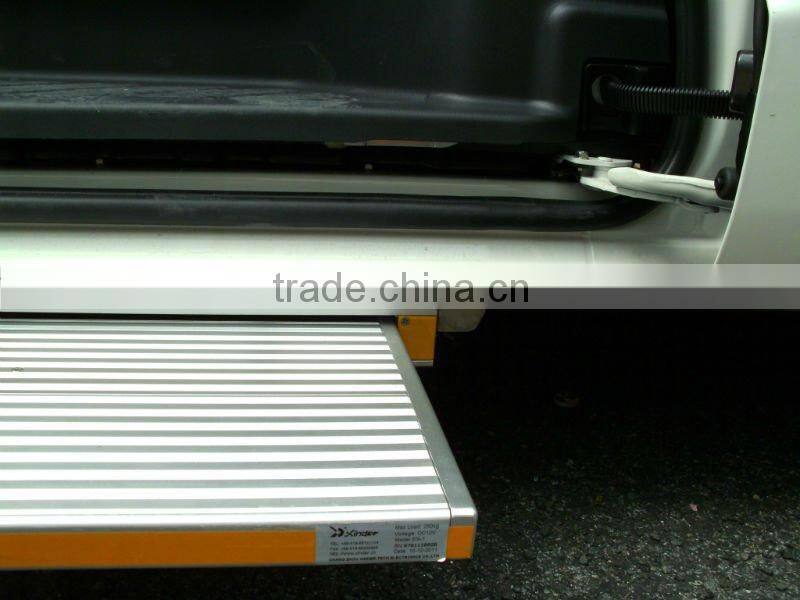

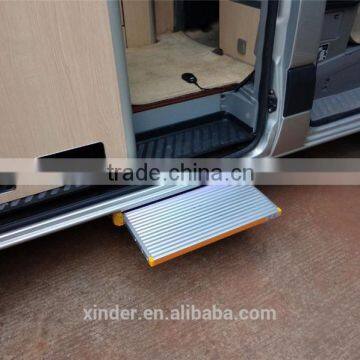

Electrically operated slide in, slide out cassette step providing safe access to passenger vehicles by halving entrance step heights.
Small frames, downy line, smooth platform and easy operation
Operated by the driver/attendant.
Stows automatically when door closes for safety
If there is an obstruction when extending, the step will stow automatically.
Can be stowed for emergency
Rated voltage is 12V-24V
Waterproof connectors
Accessory:
Fully auto operation: simply swap the switch to change to a fully automatic operation on door.
Sensitive edge: It will stow automatically if there is a obstruction. The operator should press the switch again to extend the step.
Buzzer: an equipment for auto alarm
TECHNICAL
- Voltage: 12V-24V
- Max current during extending or stowing under normal situation: 8-10 A
- Extending time: 1-2 s
- Stowing time: 1-2 s
- Test weight: 500 kg/1100 lbs
- Safety loading capacity: 250 kgs/550 lbs
OPTIONS
- Fully auto operation—simply swap the switch to change to a fully automatic operation on door.
INSTALLATION
- Flexible mounting points to cassette sides.
- Unique serial number making all ES steps fully traceable.
- Individual service pack and maintenance record.
WARRANTY
-
12 months warranty support.
