Hall effect current transducer module: RCB59B-200
Closed loop Hall effect current transducer RCB59B-200 is for the real-time precision measurement:
DC, AC, pulsed and irregular wave currents with galvanic isolation between the primary circuit and the secondary circuit.
Performance parameters
Electric parameters |
Features 1. Magnetic balance (closed loop) 2. According to UL 94-V0 3. RoHS and CE certificated
Superiorities 1. Excellent accuracy, very good linearity 2. Low thermal drift 3. Wide bandwidth 4. Fast response 5. High immunity to external interference 6. Good overload capability 7. Low inductance
Applications 1. VF speed regulating device 2 SMPS 3. UPS 4. Inverter device 5. Industry 6. Electric locomotive 7. Grid monitoring |
||||||
Ipn |
Nominal RMS current |
200A |
|||||
Ip |
Measuring range |
1.5* Ipn |
|||||
Vsn |
Output voltage @ Ipn |
4V |
|||||
Kn |
Turns ratio |
1:2000 |
|||||
Rm |
Load resistance Rmax(±15V) |
≥10KΩ |
|||||
Vc |
Supply voltage |
±12V~±15V |
|||||
Ic |
Current consumption |
28mA+output current |
|||||
Vd |
Withstand voltage |
6kVrms/50Hz/min |
|||||
Dynamic parameters | |||||||
X |
Accuracy @ Ta=25°C |
±0.6% FS |
|||||
εL |
±0.1% FS |
||||||
VO |
Offset voltage @ Ta=25°C |
±20mV |
|||||
VOT |
Thermal drift |
≤±0.5mV/°C |
|||||
Tr |
Response time |
≤1us |
|||||
BW |
Bandwidth |
DC~100kHz |
|||||
di/dt |
Following accuracy |
≥100A/us |
|||||
General parameters | |||||||
Ta |
Operating temperature |
-25~+85 °C |
|||||
Ts |
Storage temperature |
-40~+90 °C |
|||||
W |
Weight |
75g±10% |
|||||
Standards |
EN50178:1998 |
||||||
Dimension
Outline drawing of RCB59B-200
Connection
Notices
1. Please connect according to the dimension drawing in which defining the current flowing direction and the function of the PIN.
2. The temperature of the primary busbar can’t be over 100°C.
3. We can also develop and manufacture transducers depending on customers’ requirements. Welcome to communicate with us when you are in this kind of demand.

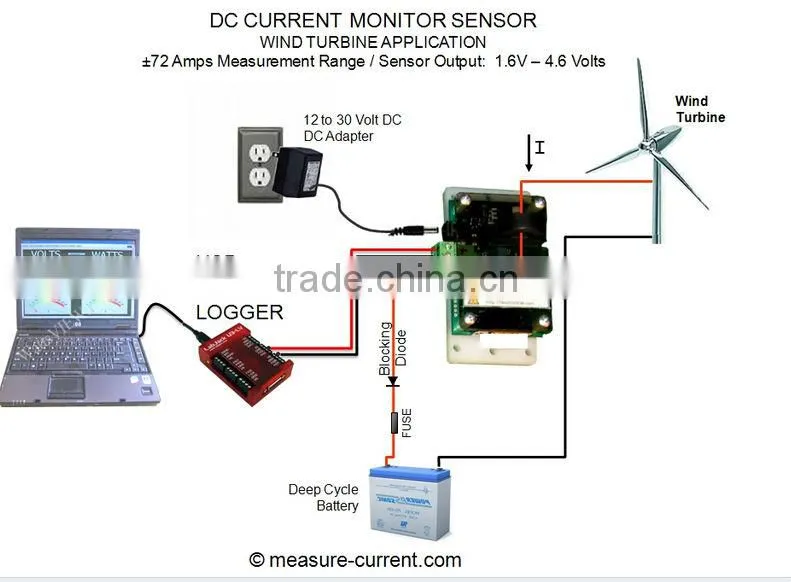

Application cases
Certifications ( ISO, CE, RoHS )
