Hall Effect DC AC Pulse Current Transducers / Sensor RCS09A Series (Ipn=50A-600A) for Welding Machine Power Supply Converter

Hall effect current transducer module: RCS09A series

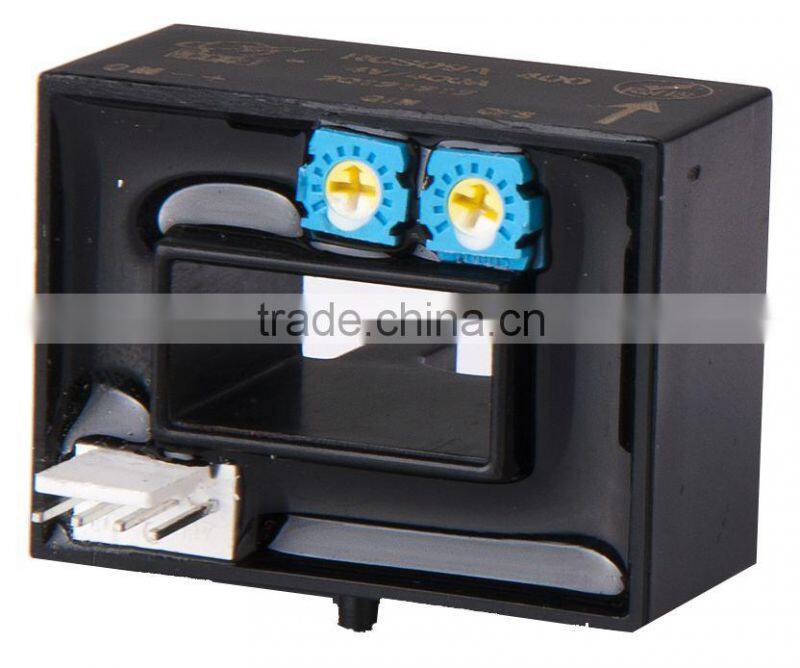

 Picture of the product

Profile:

Open loop Hall current transducer RCS09A series are for the measurement of currents: DC, AC, pulse and irregular wave currents with galvanic isolation between the primary circuit and the secondary circuit.

Performance parameters

Features

1. Open loop

2. According to UL 94-V0 requirements

3. RoHS and CE certificated

Superiorities

1. Excellent accuracy, very good linearity

2. Low thermal drift

3. Wide bandwidth

4. Fast response

5. High immunity to external interference

6. Good overload capability

7. Low inductance

Applications

1. VF speed regulating device

2. Inverter / Converter

3. UPS

4. SMPS

5. Electric locomotive

6. Grid monitoring

7. Industrial power supply ( Welding machine, Textile machine, etc. )

Dimension

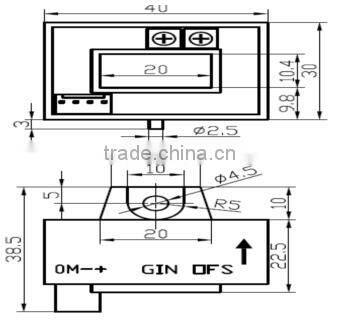

Outline drawing of RCS09A

Connection

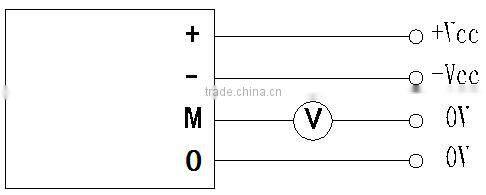

Connection drawing

Notices

1. Please connect according to the dimension drawing in which defining the current flowing direction and the function of the PIN.

2. The temperature of the primary busbar can’t be over 100°C.

3. We can also develop and manufacture transducers depending on customers’ requirements. Welcome to communicate with us when you are in this kind of demand.

Applied in electricity and power supply

Certificates (ISO9001, CE, RoHS)

Brand introduction
