General Purpose Rope
Machinary,Construction,Marine,Fishing,Logging,Mining,Freight Tramway.
Special Purpose Rope

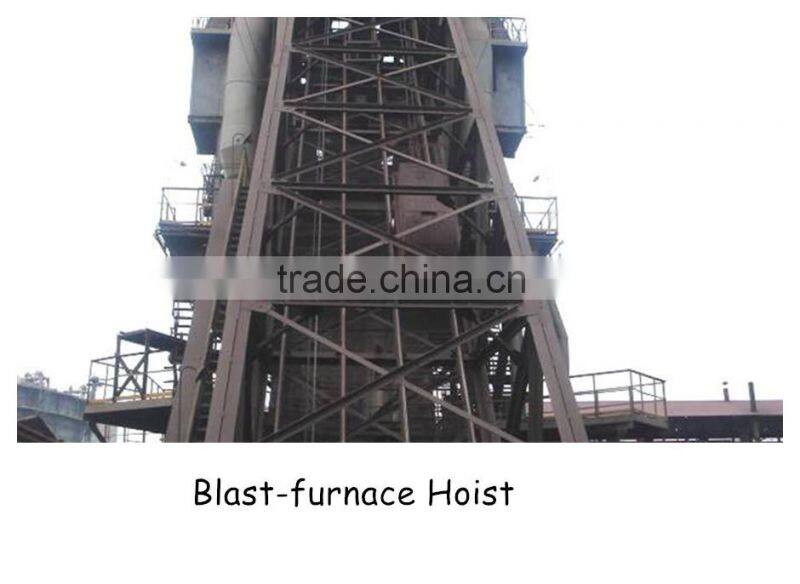

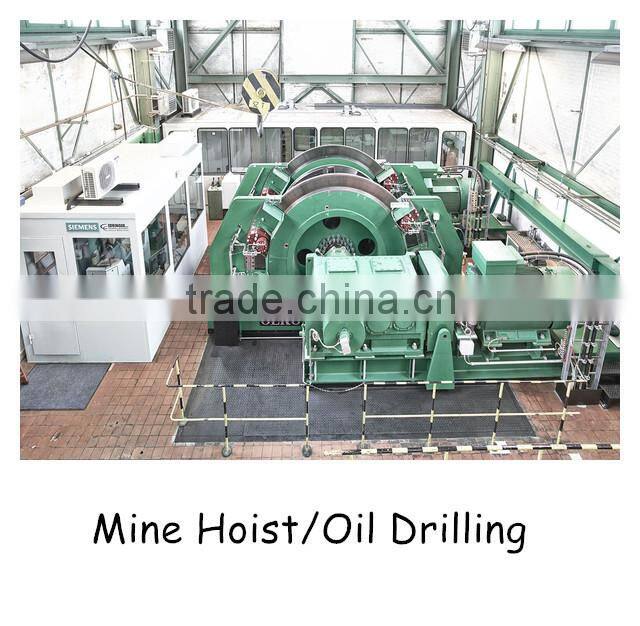

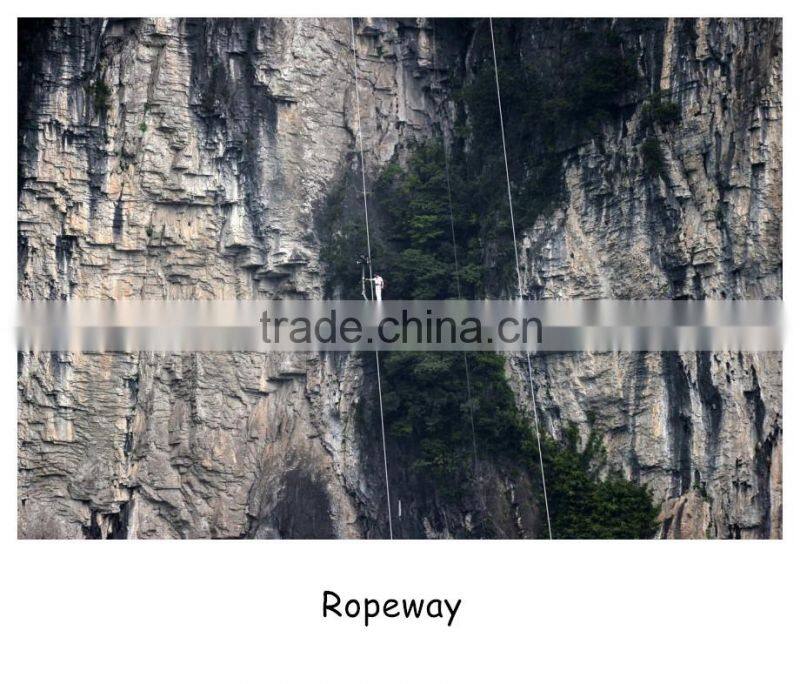

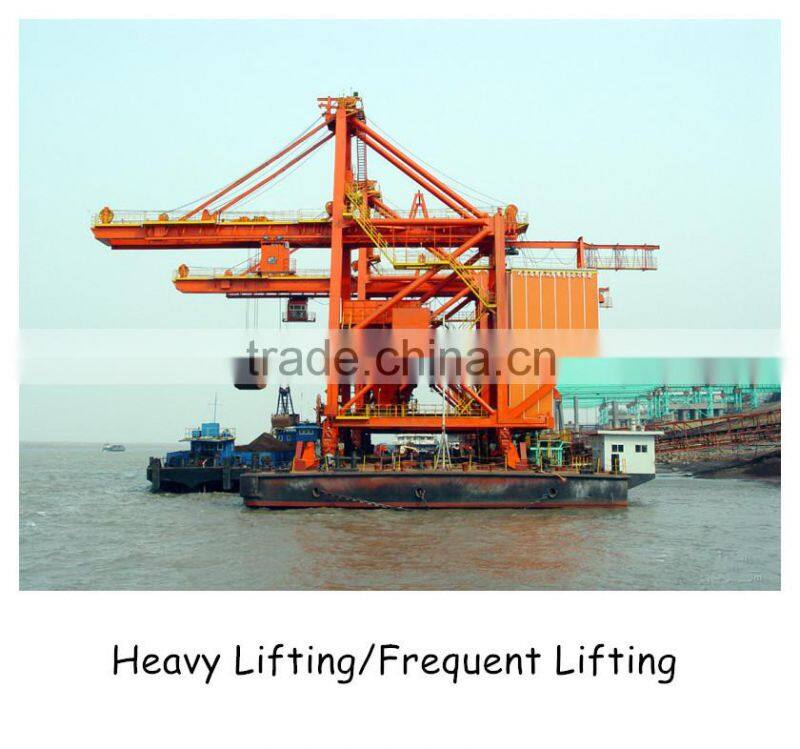

Mine hoist,blast-furnace hoist,heavy casting,oil drilling,heavy lifting,frequent lifting,ropeway,ground cable car,marine,offshore facilities.
Finish:Bright,galvanized,zinc-aluminum alloy plated
6*7+FC
|
stay,logging, tramway,marine |
EN 12385-4 | ||||||
| Diameter (mm) | GB/T20118-2006/GB8918/-2006 | ||||||
| Min.braking load(kn) | Approx.Weight(kg/100m) | Min.braking load(kn) | Approx.Weight(kg/100m) |
||||
| 1670n/mm2 | 1770n/mm2 | 1670n/mm2 | 1770n/mm2 | ||||
| 2 | 2.22 | 2.35 | 1.40 | 2.22 | 2.35 | 1.38 | |
| 3 | 4.99 | 5.29 | 3.16 | 4.99 | 5.29 | 3.11 | |
| 4 | 8.87 | 9.40 | 5.62 | 8.87 | 9.40 | 5.52 | |
| 5 | 13.9 | 14.70 | 8.78 | 13.9 | 14.70 | 8.63 | |
| 6 | 20.00 | 21.20 | 12.60 | 20.00 | 21.20 | 12.40 | |
| 7 | 27.20 | 28.80 | 17.20 | 27.20 | 28.80 | 16.90 | |
| 8 | 35.50 | 37.60 | 22.50 | 35.50 | 37.60 | 22.10 | |
| 9 | 44.90 | 47.60 | 28.40 | 44.90 | 47.60 | 27.90 | |
| 10 | 55.40 | 58.80 | 35.10 | 55.40 | 58.80 | 34.50 | |
| 11 | 67.10 | 71.10 | 42.50 | 67.10 | 71.10 | 41.70 | |
| 12 | 79.80 | 84.60 | 50.50 | 79.80 | 84.60 | 49.70 | |
| 13 | 93.70 | 99.30 | 59.30 | 93.70 | 99.30 | 58.30 | |
| 14 | 109.00 | 115.00 | 68.80 | 109.00 | 115.00 | 67.60 | |
| 16 | 142.00 | 150.00 | 89.90 | 142.00 | 150.00 | 88.30 | |
| 18 | 180.00 | 190.00 | 114.00 | 180.00 | 190.00 | 112.00 | |
| 20 | 222.00 | 235.00 | 140.00 | 222.00 | 235.00 | 138.00 | |
| 22 | 268.00 | 284.00 | 170.00 | 268.00 | 284.00 | 167.00 | |

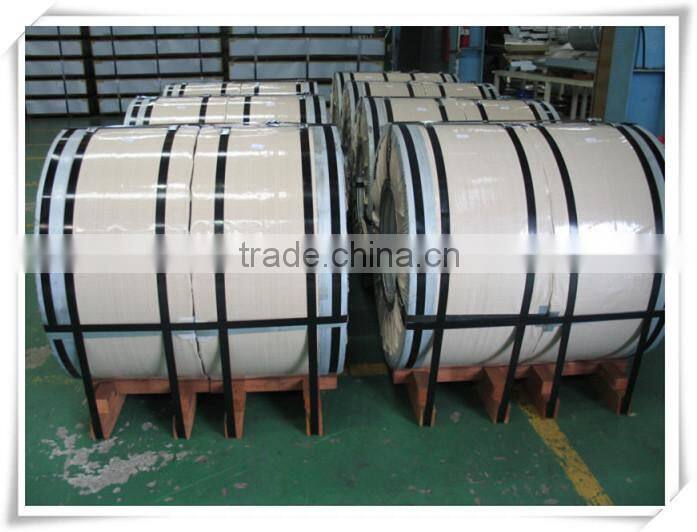

1)Bundle by steel belts with protect of both end.
2)Threads of both ends with protectors
3)Coupling with different colors for easy identification
4)Others by request
Tianjin Huaxialongxin International Trading Co., Ltd. is one specialized in the product of goods import and export trading type enterprise. The priority for the government investment to foster comprehensive enterprise, belongs to Tianjin economic development zone, there are several highways around the
company, 30 kilometers away from Tianjin city, 40 kilometers away from the Tianjin Binhai international airport, 60 kilometers from Tianjin port. Main products include carbon steel, galvanized products, alloy plate, color coated reel (PPGIs), boiler pipes, pipe fittings, plastic coated pipe, steel plastic
composite pipe, low temperature steel, copper products, wire etc.
Q: Are you Manufactory or Trade Company?
A: We are the Trade Company
Q: How can I get your price list?
A: Please send us your email or fax and order information Quantity, Specification (steel type, thickness, width, surface finish), then I can send you the price list.
Q: How to order?
A: Please send us your purchase order by email or fax. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
1) Shipping information-company name, street address, phone number, fax number, destination sea port
2) Product information Quantity, Specification (steel type, thickness, width, surface finish)
3) Delivery time required
4) Forwarder's contact details if there's any in China
