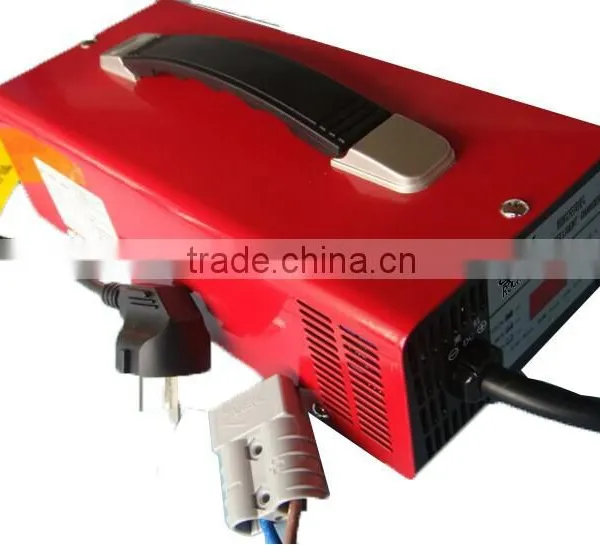

Battery Smart Fast Charger 24V/18A for cleaning machine and sweeping car

Smart Fast Charger

Introduction

 This charger could charge for WET or VRLA(GEL/AGM) Lead-acid battery.

 We use nonlinear control technology which designed by our company, the charger in high-effiency,low harmonic wave,long life,reliable, the performance reaches high level in the market.

Air-cooled AC220V input, suitable for charging 24V battery, the maximum output current of 18A.

Applying the switching power supply technology and intelligent charging technology, According to the battery charge current capacity, automatic charge strictly according to the characteristic curve of the battery , charging mode is three stages style as "constant → (average charge voltage value) constant voltage reducing current → (automatic identification converted) trickle float" the charger communicates and talks to the battery, solves the charge rate limitation of the battery, saves the charging time for you.

Parameters

Automatic Charging Process

Trickle → constant current → constant voltage(pulse)→ costant current(time limit)→ full

Charging Curve

Protetion function

Automatic temperature compensation function

When temperature higher or lower 25℃, charger output compensate  -50mV/℃ or +50mV/℃ automatically.

Equalized charging function

When battery is full, press"stop",charger stop working, and press"Equalized charging"(light on),and then press"on", charger will equalized charge automatically.

Automatic equalized charging function

When battery is full, charger will keep time 5 hours, after 5 hours if the battery is still "online",charger will start equlized charging

Features

• Digital display
• Protection function
• Auto Temp. compensation
• Eqalized Charging
• Dust-proof
• Portable
• Power and output customizable

high charging efficiency, simple, light weight, small size

1. Gathers information from a battery.

2. Analyses the information.

3. Makes decisions.

4. Takes actions.

Advantages

reverse polarity protection function

overload protection function

short circuit protection function

overheat protection function

delay start, soft-start, power memory

1. Accuracy of charge -- no overcharge!

2. Speed of charge --Fast or Slow or anywhere in between.

3. Increased battery life at all speeds.-50% +

Applications

Charger suitable for electric cars, electric lift trucks, electric pallet trucks, forklift trucks, forklifts, golf carts, electric tour buses and cars, tanks, batteries and other small generators start on the device; also required by battery maintenance providers.

1. Telecommunications

2. UPS Systems

3. Airport Equipment

4. Military

5. Forklifts

6. Solar Energy

7. Wind Energy

8. Grid storage/Leveling

9. Electric Transport

10.Railways

Purposes

1. Capital equipment and infrastructure cost reductions for industries.

2. Battery replacement cost reductions.– Longer battery life.

3. Faster availability of operational equipment.

4. Improved field capability in military applications.

5. Increased mobility/range for E-bikes/E-Cars

Note: We can customize depending on your requirements.
