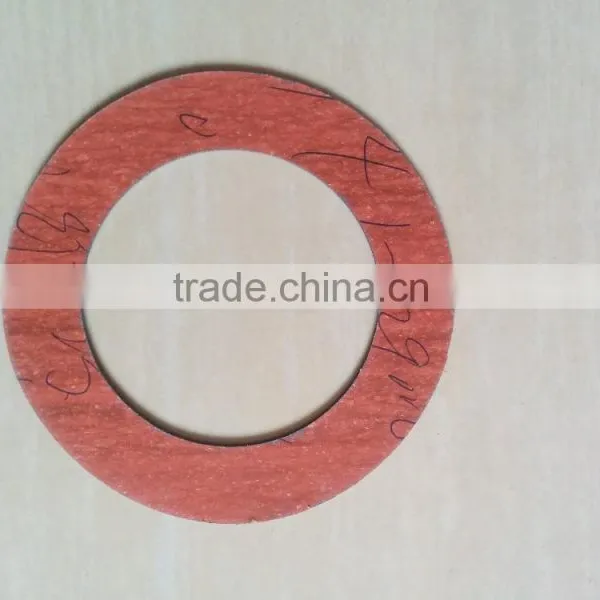

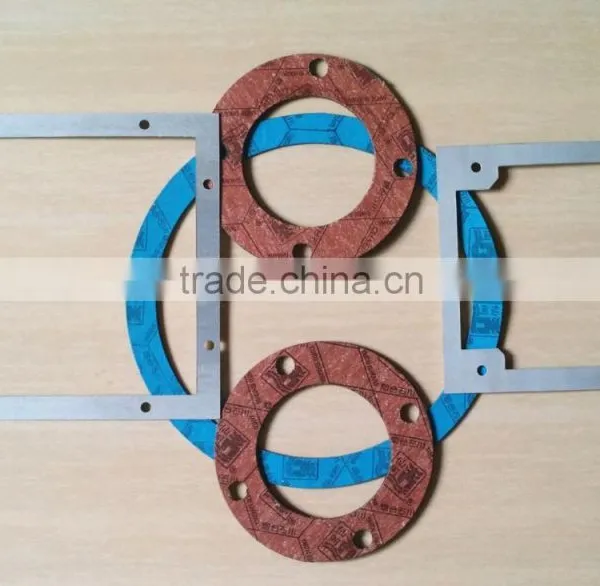

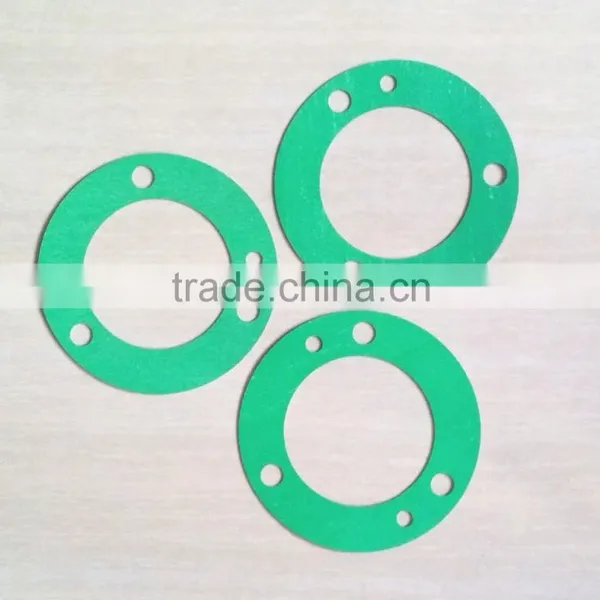

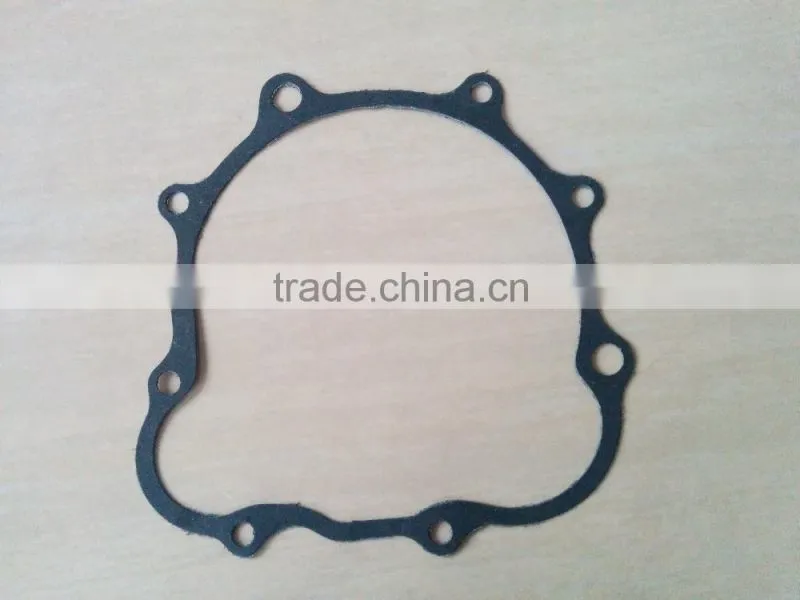

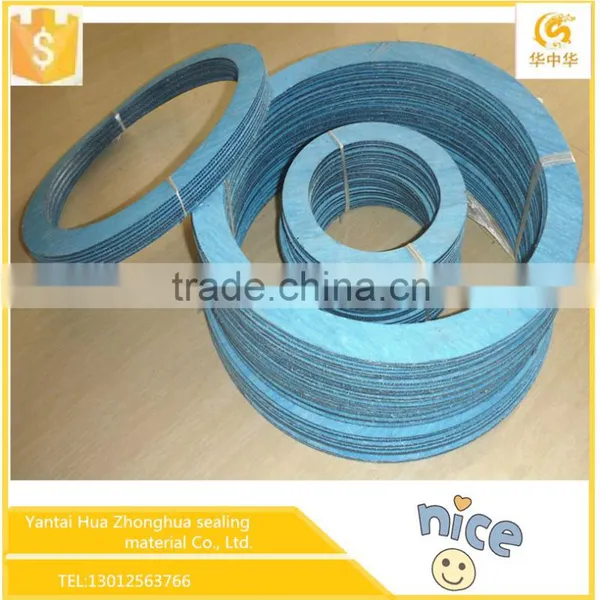

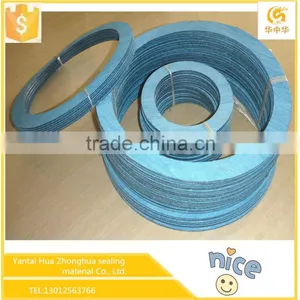

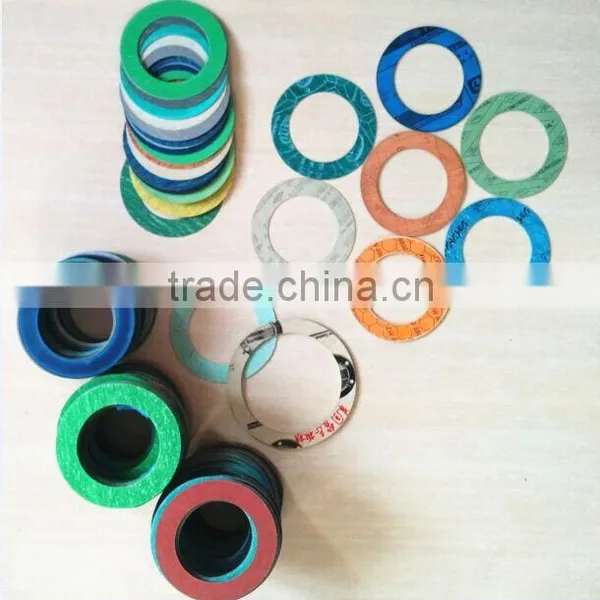

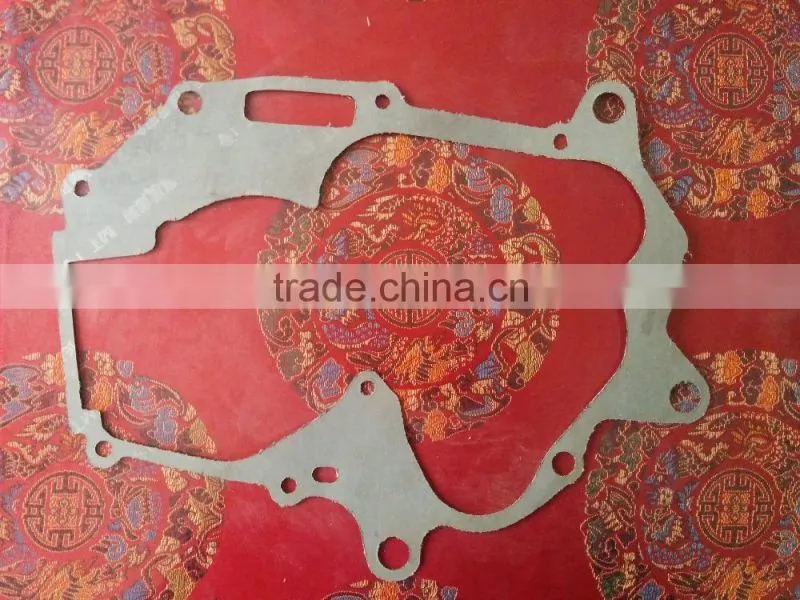

rational construction set motorcycle gasket gasket
Specifications
Temperature range: -60~250degree.
Max. working pressure: 3.5MPa.
Fine low temperature resistance and fine sealing performan

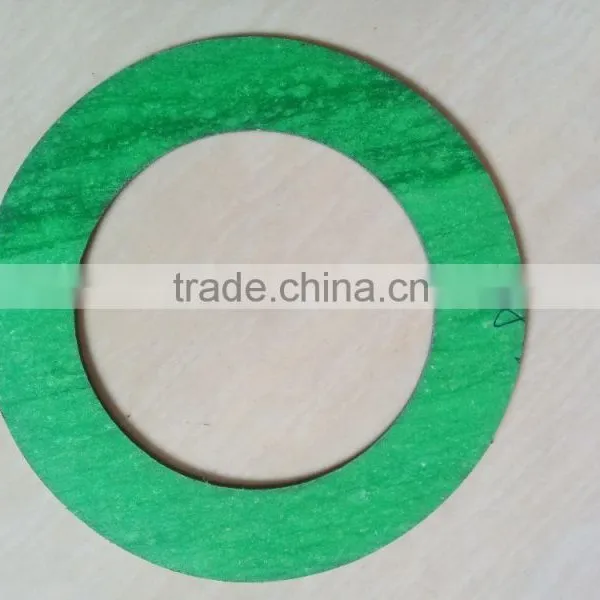

NY250 OIL Resisting Jointing Sheet
NY250 Oil Resisting Jointing Sheet are made of the frame materials including aramid fiber and synthetic mineral fiber after special proportioning with oil-resistant rubber binders and adding other functional additives and compression molding it.
Product characteristics:
Temperature range: 150°C~580°C.
Max. working pressure: 1.5MPa~6MPa.
Fine low temperature resistance and fine sealing performance.
Product application:
Applies to various kinds of oil, water, various kinds of coolants, gas, etc.
Specially recommended as gasket material for refrigerating system or equipments contacted with cooling systems such as air-conditioners, compressors, heat exchangers, evaporator, etc.
Standard size:
Sizes: 1500*1500,4000*1500,2700*3800 or as requires by clients.
Thickness: 0.3~6.0mm,
Special sheet sizes and other size thickness upon request.
Product data sheet
| Item | NY250 | |
| Transverse Tensile strength MPa | 21 | |
| Density g/cm³ | 1.72 | |
| Stress relaxation radio 100°C x 22h % | 25.2 | |
| Compressibility % | 6.4 | |
| Recovery % | 60.2 | |
| HFC-134a +68 Refrigeration Oil RT x 22h | Thickness increasing % | 3.9 |
| Weight increasing % | 12.6 | |
| Compressibility % | 10.4 | |
| Recovery % | 74.1 | |
| Transverse Tensile strength decrement ratio % | 31.6 | |
| HFC-134a RT x 22h | Thickness increasing % | 1.1 |
| Weight increasing % | 2.0 | |
| Compressibility % | 9.7 | |
| Recovery % | 74 | |
| Transverse Tensile strength decrement ratio % | 9 | |
| Nitrogen leakage rate (Q/QFM BJS001) ml/min | 0.2 |
|
General In Export Standard Packaing,with strong wooden cases & pallets,also can be packed as requires by clients.
Yantai Huazhonghua Sealing Material Co., Ltd. is located in Yantai, Shandong Province, a beautiful seaside city, focusing on the poduction and operation of nonasbestos rubber sheet, cylinder head gasket, gaskets, graphite plate, composite panels and other sealing materials, sealing products. Insisting upon the sense of supplying the most premium, the most stable, the highest cost performanc and the best service to repay the market as whole.
Company in a professional, dedicated spirit of service, adhere to the market demand oriented, customer requirements as their responsibility, depending on each customer as a partner, relying on advanced technology, excellent team and modern management as much as possible for customers to provide the latest market information and the best service, to win customers and achieve a win-win for the goal of.
1. Q: Are you a factory or trading company?
A: We have factory in Yantai, a seaside city with export license. We have the most convenient transportation onditions.
2. Q: Where is your factory located? How can I vist there?
A: Our factory is located in Yantai city, Shandong province, All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products.
4. Q: How does your factory do regarding quality control?
A: "Quality is priority." TENSION Rubber people always attach great importance to quality controlling from the very beginning to the end:
1) All raw material we used are environmental-friendly;
2) Skillful workers care every details in handling the producing and packing process;
3) Quality control department specially responsible for quality checking in each process.
5.How to contact?
