Compact Maize Millers 50t/24hrs
one whole cron / maize grain is made up of hull, bran,endosperm and germ. and corn flour and grits is mostly come from endosperm. so to get pure and high quality,the production line need to remove hull, bran and germ,which called feedstuff /fodder. the end-produt from our maize flour processing plant , you will get:
SPECIFICATION
| Corn end-produts | Fineness |
| big grits | 0.8-1.7mm |
| middle grits | 0.6-0.8mm |
| small grits | 0.4-0.6mm |
| corn meal | 0.25-0.4mm |
| fine flour | <0.25 |
| germ and corn bran | |
CORN PROCESSING PLANT INTRODUCTION
The process line can be divided into four parts-------cleanning part-----degermiation---milling part-----packing part ----- controlling part
1. cleaning part
to clean out the middle and small impurity from corn. e.g., dust, stone, magnetic material, corn was bitten by insect and so on.Includes beating, screening, destoner, magnetic separator and dampening.this section is make the corn to prepare for millling part and to protect the machinery as well.

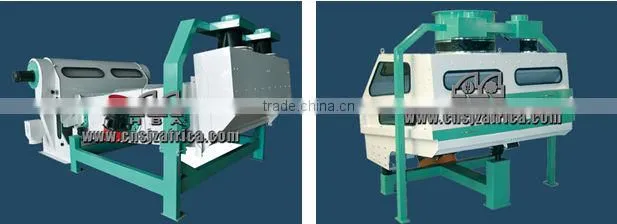

HIGH EFFICIENCY VIBRATING SIEVE DE-STONER

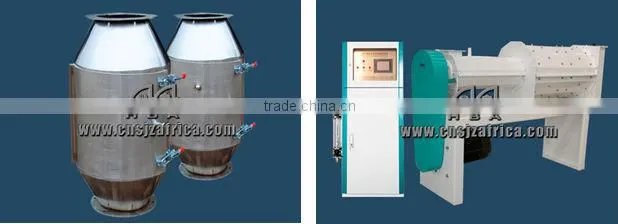

MAGNETIC SEPRATOR HIGH INTELLIGENT DAMPENER
2. Degermiation
For corn grits and flour quality and long shelf-life, corn huller and degerminator is necessary before milling.
DEGERMINATOR BARKER

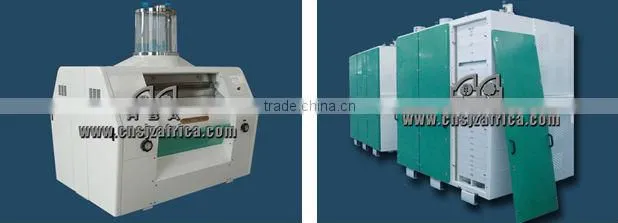

3. milling part
Include different number of mill and sifter to mill the corn and separate the flour and bran
(1) Mill: mill the corn/maize to break the integrity by the roller moving
(2) Sifter: to separate the flour ,grits and bran, also separate large size and small size to enssure flour quality.

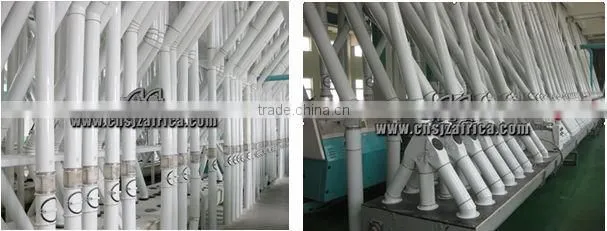

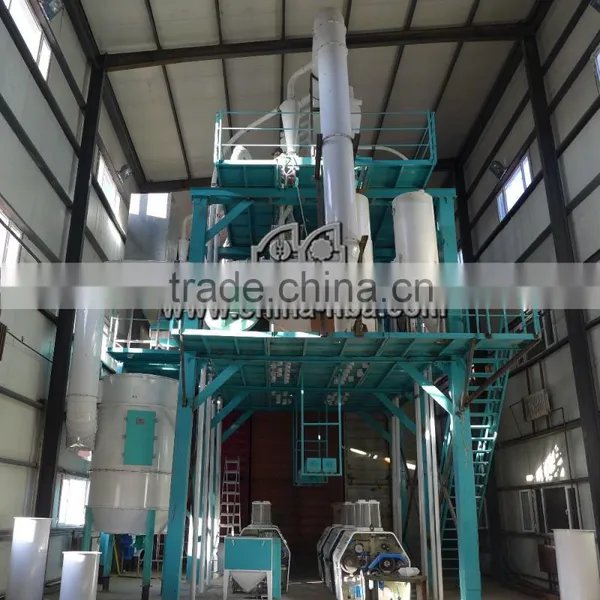

WHOLE PRODUCTION LINE
technical data 50ton maize flour processing plant
| capacity | 50ton/24hrs |
| equipment list |
1. de-stoner, cleaning sieve, magnetic 2. computer control dampener 3. degermination system 4 roller mill, plan sifter, crusher 5. auto packing system with computer control 6. PLC CONTROLLING SYSTEM / electrical cabinet control |
| quality and design |
european standard qaulity level 1. each equipment made of top grade steel in China 2. parts equipped with machinery are international brand like electrical parts are SIEMENS,bearing SKF etc 3. design work team is strong and flexiable according to customer local situation |
| technics | degermination techics |
| workshop size | L*W*H= 12M*8M*18M |
| machinery structure | steel structure |
| power consumption | 190kw |
| turnkey project is offered by your choice | 50ton/24hr maize grits processing plant, silo and workshop |
| installation | we will arrange engineer to guide installation, commissioning and training local worker. |
| delivery time | within 45 days against payment |
1. In 1~5 months after start of production, we will arrange the related professionals should assist and instruct the production and operation at the site.
2. The warranty period is 12 months after the date of acceptance.
3. In the warranty period, when receiving the notification (telephone or fax) for service supply requested by the buyer, we will reply within 4 hours, and meanwhile assign experienced technicians to arrive at the site within one week to provide service for the buyer.
1. flour mill capacity?
we produce 40-2400t/24hrs, which means processing 40-2400t corn.
2. wheat, corn and rice normally can not producing on the same production line. because the wheat grain and corn grain has different physical property . some parts need different equipments. even the same equipments, the model is different.
3. flour milling design need to consider the corn using,local geographical conditions , climate,power type ,customer's request etc. so flour milling machine is different for customer from different country.
4. payment terms: L/C or T/T
CEL: 0086-15333315257
ADD:NO.266 TIANSHAN STREET, SHIJIAZHUANG,HEBEI,CHINA
