Help CenterAuto Ref/keratometer ,ophthalmic Equipment, With Keratometer Function KR9200 (Direct Factory)
Related Products
-
Auto Ref/keratometer KR-9200 Optical Instrument (Direct Factory)NegotiableMOQ: 1 Piece -
Auto Refractometer RM-9200 Optical Instrument (Direct Factory)NegotiableMOQ: 1 Piece
-
Digital Refractometer RM-9200 Optical Instrument (Direct Factory)NegotiableMOQ: 1 Piece
-
Ophthalmic Refractometer RM-9200 Optical Instrument (Direct Factory)NegotiableMOQ: 1 Piece
-
China Auto Refractometer,ophthalmic Equipment RM-9200 Optical Instrument (Direct Factory)NegotiableMOQ: 1 Piece
Specifications
Auto Ref/keratometer KR-9200Auto Optical Head Tracking
Auto Chinrest
Auto detachment.
Tilt 5.7' LCD screen

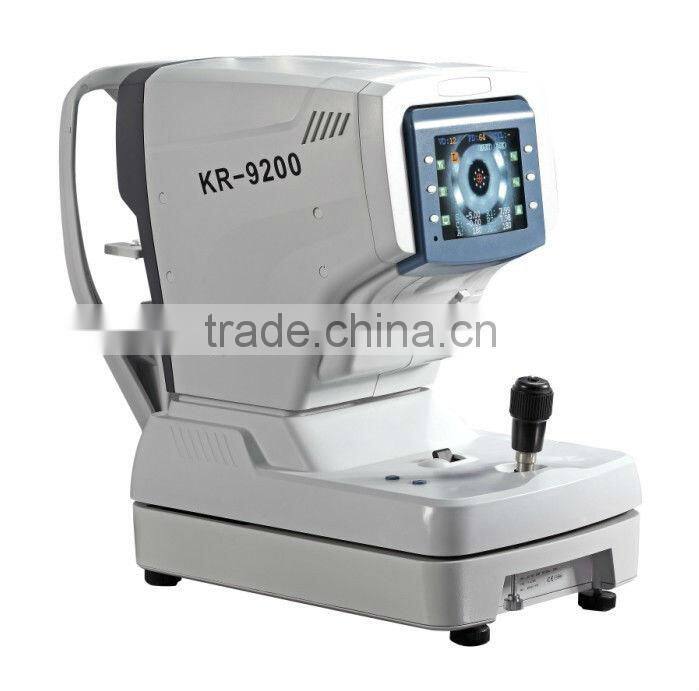

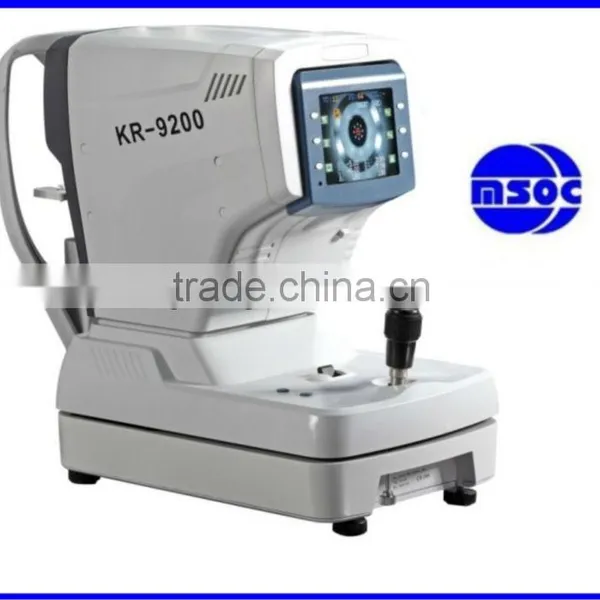

Auto Refractometer with Keratometer KR-9200
KR-9200 can connect to the Auto phoropter CV-7000,CV7200, Auto chart projector 1500/1000.

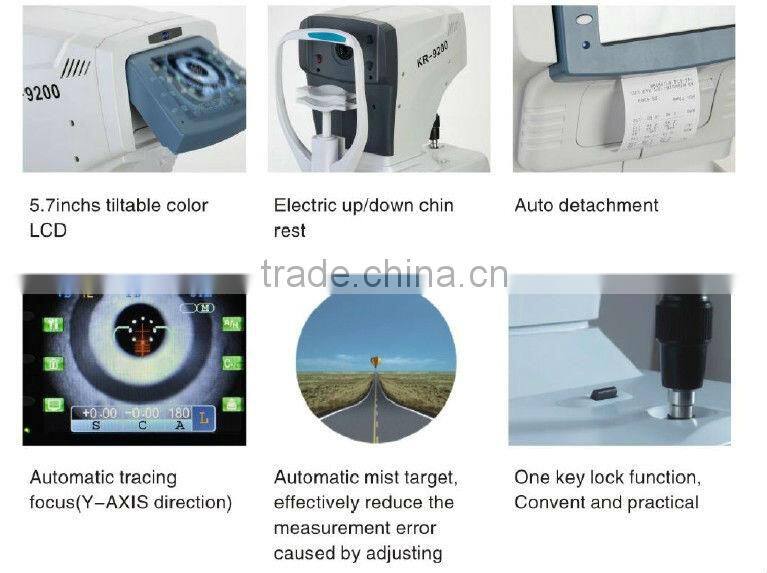

1.tiltable color screen.with keratometer function
2.auto detachment printer
3.auto tracking optical system
4.motorized chinrest
With keratometer function.
Auto tracking optical system
Use the ARM processor and the latest domestic image processing, the system is fast and the image is clear.
Japan’s mature optical path system, , humanized automatic mist measurement process , to reduce the error caused by adjustment, more precise measurements.
Light rack with integral casting , CNC machining, measuring system, is more stable , good consistency.
5.7’ tiltable color LCD for user friendly operability.
PD Automatic measurement function, automatically PD value.
One key lock function, quickly locking mobile platforms.
Motorized chinrest
Auto detachment printer
Specifications
Measurement mode |
K/R mode |
Refractive and Keratometer measurement. |
REF mode |
Refractive measurement |
|
KEF mode |
Corneal curvature measurement |
|
Refractive measurement |
Vertex Distance |
0.0,12.0,13.75,15.0 mm |
Sphere |
-20.00~+20.00D (0.12/0.25D step)(VD=12mm) |
|
Cylinder |
0.00~±10.00D (0.12/0.25D step) |
|
Axis |
1°~180°(1° step) |
|
Pupil Distance |
30~85 mm |
|
Min. pupil diameter measurable |
2.0mm |
|
Target |
Automatic fogging target |
|
Corneal curvature measurement |
Radius of curvature |
5~10mm(0.01mmstep) |
Corneal Refraction |
33.00~67.00D(0.12/0.25Dstep) |
|
Corneal Astigmatism |
0.00~-15.00D(0.12/0.25Dstep) |
|
Angle of corneal |
1°~180°(1°step) |
|
Corneal diameter |
2.0~12.00mm |
|
Hardware specification |
Monitor |
5.7 inch Color LCD |
Printer |
Auto detachment printer |
|
Power saving function |
OFF, 5, 15 mins (selectable) |
|
Power supply |
AC110~220 V,50/60HZ |
|
Dimensions/weight |
288(W)*500(D)*480(H)mm/14kg |

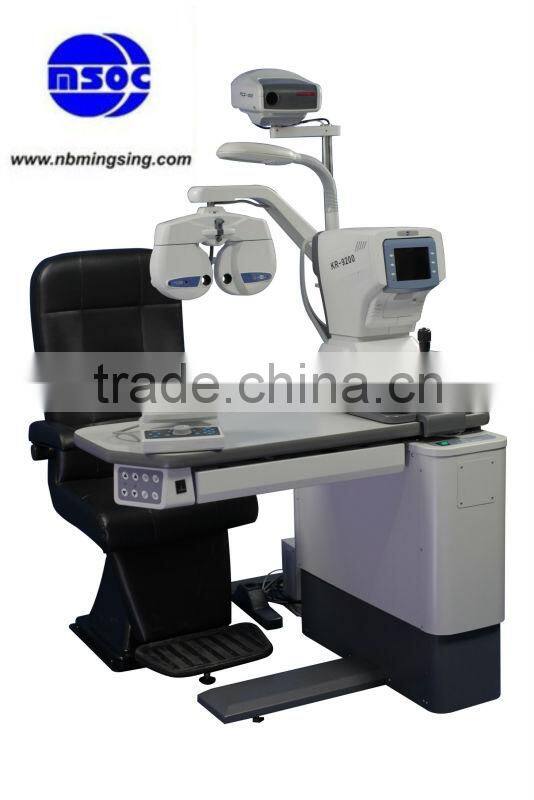

KR-9200 Connects with Ophthalmic Unit TCS-800
Workshop:
