Product Details
Condition: | New | Application: | Medical | Packaging Type: | Case |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 13KW | Place of Origin: | Jiangsu, China |
Brand Name: | HLJ | Model Number: | HLJ-U type | Dimension(L*W*H): | 3390*2800*1700mm |
Weight: | 2000kg | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

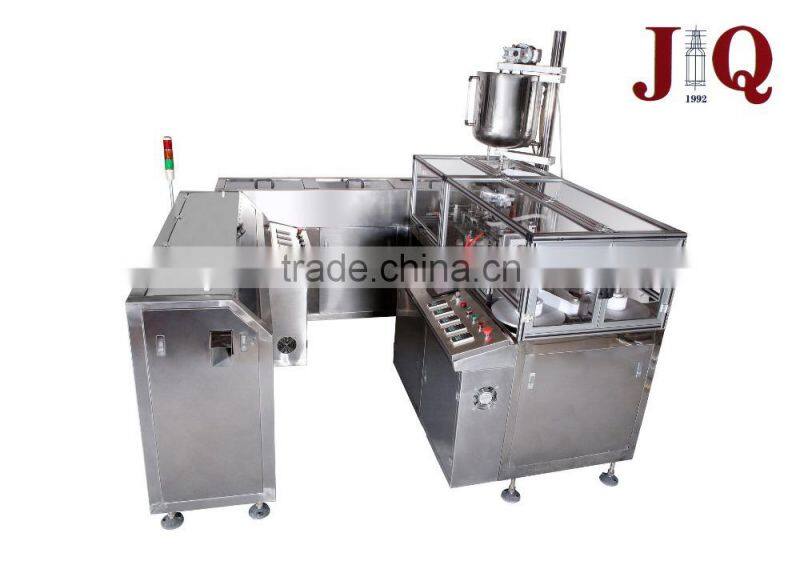

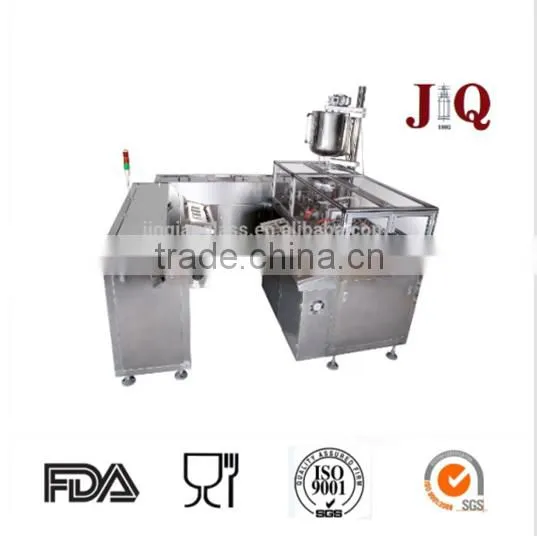

Automatic suppository filling-sealing machine
Description
HLJ-straight line type omni-automatic suppository filling sealing subasembly is ddigested and absorbed
abroad advanced technology and bond internal suppository producing practice to manufacture and
develop this produce that is machine /electricity and gas united new produce. This produce can replace
import equipment, and it lies in internal precede level.
I. Working principle The rolled plastic sheet material (PVC or PVC/PE) is pressed positively to blow and
make a statue to take shape, and enter into filling procedure automatically, stirred equally drug fluid is
filled to nul nutshell automatically through high precise dosing pump, and is sheared into multi-strip iso-segment. Then it will become solid cork granulation through much time cryo-stereotypia which will realize
conversion from fluid to solid. At last, it will be produced to end product suppository by mending form,
sealing, beating batch number and shearing working procedure.
II.Technical characteristic
1, Using inset filling,accurate in position,non-dribbling drug,non-hanging wall,high precise in counting.
2,Be wide in suitability, can be used to fill high gluing degree gelatin group and the traditional Chinese medicine ware.
3,Using PLC written formula control and industry grade person-machine inerface operation,
4,Having big volume storing fluid vessel.
5,Relieving worker’s physical labor strength for lower position of filling drug fluid, laying cycling to supply fluid
and keeping thermo equipment of channel pathways, and it will ensure drug fluid not be coagulated when machine stop.
6,One side operation and better sight.
III.Technical parameter
Production | 6000—10000granulations per hour |
Dosage per granulation | 1-5g per granulation(also can be made special qualification) |
Dosage difference allowed | ±2% |

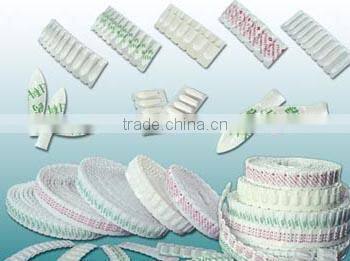

Suppository form | bullet form,torpedo form,duck-mouth form and other special form |
Adapting group | demi-synthesis fatty acid lipo-glycerol,glycerol gelatin,polyethylene glycol etc. |
Volume of storing fluid vessel | 50L |
Height of wadding | 1400mm |
Electric pressure of power | three- phases AC 380V |
Total power | 13KW |
Air pressure | 0.6MPa |
Consuming gas tolerance | 1.5m3/min |
Volume of consuming water | 1000Kg /h(be used in circle) |
Overall dimensions | 7000×1500×1700mm |
Weight of overall machine | 2000kg |
Our advantages
1, Our suppository equipment bring in the Italy Sharon technology.
2, The equipment same type of Italy Sharon costs about $ 1.2 million.
3, After decades of technological improvements and market feedback, equipment performance become more mature and more stable
4, We present the highest market share in China
5, Most accessories use international imported brands
6, There are a number of independent research and development of technology to extend the life of wearing parts
7, Pass through a number of domestic and foreign certification authority
8, Among similar exported products, ours accounting for 90%.
Warranty
Repairing:The item will have one full year warranty from us starting from the day you got our parcel.In most cases when item got problems we shall send you necessary parts with free cost for your own replacement
so you needn't return the machine to us for repairing. And we shall provide online technical guide for you to replace the parts.
Operation:If you need we will send you a user manual to help you operating.
If you have any question,feel free to contact me.
I am looking forwards to your inquiry.
