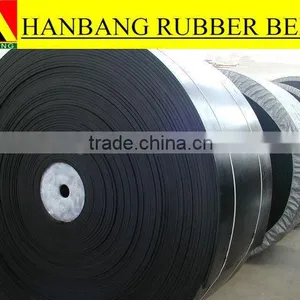

Conveyor belt Steel cord ST1600S

Specifications

1.width:300-2000mm
2.thickness:5-50mm
3.MAX steel cord diameter:3.0mm--11.3mm
4.strength:630N/mm-7500N/mm





Steel cord conveyor belt



Configuration:

Cover Compounds: General, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.



1. High tensile strength:Steel cord conveyor belt is suitable for large span,long distance transportation of materials



2. Small elongation in use:It need only a very short take-up stroke distance.



3. Small diameter of drive pulley:Steel cord conveyor belt body has a layer of longitudinally arranged steel cords as its skeleton,and thus is resistant to flex fatigue.Therefore,drive pulley of smaller diameter can be used to make the equipment smaller.









Application:.

Belt is suitable for crry material which under prevent avulsion condition in Coal,mine industry,port,electric power,metallurgy and construction industry.the large elongation tensile strength,Long lifespan,Small elongation rate,excellent trough-forming character,good anti-bend flexibility, It is suitable for long-distance,large span,big-voume and high-speed materia's transportion.



Technical standards:

GB/T9770-2001, MT668-2008, DIN22131Y, AS133m,JZSK6369, etc.

Specifiction/strength:

630N/mm-----7500N/mm

Width:

300mm---2000mm
parameters:







strength of the belt specifications	ST	ST	ST	ST	ST	ST	ST	ST	ST	ST	ST	ST	ST
	630	800	1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400
longitudinal tensible strength	630	800	1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400
Maximal nominal diameter	3	3.5	4	4.5	5	6	7.2	8.1	8.6	8.9/9.1	9.7	10.9	11.3
of the steel wire mm
Space bettween cord	10	10	12	12	12	12	15	15	15	15/17	16	17	17
8	5	5	6	6	6	8	8	8	8	8/8	8	8.5	9
Bottom cover thickness	5	5	6	6	6	6	6	8	8	8/8	8	8.5	9
Quality	18	19.5	21.5	22.2	26.1	33.1	35.3	41.1	45	45/45	51	59	62
Width specifications	Number of steel cords
800	75	75	63	63	63	63	50	50
1000	95	95	79	79	79	79	64	64	64	64/56	59	55	55
1200	113	113	94	94	94	94	76	76	77	77/68	71	66	66
1400	133	133	111	111	111	111	89	89	90	90/79	84	78	78
1600	151	151	126	126	126	126	101	101	104	104/91	96	90	90
1800		171	143	143	143	143	114	114	117	117/108	109	102	102
2000			159	159	159	159	128	128	130	130/114	121	113	113
2200						176	141	141	144	144/125	134	125	125
