Home > Products > Heat-resistant Conveyor belt > NN fabric reinforced conveyor belts

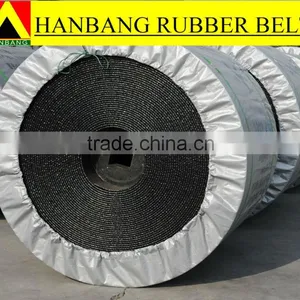

NN fabric reinforced conveyor belts
- 15000 Meter / Meters per Month
- QINGDAO
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | Hanbang | Model Number: | EP/NN/CC56 |
Product Description
Specifications
1.width:300-2000mm2.thickness:5-50mm
3.Tensile Strength:6-25MPA
4.strength:160N/mm-3150N/mm
5.(2%)discount for new buyer.
EP conveyor belt
With regard to the application and heat resistance
properties there are three types of conveyor belts available:
• T1 type - *temperature of material up to 125°C
• T2 type - *temperature of material up to 150°C
• T3 type - *temperature of material up to 210°C
*depends on the ambient temperature, grain size and contact duration
Short time peaks in temperature of material possible up to 400°C. For further details please contact us.
Heat resistant conveyor belts are suitable for:
• cement plants
• heating stations, power stations, garbage incineration plants
• chemical industry
• steelworks, metal foundries, metal processing industry
The carcass of this priduct has very high adhesion after the special treatment of coating and shaping.Under normal working temperature of below 180°C,the belt is low in elongation,excellent in anti-abrasion,and can bear 250°Chigh temperature for a short time.The belt is suitble foe use in cement,metallurgical and steel industry.
Configuration:
The anti-draught body was made up of cotton canvas, nylon,polyester canvas,also be matched with top-bottom rubber cover characters.
Application:Belt is suitable in chemical industry,electric power,metallurgy,light industry,foodstuff machining and coal mine.
Technical standards:
GB/T7984-2001, GB/T10822-2003, DIN22102, AS1332,JISK6322, etc.
Specifiction/strength:
160N/mm-----3150N/mm
Width:
300mm---2000mm
The physical and mechanical properties:
1. The physical and mechanical properties of coverffig layer: please refer to the physical and mechanical properties of the common conveyer belt.
2. Tensile property of through thickness:
a. The longitudinal tensile strength is not lower than the following nominal value:
315 400 500 600 630 800 900 1000N/mm
b. The through thickness elongation rate of the belt should not less than rate of trough thickness of the belt should no more than 4%.
c. Straightness: no more than 25mm.
d.parameters:
Item | Class | ||||
T1 | T2 | T3 | T4 | ||
Test temperature | |||||
≤100°C | ≤125°C | ≤150°C | ≤175°C | ||
Change range allowed | |||||
Hardness | Difference before and after aging(IRHD) | +20 | +20 | ±20 | ±20 |
Maximum value after aging(IRHD) | 85 | 85 | 85 | 85 | |
Tensile Strength | Change rate after aging/% | -25 | -30 | -40 | -40 |
Minimum value after aging/MPa | 12 | 10 | 5 | 5 | |
Breaking Elongation | Change rate after aging/% | -50 | -50 | -55 | -55 |
Minimum value after aging/% | 200 | 200 | 180 | 180 |
