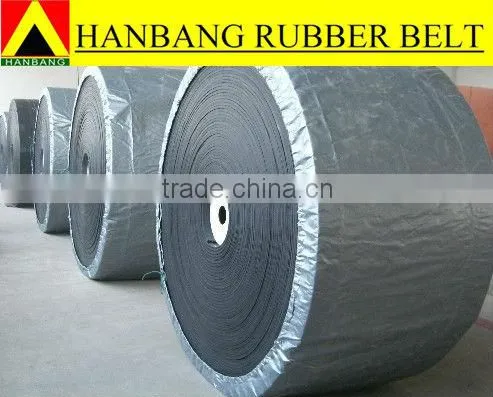

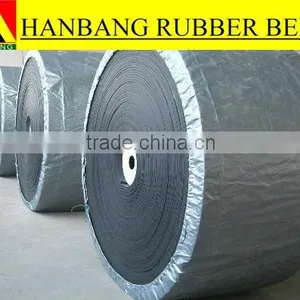

fire-resistant steel cord conveyer belt
- 5000 Meter / Meters per Month
- QINGDAO
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | Hanbang | Model Number: | ST630-ST2000 |
Product Description
Specifications
1.width:300-2000mm2.thickness:5-50mm
3.MAX steel cord diameter:3.0mm--11.3mm
4.strength:630N/mm-7500N/mm
Steel cord conveyor belt
Configuration:
With regard to the application and heat resistance
properties there are three types of conveyor belts available:
• T1 type - *temperature of material up to 125°C
• T2 type - *temperature of material up to 150°C
• T3 type - *temperature of material up to 210°C
*depends on the ambient temperature, grain size and contact duration
Short time peaks in temperature of material possible up to 400°C. For further details please contact us.
Heat resistant conveyor belts are suitable for:
• cement plants
• heating stations, power stations, garbage incineration plants
• chemical industry
• steelworks, metal foundries, metal processing industry
The carcass of this priduct has very high adhesion after the special treatment of coating and shaping.Under normal working temperature of below 180°C,the belt is low in elongation,excellent in anti-abrasion,and can bear 250°Chigh temperature for a short time.The belt is suitble foe use in cement,metallurgical and steel industry.
Application:.
Belt is suitable for crry material which under prevent avulsion condition in Coal,mine industry,port,electric power,metallurgy and construction industry.the large elongation tensile strength,Long lifespan,Small elongation rate,excellent trough-forming character,good anti-bend flexibility, It is suitable for long-distance,large span,big-voume and high-speed materia's transportion.
Technical standards:
GB/T9770-2001, MT668-2008, DIN22131Y, AS133m,JZSK6369, etc.
Specifiction/strength:
630N/mm-----7500N/mm
Width:
300mm---2000mm
parameters:
strength of the belt specifications | ST | ST | ST | ST | ST | ST | ST | ST | ST | ST | ST | ST | ST |
630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 | |
longitudinal tensible strength | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 |
Maximal nominal diameter | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7.2 | 8.1 | 8.6 | 8.9/9.1 | 9.7 | 10.9 | 11.3 |
of the steel wire mm | |||||||||||||
Space bettween cord | 10 | 10 | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15/17 | 16 | 17 | 17 |
8 | 5 | 5 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8/8 | 8 | 8.5 | 9 |
Bottom cover thickness | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8/8 | 8 | 8.5 | 9 |
Quality | 18 | 19.5 | 21.5 | 22.2 | 26.1 | 33.1 | 35.3 | 41.1 | 45 | 45/45 | 51 | 59 | 62 |
Width specifications | Number of steel cords | ||||||||||||
800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | |||||
1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64/56 | 59 | 55 | 55 |
1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 77 | 77/68 | 71 | 66 | 66 |
1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 90 | 90/79 | 84 | 78 | 78 |
1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 104 | 104/91 | 96 | 90 | 90 |
1800 | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 117 | 117/108 | 109 | 102 | 102 | |
2000 | 159 | 159 | 159 | 159 | 128 | 128 | 130 | 130/114 | 121 | 113 | 113 | ||
2200 | 176 | 141 | 141 | 144 | 144/125 | 134 | 125 | 125 |
