ep conveyor belts Chevron EP100

Specifications

1.width:300-2000mm
2.thickness:5-50mm
3.strength.Ver:680-3100N/mm
4.strength.Hor:265-450N/mm

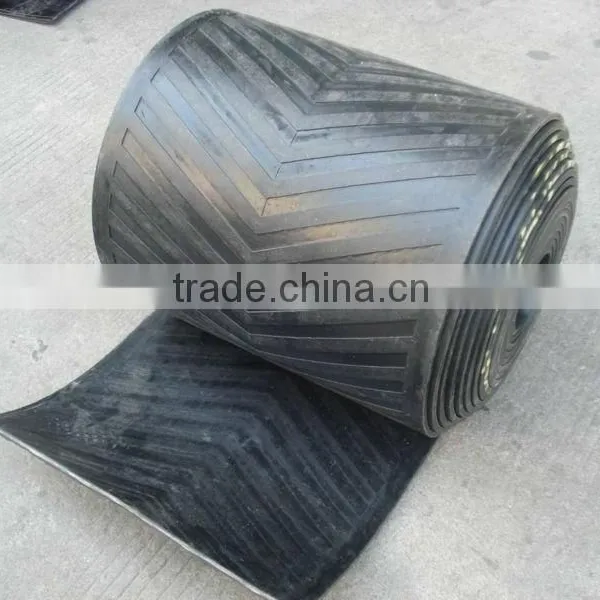

chevron conveyor belt



Configuration:

 Conveyor belts with a smooth carrying surface are useful for conveying of packed and unpacked material up to the angle of inclination 22 0 as an upper limit.
CHEVRON belts are the right belts to meet your requirements when higher angles of inclination are required.For this purpose, We has developed high-performance and high-quality Chevron and High-Chevron conveyor belts. Their advantages are long service life and flexibility due to homogeneous Chevron profiles which are vulcanised together with a base belt.





Application:





Technical standards:

GB/T7984-2001, GB/T10822-2003, DIN22102, AS1332,JISK6322, etc.

Specifiction/strength:

160N/mm-----3150N/mm

Width:

300mm---2000mm

The physical and mechanical properties:

1. The physical and mechanical properties of coverffig layer: please refer to the physical and mechanical properties of the common conveyer belt.
2. Tensile property of through thickness:
a. The longitudinal tensile strength is not lower than the following nominal value:
315 400 500 600 630 800 900 1000N/mm
b. The through thickness elongation rate of the belt should not less than rate of trough thickness of the belt should no more than 4%.
c. Straightness: no more than 25mm.
d.parameters:



Standards		Cover Rubber			Adhesion
		Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply
DIN 22102		Mpa	%	mm3	N/mm	N/mm
					(<=1.5mm)	(>1.5mm)
DIN 22102-Z		15	350	250	3.5	4.5
DIN 22102-W		18	400	90	3.5	4.5
DIN 22102-Y		20	400	150	3.5	4.5
DIN 22102-X		25	450	120	3.5	4.5
Standards	Cover Rubber			Adhesion
	Tensile StrengTD	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
AS 1332	Mpa	%	mm3	N/mm	N/mm	N/mm
				(<=1.9mm)	(>1.9mm)
AS 1332-N17	17	400	200	4	4.8	6
AS 1332-M24	24	450	125	4	4.8	6
Standards	Cover Rubber			Adhesion
	Tensile StrengTD	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
RMA	Mpa	%	mm3	N/mm	N/mm	N/mm
				(<=1.6mm)	(>1.6mm)
RMA-I	17	400		3	4.4	4
RMA-II	14	400		3	4.4	4
Standards	Cover Rubber			Adhesion
	Tensile StrengTD	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
SANS 1173	Mpa	%	mm3	N/mm		N/mm
A	18	400	70	5		7
C	20	400	150	5		7
M	25	450	120	5		7
N	17	400	150	5		7



Fabric specs	Ply thickness (mm/P)	N/mm					Cover thickness
		Strength series
		2 ply	3 ply	4 ply	5 ply	6 ply	Upper	Bottom
EP-80	0.8	160	240	320	400	480	2.0~8	0~4.5
EP-125	0.85	250	375	500	625	750
EP-150	0.9	300	450	600	750	900
EP-160	0.9	320	480	640	800	960
EP-200	1.05	400	600	800	1000	1200
EP-250	1.25	500	750	1000	1250	1500
EP-300	1.35	600	900	1200	1500	1800
EP-350	1.5	-	1050	1400	1750	2100
EP-400	1.8	-	-	1600	2000	2400
EP-500	2	-	-	2000	2500	3000
