superfine powder grinding machine
fluidized bed air jet mill pulverizer
features:

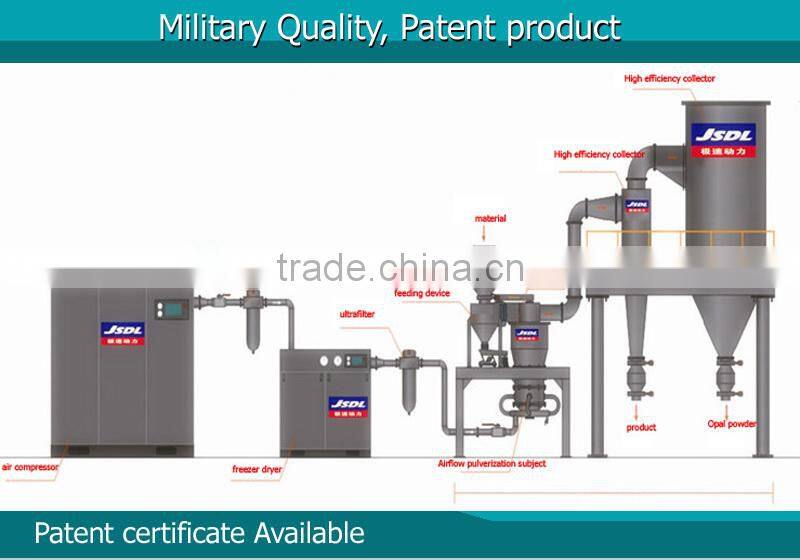

The compressed air after freezing, filtering, drying, through the nozzle formed supersonic airflow into the crushing chamber, let the raw material into fluidization, accelerated material be confluence in the whole nozzle jet stream, produced strong collision, friction, shear then achieve particles ultrafine grinding. Crushed material will be transport to the impeller grade area by rising gas, via grading wheel of centrifugal force and air pumping force, to achieve the separation of powder and coarse powder according to its own gravity to return the crushing chamber to re-crushing, qualified powder along with air flow into the cyclone collector, fine dust collected by the bag dust removal device, the purified gas will be induced by draft fan.
characteristics of jet mill:
1 particle acceleration technology breakthrough, greatly improving the crushing efficiency, reduce energy consumption
2 narrow particle size distribution and no large particles
3 materials collide with each other for grinding, wear small, almost no iron pollution
4 in the grinding process, due to the rapid expansion of the air flow and air temperature is reduced, processing and also suitable for heat sensitive materials with low melting point.
5 can perform several kinds of material mixing and crushing
6 Compact structure, composite structure, variable, multi use of one machine
7 operations in sealed negative pressure, no environmental pollution
8 easy to operate, the noise is small (less than 85Dba)
Technical parameters:
Model |
gas consumption |
max feed size
|
Discharging size |
Produced capacity |
installed power |
|
JSDL-LHC6 |
1m3/min |
<3mm |
1-100um |
0.4-5kg/h |
6-8kw |
|
JSDL-LHC18 |
3 m3/min |
<3mm |
1-100um |
5-50kg/h |
20-27ke |
|
JSDL-LHC36 |
6 m3/min |
<3mm |
1-100um |
8-200kg/h |
25-48kw |
|
JSDL-LHC120 |
20 m3/min |
<3mm |
1-100um |
60-800kg/h |
100-150kw |
|
JSDL-LHC240 |
40 m3/min |
<3mm |
1-100um |
80-1000kg/h |
200-300kw |
|
1. we offer custom service, according to your requirment we cna design the special jet mill .
2.offer design paper.
3. engineer directly guidance.
4. 1 year warranty.
Chengdu Our Trading Co.,Ltd is a trade and industry integrated company which established in 2008 with abundant exporting experience. With the company developed, we have 2 factories, one is located in Chengdu and another is in Mianyang.
Our main products are micronizer jet mill, micronizer impact mill, air classifier, inter gas protective equipment etc.
