Product Details
| Condition | New | Type | Pulverizer | |
| Product Type | Other, medicine chemical | Place of Origin | Sichuan, China | |
| Brand Name | jsdl | Model Number | jsdl-cjm | |
| Voltage | 380V, 220V, 415V | Power(W) | 6-160KW | |
| Dimension(L*W*H) | customized | Weight | different models different weight | |
| Certification | CE,ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JSDL Patent Grinder impact pulverizer graphite mill
Working principle:
impact pulverizer is adopting The high-speed rotation body's hammer, vane, barred body to impact the crushed materials, with help of the direct impact of the materials in the rotation body,high –speed impact of the high-speed materials ,shear grinding from the rotaion body and stator or the wall pressure, to achieve the prupose of ultrafine crushing for the materials.
Application:
apply Ultra-fine grinding process of soft objects whose Moh's hardness is under 3.5
Characteristics of the equipment:
1, the crushed size range is finer than the normal equiement, High speed impact mill machinery is built in the Efficient turbine classifier
2, can eject the standard fine powder on time to avoid overfine, can produce the product with Defect distribution steep,the product fineness is adjustable d97=10~74um
3. The crushing chamber is equipped with automatic slag discharge device which can eject the Hard grinding particles and impurities itselft.
4, can scatter the united materials
5, Mass flow of air means the cooling grinding,Can be used for heat sensitive material processing ,No accumulation problem
6, Totally Closed negative pressure operation,No dust pollution
technical parameters:
model | Max feed size | discharging size | production capacity
| Installed power |
JSDL-CJM66 | <2-5mm | 1-100um | 60-300kg/h | 10-18kw |
JSDL-CJM132 | <2-5mm | 1-100um | 250-800kg/h | 15-37kw |
JSDL-CJM180 | <2-5mm | 1-100um | 450-1000kg/h | 25-54kw |
JSDL-CJM330 | <2-5mm | 1-100um | 850-2000kg/h | 35-86kw |
JSDL-CJM660 | <2-5mm | 1-100um | 2100-4500kg/h | 60-182kw |
JSDL-CJM1500 | <2-5mm | 1-100um | 3100-8000kg/h | 120-360kw |

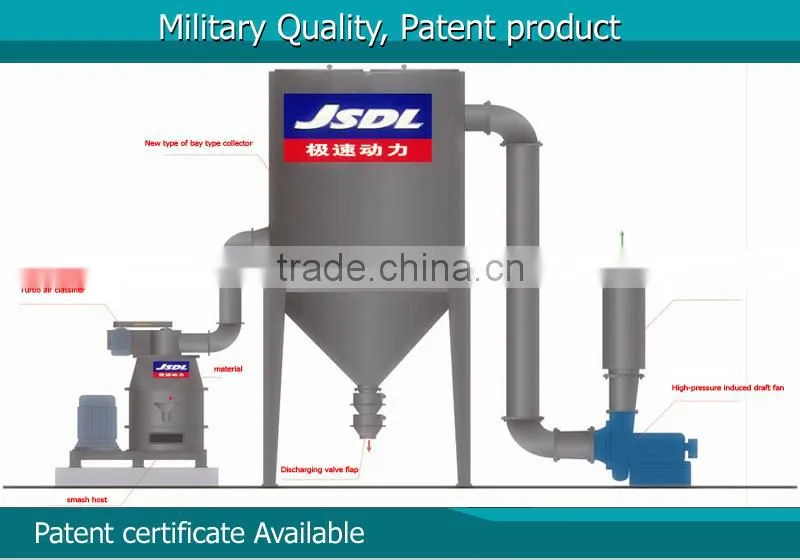

Main accessory :
Chengdu Our Trading Co.,Ltd is a trade and industry integrated company which established in 2008 with abundant exporting experience. With the company developed, we have 2 factories, one is located in Chengdu and another is in Mianyang.
Our main products are micronizer jet mill, micronizer impact mill, air classifier, inter gas protective equipment etc.
Application of pulverator:
Processing materials in many fields, such as: health food raw material, herbal medicine, pesticide, cosmetic, chemical materials, mining materials, metallurgy, waste resource and scientific research project etc.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.
SUPPORT
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support
JSDL has been largely adopting new technologies, new techniques and high-tech equipments. And JSDL also has strict and effective quality control system.
JSDL insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
