Main Info
This htpc/mini pc/desktop is an industrial pc based on Bay Trail platform. Because of its low power consumption and aluminum case, this mini pc is designed to be fanless. It features full HD 1080p playback using hardware acceleration and the ability of running dual independent displays through the HDMI, VGA interfaces.
This fanless industrial pc/htpc has 2* SO-DIMM2 slots for memory up to 8GB, 1*SATA, 1*mSATA, and expansion slots for SIM, mini PCIe. In addition, it also equipped with 1*USB3.0, 5*USB2.0, 2*COM, 3*LAN for wide applications. Its 190*150*29mm figure can be applied to any space-conservative environment. These combined features makes this mini pc an ideal for a range of applications like POS, digital signage, industrial automation, network security htpc and so on.Industrial PC Features
- Developed with low power Bay Trail Platform Celeron J1900(Celeron J1800 for option)
- 2*SO-DIMM slots for memory up to 8GB
- HD 1080P playback and dual independent displays via HDMI and VGA ports
- Rich I/O ports: 1*USB3.0, 5*USB2.0, 3*LAN, 2*COM
- Supports PXE, Wake On LAN, Auto Power On Function
- Wide expansions: 1*SATA, 1*SIM slot, 1*mSATA, 1*mini-PCIe
- Fanless industrial PC with a figure of 190 x 150 x 29mm
VBYT30-J1900 Fanless Industrial PC Parameters
| CPU | Celeron J1900(2.0GHz, quad core, TDP 10W) |
| System Memory | 2 x SO-DIMM slot supports DDR3L up to 8GB RAM |
| Ethernet | RTL8111F, 10Mbps/100Mbps/1000Mbps, 3 x LAN |
| Storage | 1x SATA 1x mSATA |
| Expansion | 1x SIM slot, 1x mini-PCIe( for WIFI or 3G network) |
| Power Supply | 1x DC_IN 12/19V |
| Display Interface | 1x VGA; 1x HDMI |
| USB | 5x USB2.0, 1x USB3.0 |
| Audio | ALC662 chip, Mic in, Line out |
| Wake on LAN | Yes |
| Enclosure Material | Aluminum Alloy |
| Cooling system | Fanless |
| Color | Black |
| Operating Temperature | -20~65 |
| Dimension | 150mm x190mm x 29mm |
| Weight | 860g |

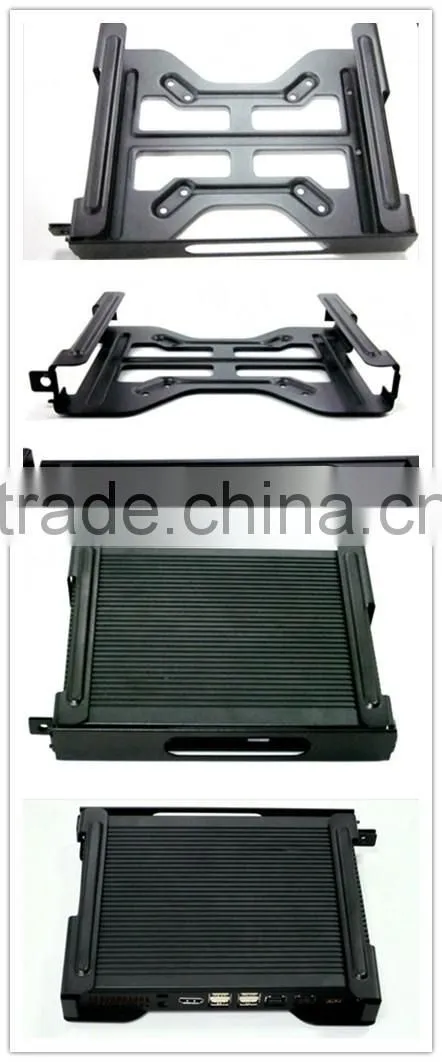

Here is the details for VESA support this pc.

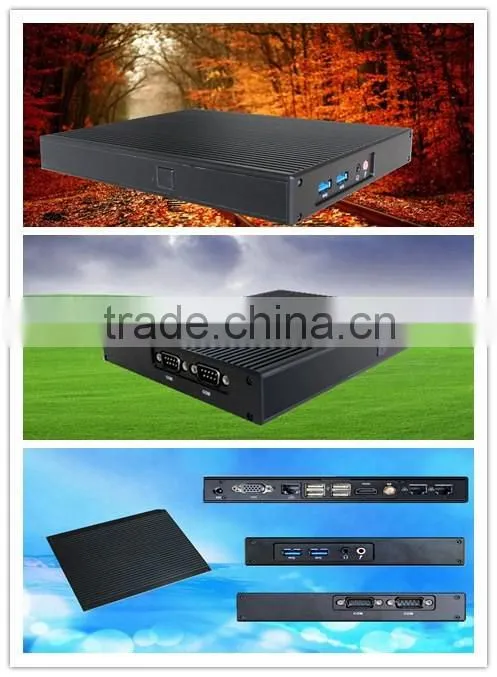

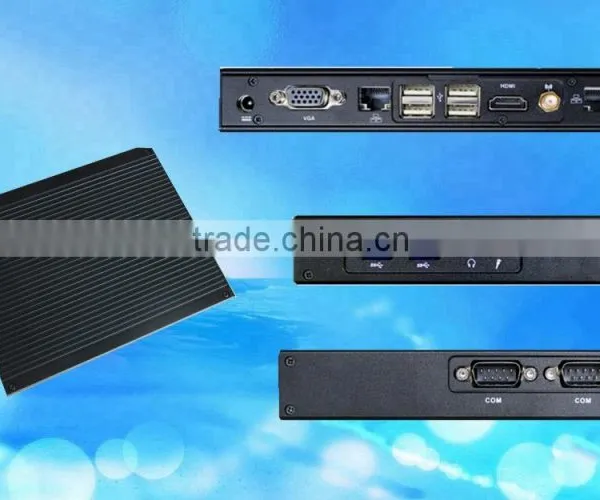

Industrial PC Ports
12pcs industrial PCs in one carton. Each industrial pc and its accessories are packed in different boxes.

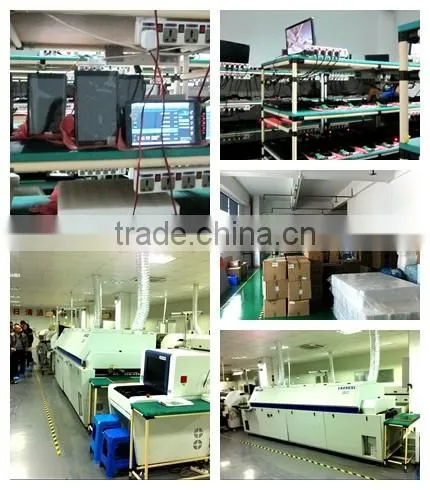

Founded in 2002, Shenzhen Maxtang Computer Company Limited (hereafter referred as Maxtang) is a pioneer immersed into low power consumption mini computer, industrial PC and mini-itx motherboard designing, researching and manufacturing. Equipped with dozens of experienced engineers in R&D department, Maxtang works closely with its customers to provide them a quicker time-to-market and best operating experience.
With its close cooperation with Giants like Intel, AMD, Nvidia and VIA, Maxtang has its own production lines and has launched an extensive portfolio ranging from mini itx motherboards, mini computers and industrial PCs under its own brand Maxtang. Its products are widely used in applications like home, office, school system, data communication, hotel, KTV, AIO, digital signage, banking, medical POS and so on.
Years of exprerience of making mini pc, industrial PC and mini itx motherboard enables Maxtang be quick to market requiremnets, and be flexible in designing and manufacturing.
